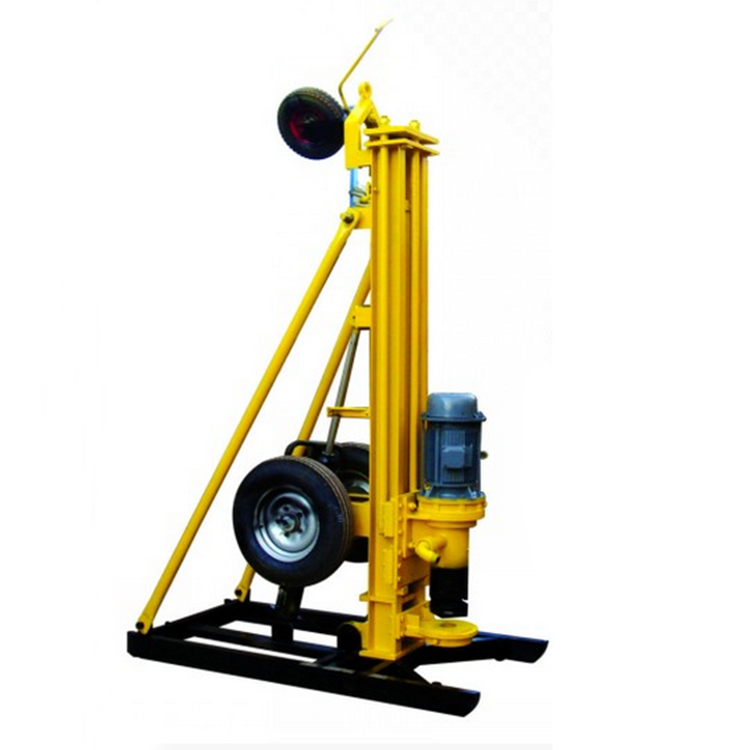

Click on the image to view the original image
- Applicable Industries:
- Construction works , Energy & Mining
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- Trailer Mounted Water Well Drilling Rig
- Usage:
- Water Well
- Voltage:
- 220v/380v
- Dimension(L*W*H):
- 1700*900*800mm
- Weight:
- 1300kg
- Certification:
- iso ce
- Warranty:
- 1 Year
- After-sales Service Provided:
- Online support
- Name:
- Drilling Machine
- Product name:
- Horizontal Directional Drilling
- Feature:
- pneumatic dirlling rig
- Drill rod length:
- 1.5m/piece
- Drilling method:
- Pneumatic Hammer Drilling
- Engine:
- Diesel Power
- Drilling Hole Diameter:
- Within 350mm
- Color:
- Red Yellow
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 12X13X15 cm
- Single gross weight:
- 68.0 kg
- Package Type:
- wooden case for 100-600m Portable Trailer Mounted Water Well Drilling Rig

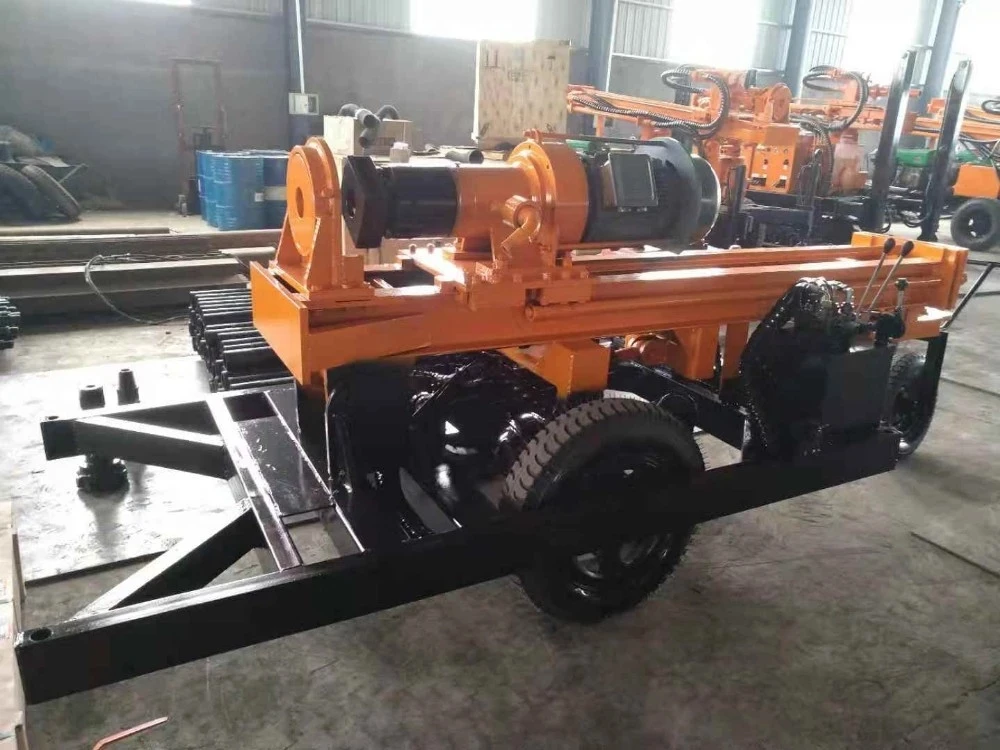

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 7 To be negotiated
100-600m Portable Trailer Mounted Water Well Drilling Rig - LUHENG
100-600m Portable Trailer Mounted Water Well Drilling Rig - LUHENG100-600m Portable Trailer Mounted Water Well Drilling Rig - LUHENG100-600m Portable Trailer Mounted Water Well Drilling Rig - LUHENG
Product Features
1.XY-3 drilling rig adopts CG140 model auto tranmission,has 10 rotation speeds and reasonable speed range,with eight forward rotation gears and two reverse rotation gears,high speed,strong stroke and wide scope of application.
2.Large engine power and two reverse rotation gears,can easily solve the drilling work accident.
3.The Operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
4.Equipped with normally closed hydraulic chuck,operation is flexible and reliable
5.Spindle and hoist can be operated separately.
6.Spindle has big inner diameter,able to use big hexagonal drilling rod.
Technology Parameters
pneumatic water well drilling rig technical parameters | |||
Model | HQZ150 | Electric motor power | 7.5kw |
Drilling diameter | 100-254mm | Drilling rotation speed | 0-62rpm |
Drilling depth | 150m | Air pressure | 0.8-2.1Mpa |
Drilling direction | 45-90° to the ground | Gas consumption | 14.5L/min |
One-time advance length | 1500mm | Total weight | 1300KG |
The real details photo
100-600m Portable Trailer Mounted Water Well Drilling Rig
please contact us for packing, detailed image and discount of water well drilling rig
