concrete leveling machine vibrating beam concrete vibratory truss screed price
concrete leveling machine vibrating beam concrete vibratory truss screed price
Product introduction
Every half a meter as a specification,when customer who mend a road that place the order.
please choice the machine that is greater 0.5 meters’ width than construction,such as:If the road width is 10
meters,then you should to order the machine that is 10.5 meters.
² High strength and light weight aluminum truss, reducing intensity of labor
² Fast connect system for assembly without special tools by one person.
² One side winches for one person operation
² Available length: 4-18 meters
Technology Parameters
| Type | RLH55X(≤)5500mm | RLH90X(≤)8500mm | RLH130X(≥)9000mm |
| Compaction | |||
| Nominal amplitude | 0.6mm | ||
| Vibrating frequency | 70Hz | ||
| Exciting force | 11kN/(≤)2000mm | ||
| Engine | |||
| Model | HONDA GX160 | HONDA GX270 | HONDA GX390 |
| Type | Gasoline engine,air cooled, 4stroke, OHV, single cylinder | ||
| Power | 5.5hp/3600rpm | 9.0hp/3600rpm | 13.0hp/3600rpm |
| Fuel tank volume | 3.6L | 6L | 6.5L |
| Lubricant L | 0.6L | 1.1L | |
| Fuel consumption | 313g/kWh | ||
| Dimension | |||
| 2m linker | 405mm×2000mm | ||
| 1m single linker | 405mm×1000mm | ||
| 0.5m single linker | 405mm×250mm | ||
| Note, The chosen length of machine should be 500mm longer than real construction width. | |||

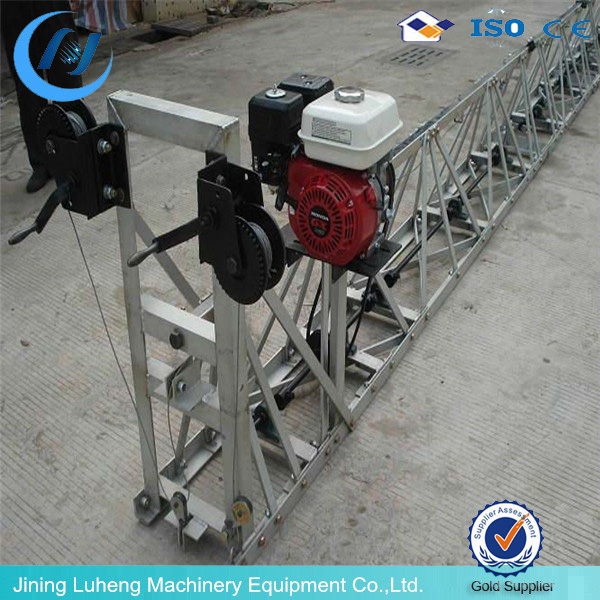

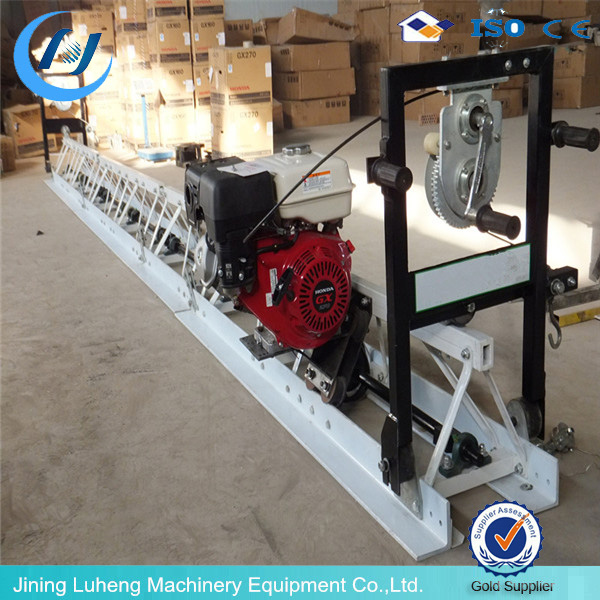

The real details photo
