S Valve Small pumpcrete used for Concrete Conveying Concrete Pump (Skype:LH.Cici)
S Valve Small pumpcrete used for Concrete Conveying Concrete Pump (Skype:LH.Cici)
Product Instruction

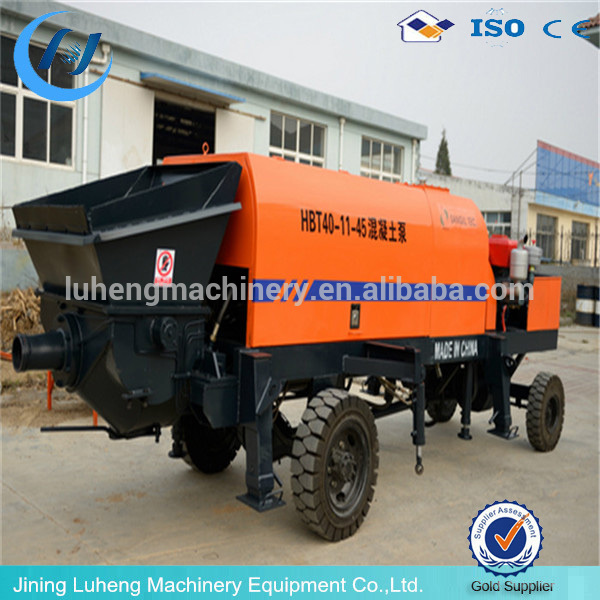

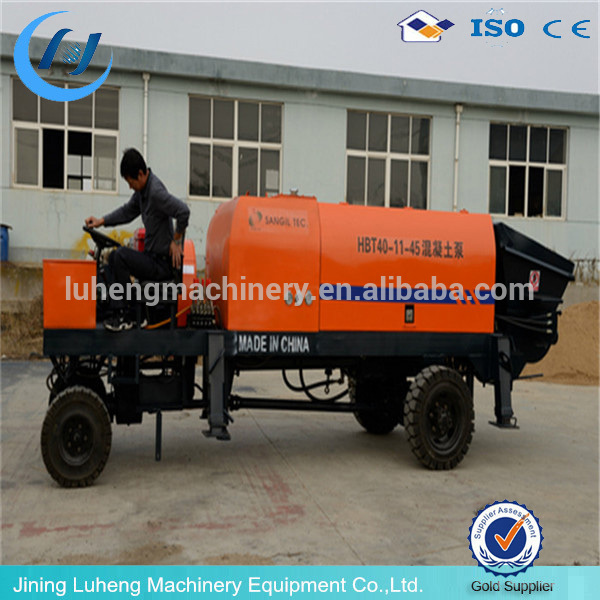

Brief introduction of Made in China electric concrete mixer pump HBT40
HBT40 mobile portable concrete pump series are excellent modernized concrete machinery developed with aid of advanced technology. They are high tech concrete machine which are incorportated with international advanced technology and experiences in designing to replace the traditional way to lift the concrete by labor force.they adopt the diesel engine drive and motor drive S valve pump and gate valve pump with excellent techinical performance, high standard configuration and high reliability
Technology:
- Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation
- Plunger pump with constant power, to ensure the efficiency of main engine
- Good sealing S-valve, installed with floating wear resistant ring
- High-quality wear resistant alloy components for long service-life
- High delivery pressure for demand of high-rise and long distance projects
- Air cooling system, without dependence of external water
- PLC system to ensure best control performance
- With re-pumping function to smooth construction of better accessibility
- Equipped with wired remote controller, easy to operate
Technology Parameters
Model No./Concrete pump | HBT40-11RSD |
Max. theoretical concrete output(m³/h) | Low pressure 48 /high pressure 23 |
Max. theoretical concrete pumping pressure(Mpa) | Low pressure 5.3 /high pressure 11 |
Theoretical vertical conveying height(m) | 150 |
Theoretical level transmission distance(m) | 400 |
Allowing the concrete slump(mm) | 100-190 |
Max. Aggregate particles(mm) | 40 |
Hopper volume(m³) | 0.5 |
Filling height(mm) | 1100 |
Concrete cylinder diameter × stroke(mm) | Φ180×1800 |
Main oil cylinder diameter(mm) | Φ100 |
Max stroke(mm) | 1800 |
Dynamic brand | Diesel engine |
Dynamic model | R4105ZD2 |
Rated power(kw) | 37 |
Fuel consumption(g/h.kw) | 227 |
Hydraulic system | Double circuit opening system |
Brand of main pump | Kavasaki |
Discharge of main pump(ml) | 112 |
Max. hydraulic system pressure(Mpa) | 25 |
Hydraulic oil tank volume(L) | 320 |
The radiator flow(L/min) | Air cooling system |
Electric control | PLC |
Concrete tube conveying diameter(mm) | Φ150/Φ133 |
Max. towing speed(km/h) | 15 |
Overall dimension(L×W×H)(mm) | 4850×1670×2070 |
Total weight(kg) | 3360 |
Hydraulic pump type | Ram pump |
