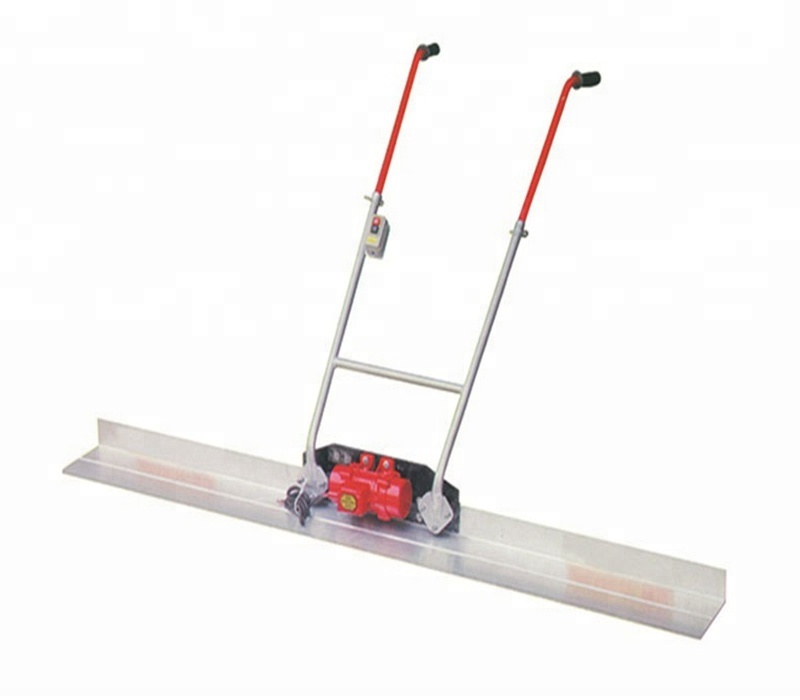

Surface finishing concrete screed 4 stroke Gas engine 10' tamper blade

Click on the image to view the original image

Product：	views：10Surface finishing concrete screed 4 stroke Gas engine 10' tamper blade
Branch：	LUHENG
Type：	Air-cooled, 4-cycle, Gasoline, Honda GX35
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Power Source:: Gasoline

Power(W):: 1.2HP

Dimension(L*W*H):: 1300*920*920mm

After-sales Service Provided:: Online support, Engineers available to service machinery overseas

Warranty:: 1 Year

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: LUHENG

Voltage:: 220V 380V

Weight:: 25kg

Certification:: ISO CE

name:: vibratory concrete screed

Engine:: Flexible shaft

Type:: Air-cooled, 4-cycle, Gasoline, Honda GX35

Drive system (mm):: 2500

Dimension (mm):: L2500 X W1400 X H960

Max. output kw(hp):: 1.2/1.6

Max. speed (rpm):: 5200

Fuel tank (liter):: 0.65

Price:: factory price

Supply Ability

Supply Ability:: 1000 Set/Sets per Month Surface finishing concrete screed w/ Honda 4 stroke Gas engine 1

Packaging & Delivery

Packaging Details: wooden case Surface finishing concrete screed w/ Honda 4 stroke Gas engine 10' tamper blade

Port: QINGDAO

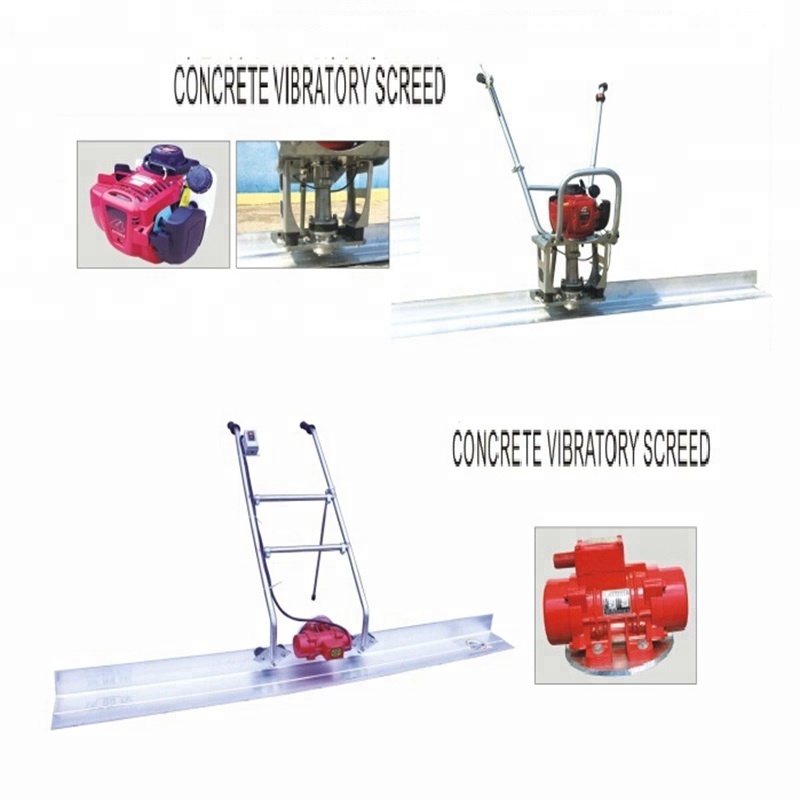

Surface finishing concrete screed w/ Honda 4 stroke Gas engine 10" tamper blade

china light automatic walk behind concrete laser screed machine for sale - LH china light automatic walk behind concrete laser screed machine for sale - LH china light automatic walk behind concrete laser screed machine for sale - LH

Product Introduction

A. Suitable for flat cement and concrete surface during construction building site androad

construction and so on.

B. High speed and efficiency,easy for take.Strickling and vibrating finish together.

C. Operator can adjust the impact force at any moment, manual accelerograph controls vibrating

frequency.

D. Concrete surface after vibration,no need to sprinkle dry cement when press polish.

It reduce the construction cost and repair frequency greatly.

E. Can avoid situation as concrete surface empty,knob and split completely which usually appear

after concrete surface constructing. Finish the firmly,solid and close-graind concrete surface.

Technology Parameters

Model	LH-25 Gasoline	LH-25 Electric
Weight (kg)	25	20
Dimension (mm)	L2500 X W1400 X H960	L2500 X W950 X H810
Drive system (mm)	2500	2500
Engine	Flexible shaft	/
Type	Air-cooled, 4-cycle, Gasoline, Honda GX35	380v/50hz/3p
Max. output kw(hp)	1.2 / (1.6)	0.25 / (0.33)
Max. speed (rpm)	5200	2800
Centrifugal force (n)	/	800
Fuel tank (liter)	0.65	/
