Home > Products > mixer concrete prices in China concrete mixer truck for sale

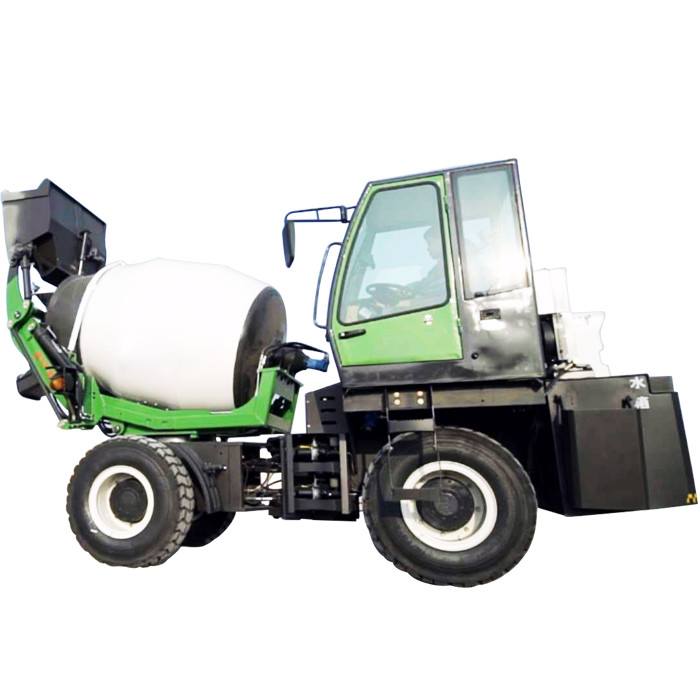

mixer concrete prices in China concrete mixer truck for sale

Click on the image to view the original image

Product：	views：8mixer concrete prices in China concrete mixer truck for sale
Branch：	LH
Size：	10X10X10 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Charging Capacity:: 2400L

Reclaiming capacity:: 2000L

Mixing Power:: 7.5kw*2

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Online support, Engineers available to service machinery overseas

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: LH

Motor Power:: 60KW

Speed of Mixing Drum:: 49-50m/s

Water Supply Mode:: hydraulic water driven pump, hydraulic water driven pump

Working Cycle Period:: 4 batches per hour

Discharge Way:: reversing drum

Outline Dimension:: 6.8M*2.4M*3.23M

Capacity:: 3 m3

TRANSMISSION:: 4 wheels drive,4 wheels steering

LOADING SHOVEL:: 400 liters

TANKS Water:: 2x300 liters

MIX:: Double mixing

COLOR:: YELLOW

Chassis:: Off-road

WEIGHT:: 7500 KGS

Packaging & Delivery

Selling Units:: Single item

Single package size:: 10X10X10 cm

Single gross weight:: 68.0 kg

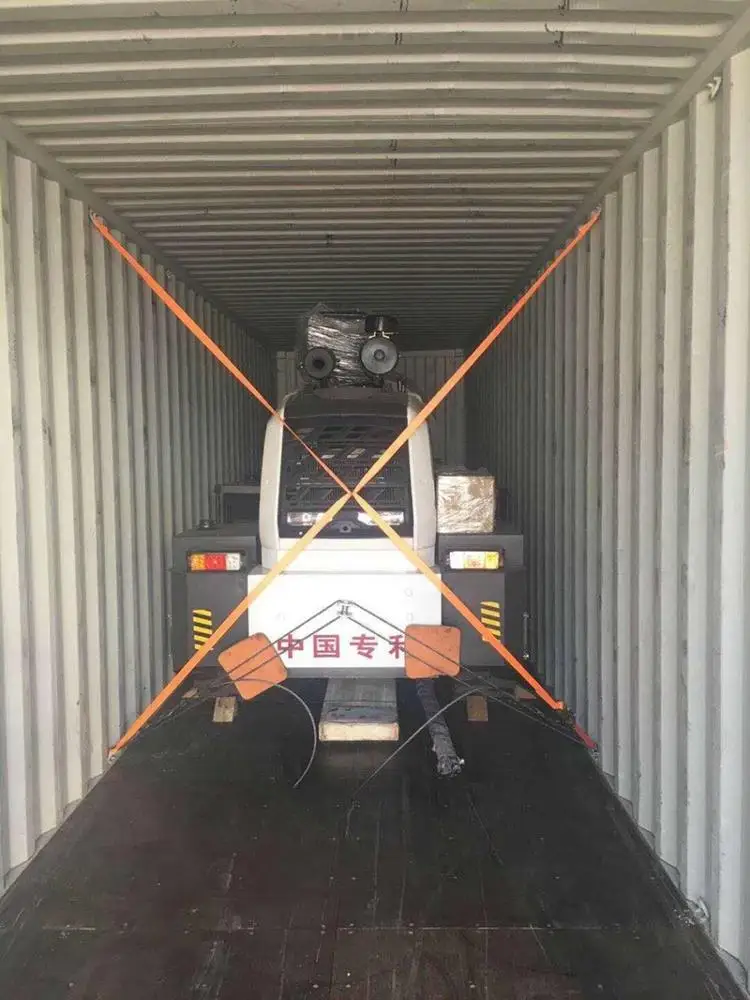

Package Type:: wooden case for concrete mixer truck

Picture Example:

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

mixer concrete prices in China concrete mixer truck for sale whatsapp+8613665375638

concrete mixer truck mini t

Product Introduction

1.The vehicle size is small, suitable for limited site and widely used in new rural construction, urban

construction ,tunne l ,airport ,seaport ,high-speed rail site and so on.

2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability3.Small capacity

mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles ,

improve thedriving safety.

3. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.

4.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.

Technology Parameters

MIXING UNIT	Drum capacity 4.3 m3. Concrete output: 3.0 m3 per batch. The mixing unit is slewing hydraulically through 300°
PRODUCTIVITY	up to 4 batches per hour
ENGINE	YUCHAI YC4D85 water-cooled, 4cylinders. Rated power 60KW/2200rpm .
TRANSMISSION	4 wheels drive,4 wheels steering.
SPEED	Working speed from 0 to 9 km/h, road transfer from 0 to 20 km/h.
DRIVING SEAT	Front cab on side of loading shovel. ROPS-FOPS type complete with double closing door.
HYDRAULIC SYSTEM	Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 1 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
JOYMIX	All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
LOADING SHOVEL	Capacity 400 liters, complete with hydraulic opening gate.
CHUTE	Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.
WATER SYSTEM:	Self-contained. Hydraulic driven water pump, water meter. High pressure water pump & washing gun(on request).
BRAKES:	Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
TYRES	10.00-20-16
ELECTRIC SYSTEM	24 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
TANKS	Water: 2x300 liters. Diesel: 100 liters. Hydraulic oil: 125 liters.
CHASSIS	Steel profile specially engineered for off-road operations.
WEIGHT	About Kg.7500, equally distributed on both axles
OVERALL DIMENSIONS	Long: 6.715M Width 2.28M High: 3.23M
SAFETY	Machine equipped with checking and block valves for maximum safety of the operator.
