Wet-mix shotcrete machine, robot arm shotcrete unit machine
Features:
1, folding intelligent robot for long-distance, large height wet spraying site;
2, inside and outside the double telescopic spray arm, boom and arm with automatic parallel function, easy to operate;
3, intelligent ejection operation, high injection accuracy, wide range jet, the small injection blind;
4, the accelerator system power inverter proportional control, the ratio of a wide range of additives, a small rebound;
5, piston pumping system, the injection quantity 4-30m3 / h, relatively high rotor efficiency concrete jet more than three times;
6, four-wheel drive, two-way drive, four-wheel steering;
7, imported wireless remote control, remote control distance of all spraying operation at any ratio of additive formulations, improve the working environment;
8, compact structure, small turning radius, range is limited space suitable for construction site;
9, dual power pumping system, pumping operations can choose the electric drive or diesel drive (optional)
Wet-mix shotcrete pump application:
The concrete spraying machine (spray robot or robot) is suitable for railway, highway tunnels, slope, water conservancy, hydropower tunnel and culvert, subway and a variety of military and civil engineering.
Wet-mix shotcrete pump parameter:
| Item | unit | HTXJS30-1 | HTXJS30-2 | Note | |
The sprayer capacity | m3/h | 4-30 | 4-30 | / | |
Max transfer pressure | Mpa | 10 | 10 | / | |
Distributing valve ways | —— | S tube valve | S tube valve | / | |
slump scale | mm | 150-230 | 150-230 | / | |
Metering pump | —— | ALH25 | ALH25 | ALBIN( sweden) | |
Diesel engine | —— | 6105 | 6105 | Can be customized | |
High pressure water pump | —— | BYB-1-11 | BYB-1-11 | From Italy | |
Transfer pump dia | mm | 80 | 80 | / | |
Size | mm | 8000×2400×3400 | 8000×2500×3400 | / | |
weight | kg | 16000 | 17800 | / | |
Max spraying height | m | 17 | 17 | / | |
Max working depth | m | 8 | 8 | / | |
Rated power | kw | 75 | 75 | / | |
Control distance | m | 100 | 100 | / | |
Transfer efficiency | m3/h | 4~30 | 4~30 | / | |
The system pressure | Mpa | 20 | 20 | / | |
Max transfer pressure | Mpa | 10 | 10 | / | |
Max particale size | mm | 20 | 20 | / | |
Diesel engine power | kw | 92 | 92 | / | |
Turn way | —— | 4-wheels hydraulic | 4-wheels hydraulic | / | |
Driving direction | —— | Two-direction | Two-direction | / | |
The wire length | m | 100 | 100 | / | |
The air compressor power | kw | / | 75 | / | |
The air compressor displacement | m3/min | / | 13 | / | |
The air compressor working pressure | MPa | / | 0.8 | / | |

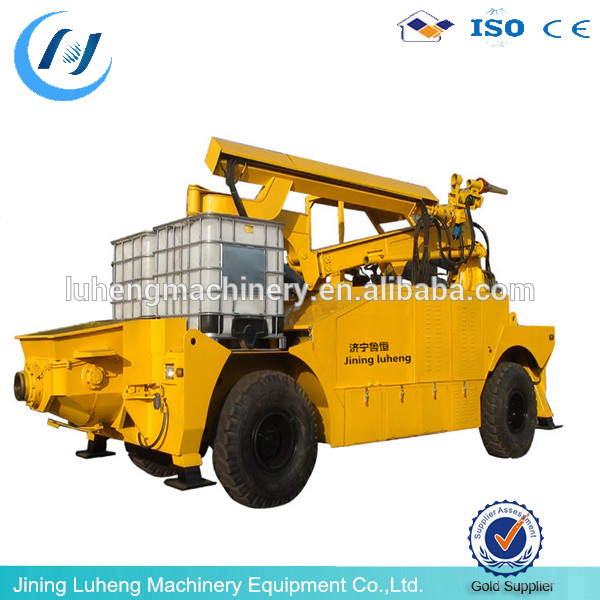

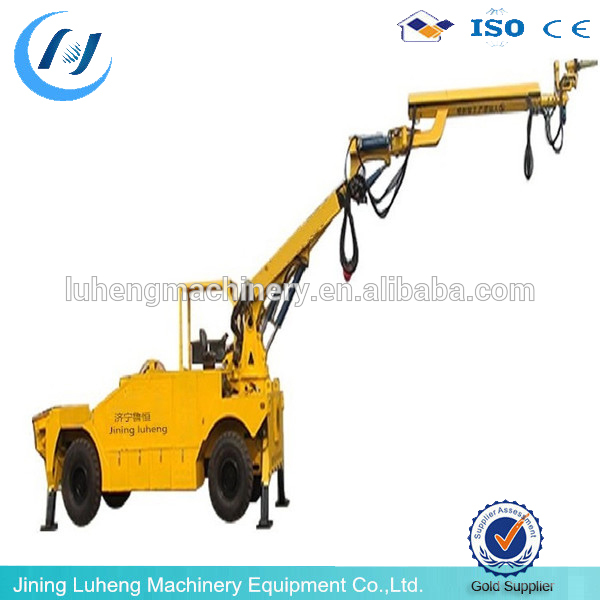

Wet-mix shotcrete pump photos:
