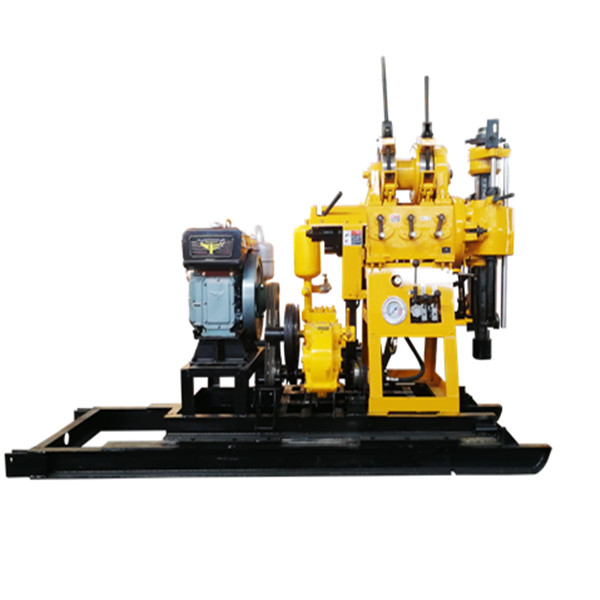

HW160 water well core drilling rig borehole drilling machine

Click on the image to view the original image

Product：	views：7HW160 water well core drilling rig borehole drilling machine
Branch：	Hengwang
Type：	Rotary Drilling Rig, water well drill rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Applicable Industries:: Hotels, Manufacturing Plant, Farms, Construction works

Condition:: New

Type:: Rotary Drilling Rig, water well drill rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: Hengwang

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 2500*1000*1300 mm

Weight:: 960KG

Certification:: ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service

Drilling depth:: 160m

Maximum open hole caliber:: 260mm

End hole caliber:: 75mm

Drill rod caliber:: 50mm

Drilling angle:: 90~75°

Drilling rig weight:: 560kg

Steel wire rope diameter:: 13mm

Steel wire rope cubic measure:: 27mm

Maximum pressure:: 1.2Mpa

Supply Ability

Supply Ability:: 1000 Set/Sets per Year

Packaging & Delivery

Packaging Details: Standard wooden case packing

Port: Qingdao/Shanghai

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	7	To be negotiated

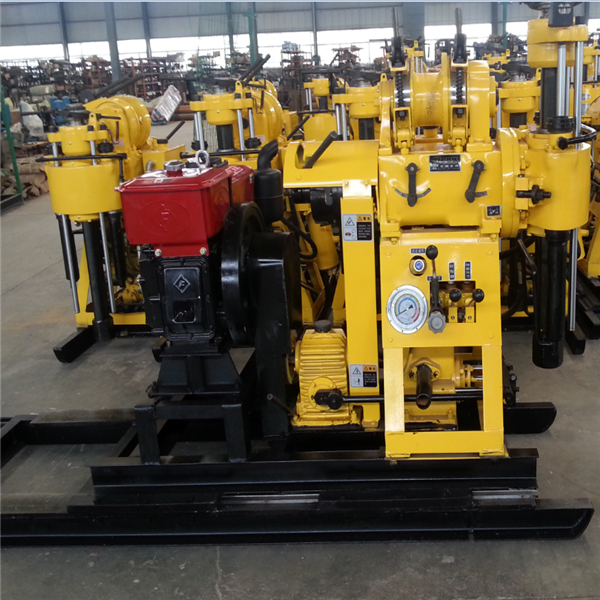

HW160 water well core drilling rig borehole drilling machine

Product Introduction

1.HW-160 water well drilling rig Features

a. the machine is equipped with crawler chassis device,easy to move with fast speed.

b. hydraulic oil pressure feed device,improve drilling defficiency.

c. pressure gauge display the condition of the bottom of the drill hole.

d. drill mast controlled by hydraulic cylinder,improve the efficiency diesel engine adopt the electric starter,to reduce the labor itensity.

2. HW-160 Water Well Drilling Rig Applications

HW-130 drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.

Technology Parameters

Model	HW-160
Drilling depth	160m
Maximum open hole caliber	260mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90~75°
Drilling rig weight (Exclude diesel engine)	560kg
Overall dimension	2500×1000×1300mm
Spindle
Spindle speed	142, 285, 570 r/min
Spindle stroke	450mm
Winch
Max. Lifting capacity with single rope	960kg
Lifting speed with single rope	0.41, 0.82, 1.64 m/s
Steel wire rope diameter	13mm
Steel wire rope cubic measure	27m
Mud pump
Type	Horizontal single-cylinder double-acting
Displacement (with diesel engine/electric motor)	95/77 L/min
Diesel engine	s1105 18HP
Electric motor	Y160M-4 11kw 1440r/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Water inlet caliber	30mm
Water outlet caliber	25mm
Triangle belt	B1575mm
