Mini garden tractor rotary tiller
Features:
1.Equipped with diesel engine,lower fuel consumption,stronger output power,less oil;
2.Compact structure,lighweight and easy operation;Apply for working in the mountains and hills.
3.Strong adaptability,multi-function,apply to rotary tilling both dry and paddy fields when equipped with different tillage blades.
Farm Tractor Plow Introduction:
1.Tiller can works for tilling fields, cultivating wastelands, ditching, and ridging in the greenhouse, vegetable garden, flower garden, orchard, paddy field and hillside.
2. Equipped with relevant machinery accessories, it can conduct many kinds of works like plough, spraying drug, cleaning grass, earthing up and transportation etc.
3. Most importantly, it has a flexible handlebar, which can be adjusted vertically within 24°and horizontally within 180° in 5 gears. Both the forward tilling and backward tilling are available,
4, Both gasoline engine and diesel engine are ok.
5. Tension belt type clutch can make the work easier.
Farm Tractor Plow Parameter:
| Model | LH150 | |
| Tiller | Tilling Scope(mm) | 1050-1200 |
| Tilling Depth(mm) | 150-200 | |
| Working Square Meters/hour | 700m2/h | |
| Fuel Oil Use(g/kw.h) | 3600rpm(280) | |
| Drive Model | Gear | |
| Gear Shifting | Reverse/Neutral/Slow/Fast | |
| Tilling Blades | OU 1 Knife | |
| Walking wheel | 350-6 | |
| Engine | Engine Model | 170F/E |
| Max Output(KW)/(r/min) | 3.7kW/3600rpm | |
| Starting System | Recoil Start | |
| Fuel Tank Capacity(L) | 2.5L | |
| Engine Oil Capacity(L) | 0.8L | |
| Package | Net Weight | 100kg |
| Assembly Dimensions (mm) | 1680mm×1200mm×830mm | |
| Packing Dimension (mm) | 1070mm×560mm×880mm | |

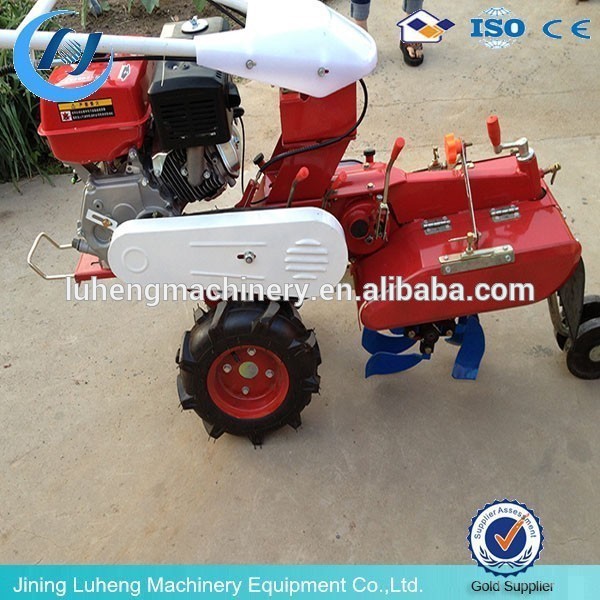

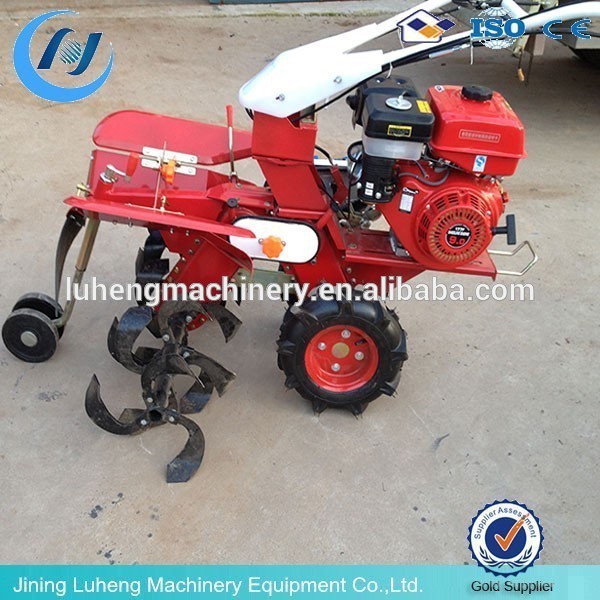

Farm Tractor Plow Pictures:
