- Piling Speed(m/min):
- 72r/min
- Efficiency:
- 98%
- After-sales Service Provided:
- Online support, Free spare parts
- Warranty:
- 1 Year
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- spiral pile driver
- Weight:
- 5000kgs
- Dimension(L*W*H):
- 4670*2210*2690mm
- Certification:
- ISO
- Output torque:
- 26000
- Crowler plate width:
- 260mm
- Highest pole:
- 4370mm
- Max drilling depth:
- 15m
- The main pump speed:
- 2200-2400L/min
- The main pump pressure:
- 25Mpa
- The main valve flow:
- 100L/min
- Piling Speed:
- 3.2M/min
- Type:
- Hydrualic
- Name:
- spiral crawler Pile Driver
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1X1X1 cm
- Single gross weight:
- 68.0 kg
- Package Type:
- regular packaging for spiral crawler pile driver
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 7 To be negotiated
Max depth 6m mini long spiral pile driver crawler drilling machine
Max depth 6m mini pile driver tractor mounded pole erection machine - LH Max depth 6m mini pile driver tractor mounded pole erection machine - LH Max depth 6m mini pile driver tractor mounded pole erection machine - LH
Product Introduction
55KW spiral pile driver crawler drilling machine for sale
The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
Advantages:
1 Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.
2 Parts for repairs are readily available.
3 Interchangeablity of parts is supported by all models.
4 Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.
5 Supplying power and fuel to these system is very feasible at construction sites.
Technology Parameters
| roted power | 55kw |
| rated speed | 2400r/min |
| starting voltage | 24v |
| dimension size | 4370*2010*4290 |
| min ground interapzce | 380mm |
| track shoe width | 260mm |
| max upright rod height | 4370mm |
| drill diameter | 130-800mm |
| max drill depth | 3600mm |
| rod rotation speed | 71r/min |
| main pump rotation speed | 2000-2400l/min |
| main pump press | 20mpa |
| main valve flow | 100l/min |
| oil tank capacity | 200l |
| climb angle | 35 |
| max travel speed | 5km/h |

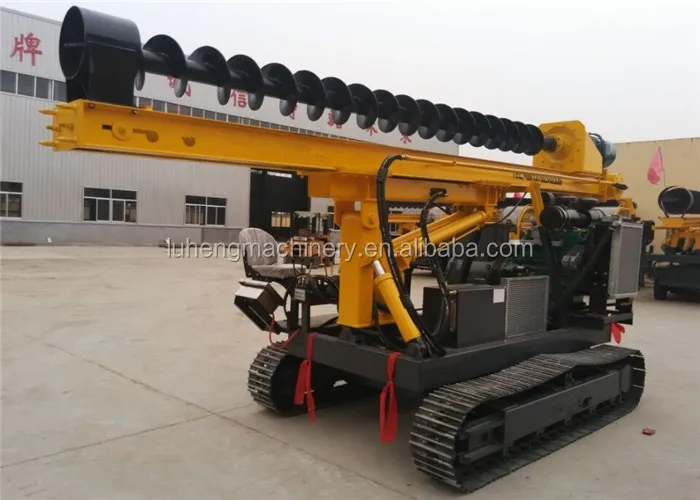

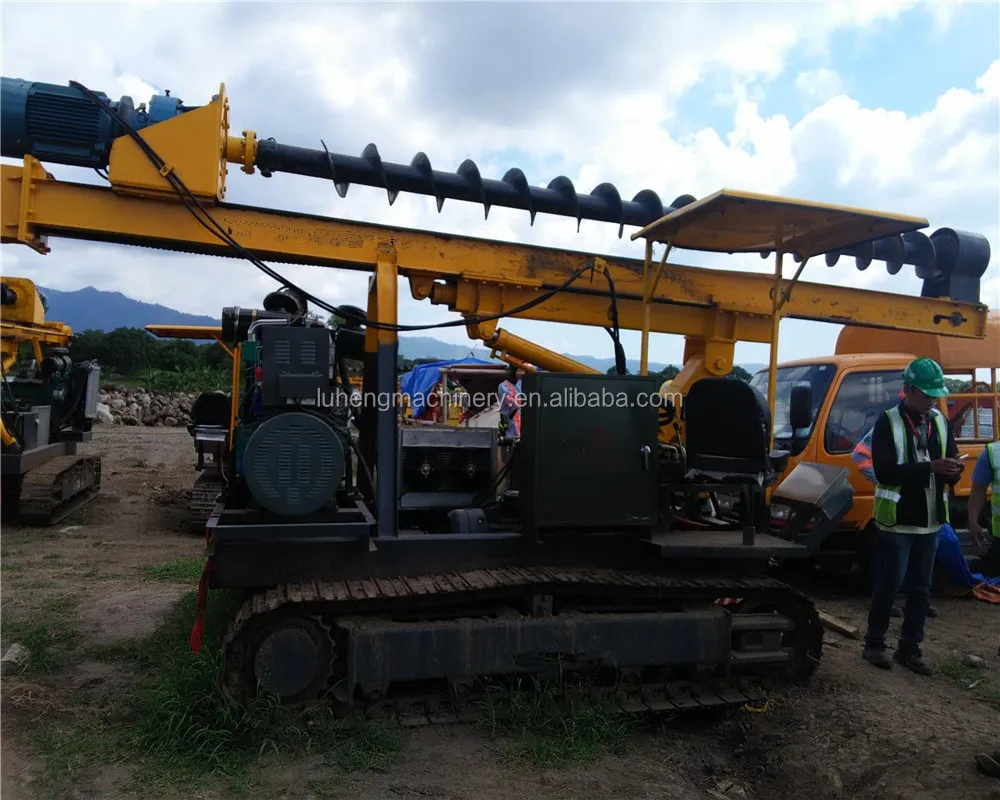

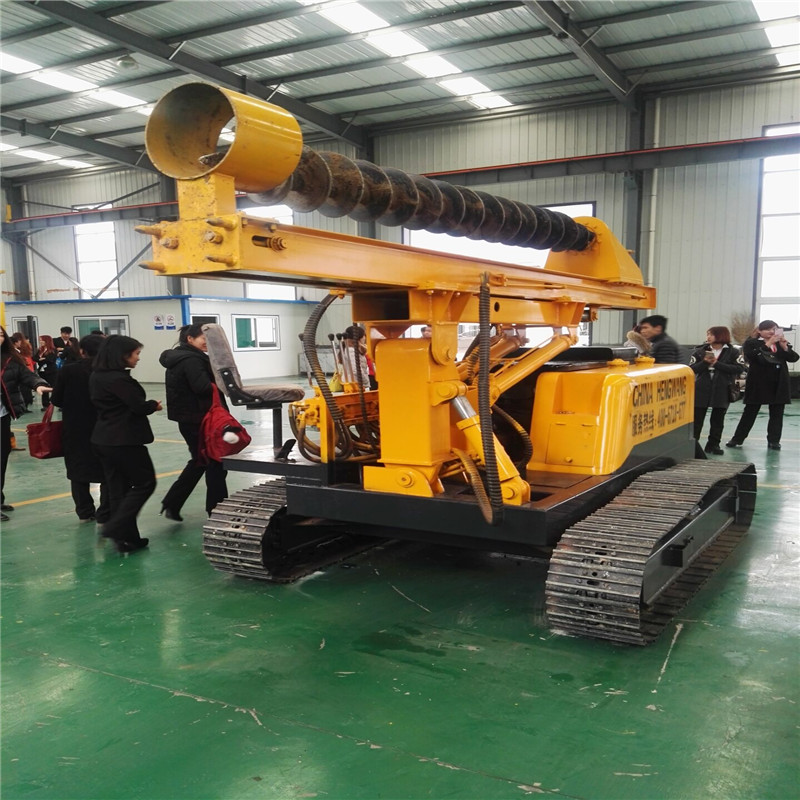

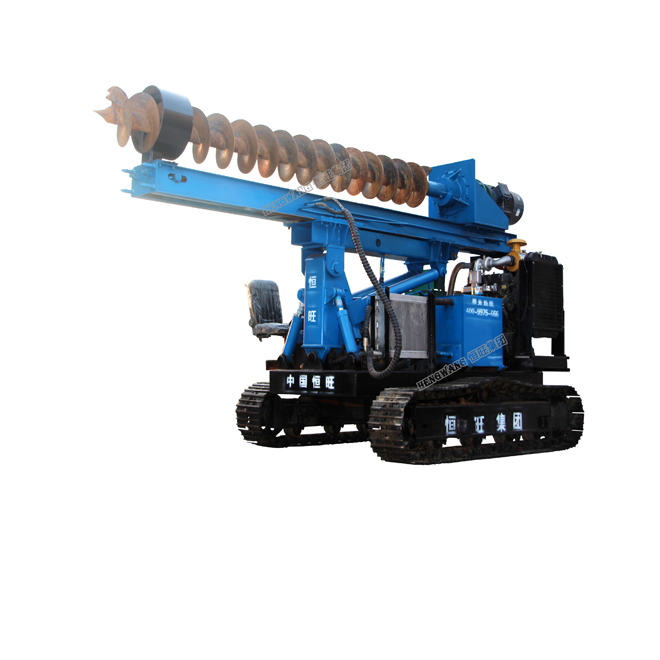

The real details photo
Max depth 6m mini long spiral pile driver crawler drilling machine
Max depth 6m mini long spiral pile driver crawler drilling machine
Max depth 6m mini long spiral pile driver crawler drilling machine
Max depth 6m mini long spiral pile driver crawler drilling machine
Max depth 6m mini long spiral pile driver crawler drilling machine
Good Cooperation
Transaction history
Quality Certificate
Contact informations
Max depth 6m mini long spiral pile driver crawler drilling machine
