- Piling Speed(m/min):
- 1800mm/min
- Efficiency:
- High Efficiency
- After-sales Service Provided:
- Video technical support, Overseas third-party support available
- Warranty:
- one year
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- LH
- Weight:
- 2500kgs
- Dimension(L*W*H):
- 2700*2600*2300mm
- Certification:
- ISO9001
- Product Name:
- Screw Pile driver
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 500X200X200 cm
- Single gross weight:
- 4000.0 kg

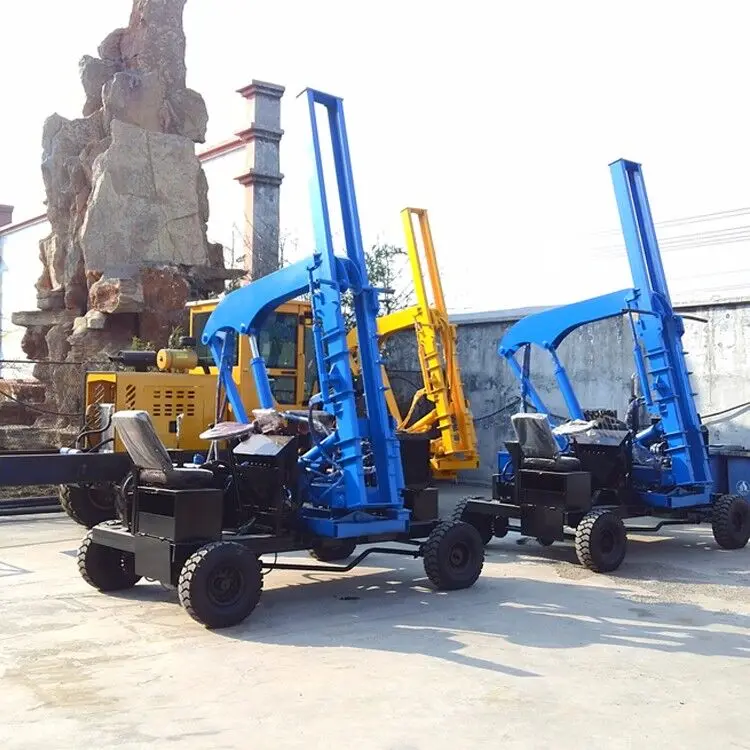

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 5 >5 Est. Time(days) 6 To be negotiated
Screw Pile driver
Features:
1. Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.
2. Parts for repairs are readily available.
3. Interchangeablity of parts is supported by all models.
4. Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.
5. Supplying power and fuel to these system is very feasible at construction sites.
Pile Driver details:
1 Pile Driver is composed of the chassis, guide rail, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control system, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency and a low price.
2 The tow bar is connected with the chassis. In using a tow truck or trailer to tow the machine to the work site, first it is needed to lay down the tow bar and disengage the clutch. The up and down, longitudinal and transverse shift, horizontal slide of the guide rail are controlled through hydraulic system.
3 It has a very famous Changchai brand diesel engine with electric starting equipped, has stable performance, simple operation and maintenance and a very long service life.
4 The control system is equipped with multidirectional control valves and centralized hydraulic control rods which make the operation simple and convenient.
5 It can install piles up to 3m (9.84’) in length, but on request the machine can be supplied with extension guide rail which can install piles up to 3.5m (11.48’) or even 4m (13.12’) long.
6 The pile drilling motor is hydraulically operated and the drill is pneumatically operated with an air compressor. The drilling equipment comprises of a hydraulic motor, connecting device, connecting rod, pneumatic percussion hammer and a drill bit.
7 The pile driving equipment operates hydraulically under variable horsepower engines and drills which can be accessorized for job specific functions in boring multi-diameter holes into earth, sand, gravel or other soft media as can be found in agricultural or rural environments. This equipment can be used for photovoltaic (PV), solar cell and panel installations. Deep tread patterned tires allow for maximum traction in all terrains.
8 As the pile driving, extracting and drilling equipment all share one chassis, it is the most economical investment for getting all three functions. You can install any accessory onto the chassis according to your working need.
Pile Driver parameter:
Product Name | Hydraulic Guardrail Machine Guardrail Post Driver |
Product Type | LH-280 |
Product Size | 3800mmX2200mmX3800mm |
Product Brand | LH |
Engine Power | 20KW |
Work Pressure | 16MPa |
Work Flue | 45-65ML/R |
Pulling Power | 25-30T |
Impact Frequecy | 10-15HZ |
Impact Pressure | 10-17MPA |
Weight | 2.5T |
Hammer Work Height | 700-2500MM |
Post Used for | U POST, C POST & ROUND POST |
Supply Ability | 1000sets per year |
Minimum Order Quantity | 1set |
Payment Terms | 100% T/T or western union or Alibaba |
Applications | widely used for highway post installation |
Delivery Time | Delivery the machine in 3 days after receiving the deposit |
Advantage | Simple operation, piling postioning, high precision |
Main Market: Russia, Spain,Malaysia, Myanmar, Singapore, Thailand, Philippines, Indonesia.,United Arab Emirates, Iraq, Brazil and Argentina | |

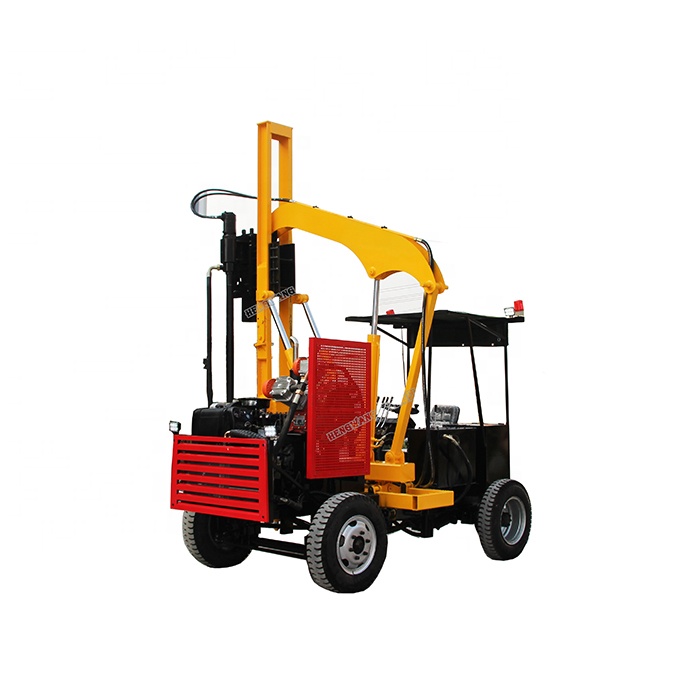

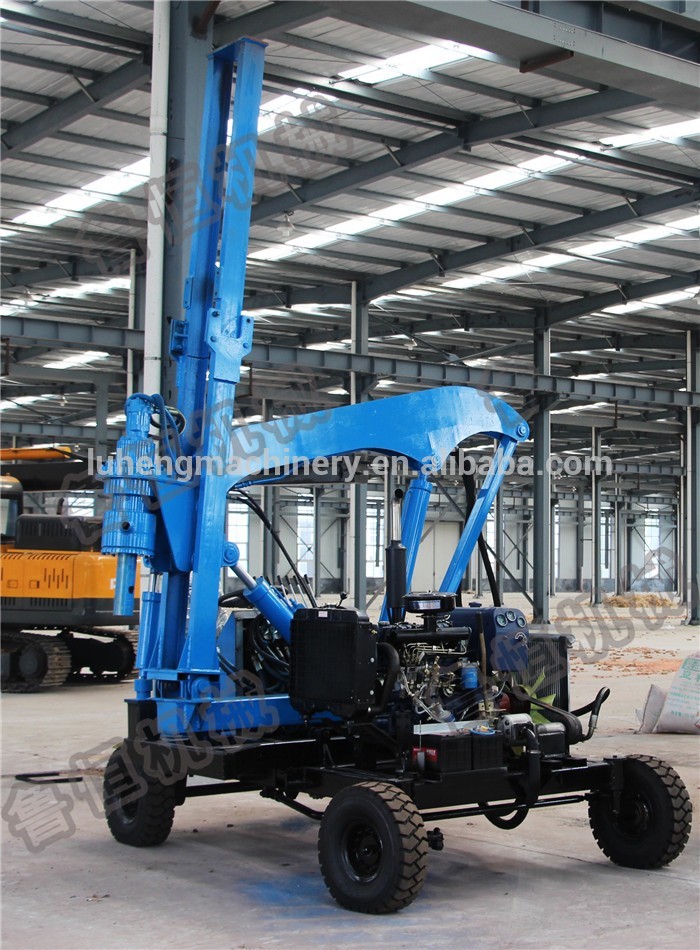

Pile Driver pictures:
