Home > Products > cement/concrete baking-free brick making machine

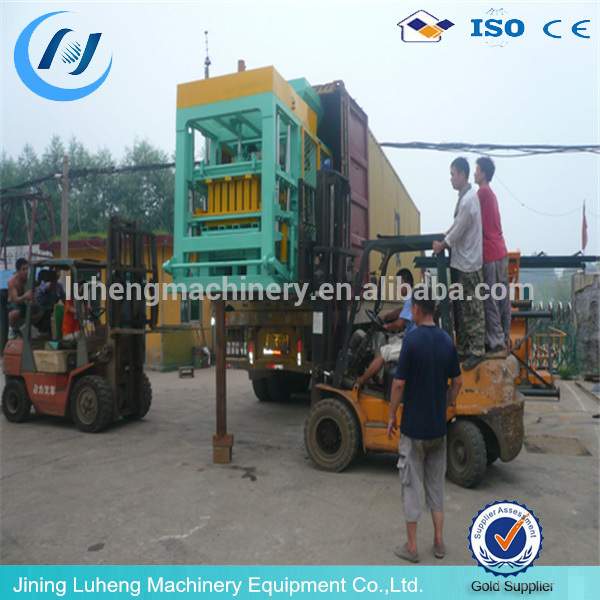

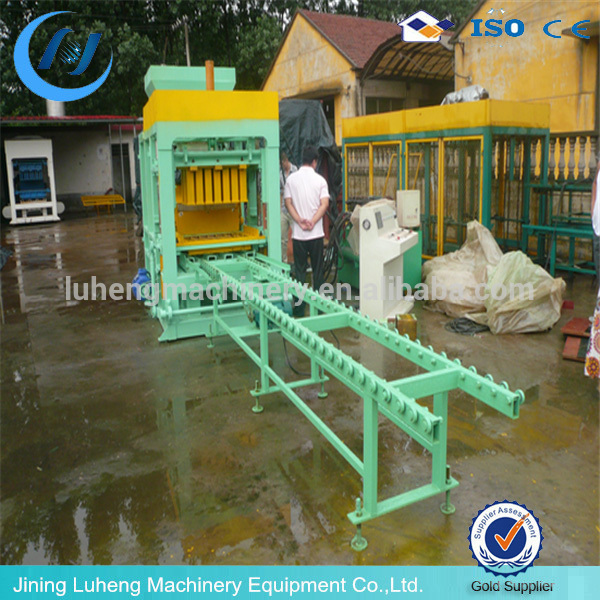

cement/concrete baking-free brick making machine

Click on the image to view the original image

Product：	views：8cement/concrete baking-free brick making machine
Branch：	Luheng
Type：	Hollow Block Making Machine
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Brick Raw Material:: Concrete

Capacity:: 4000-60000 Pieces/day

Type:: Hollow Block Making Machine

Power:: 9.6KW

Certification:: ISO9001:2008

Condition:: New

Processing:: Brick Production Line

Method:: Autoclaved Aerated Concrete

Automatic:: Yes

Place of Origin:: Shandong, China

Brand Name:: Luheng

Model Number:: QT10-15

Voltage:: 220V/240V/380V/440V

Dimension(L*W*H):: 1580*1100*2100mm

Type::: Hollow Block Making Machine

Production per Mould::: 4 pcs/mould (Standard Block: 400x200x200mm)

Cycle Time::: 35-40 seconds

Vibrating Frequency::: 2900 rolls/minute

Vibrating Force::: 35KN

Pallet Size::: 850x450x20mm

Gross Weight::: about 1.5T

Mixer model::: JS500 mixer

machine color::: as client requirement

Warranty::: One Year

Warranty:: 18 Months

After-sales Service Provided:: Overseas third-party support available

Supply Ability

Supply Ability:: 1000 Set/Sets per Year

Packaging & Delivery

Packaging Details: Fumigation-free wooden cases, steel plate cases, or as request.

Port: Qingdao/Shanghai

Lead Time:: Shipped in 3 days after payment

cement/concrete baking-free brick making machine

Product Instruction

brick making machine main features:

1)Not using the clay as raw material to destroy any field.

2)Making use of three industrial wastes to change wastes into valuables.

3)Not using fire to bake blocks and not building kiln to save the energy sources and fields.

4)No chimney to protect the environment and avoid pollution.

5)Production process is simple, they can be made everywhere .

6)Low investment and achieving much faster results, customers can profit in half a year after investing.

7)The block can be produced all around the year.

8)Good looking, construction convenient, low-floor real jigsaw puzzle, and the high buildings do filler and cheap.

9)Technical criteria is better than those of red brick and green brick.

Technology Parameters

Main Technical Specifications
Production per Mould:	4 pcs/mould (Standard Block: 400x200x200mm)
	26 pcs/mould (Solid Block: 240x115x53mm)
	10 pcs/mould (Interlock Paver: 225x112.5x60mm)
	5 pcs/mould (Hollow Brick: 400x150x200mm)
Cycle Time:	35-40 seconds
Production per Day (8 Working Hours):	Hollow Block (400x200x200mm): 2880 pcs
	Solid Block (240x115x53mm): 11600 pcs
	Interlock Paver (225x112.5x60mm): 6400 pcs
	Holland Brick (400x150x200mm): 3600 pcs
Vibrating Frequency:	2900 rolls/minute
Vibrating Force:	35KN
Motors Power:	9.6 KW
Machine Dimensions:	1580x1100x2100mm
Pallet Size:	850x450x20mm
Gross Weight:	about 1.5T
Raw Materials:	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products:	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:	widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
