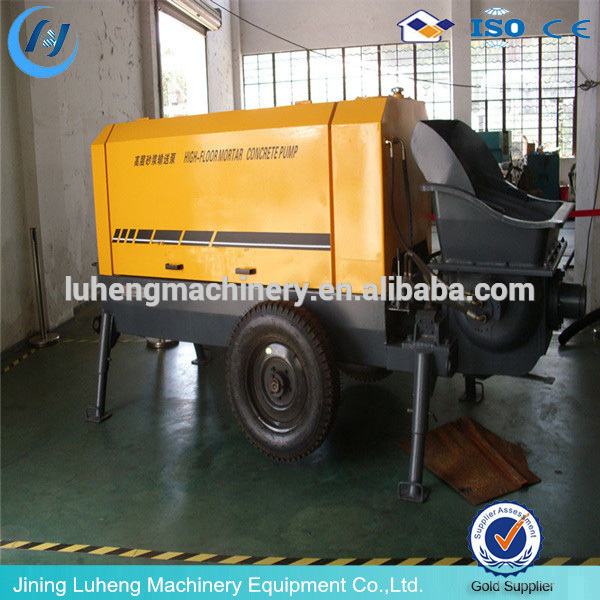

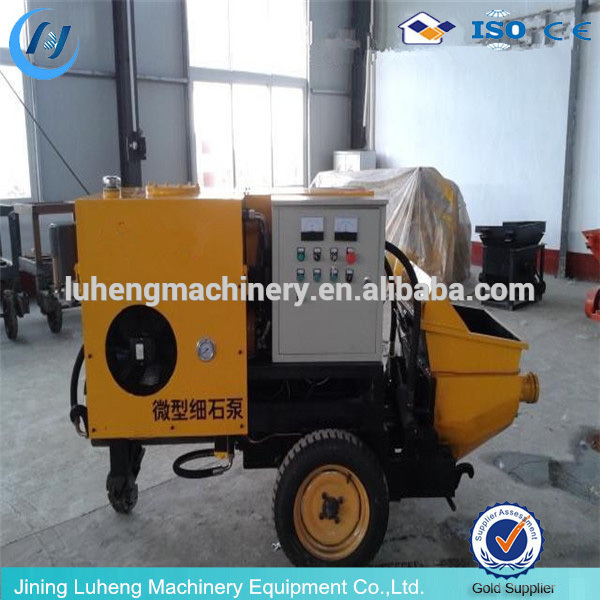

construction machinery concrete pumps , high quality movable mini concrete pump
construction machinery concrete pumps , high quality movable mini concrete pump
Product Introduction
1. Adopts advanced s tube valve commutation, can meet the needs of fine stone concrete conveying.
2. Glasses plates and cut ring adopts high hard wear-resistant alloy materials, make the life of the machine more longer.
3.High discharge pressure.It can meet the transportation requirements of high-rise building and long distance construction.
4. Hydraulic oil cooling adopts advanced forced air cooling heat dissipation system, no need to pick up water, easy to use.
5. Has the function of the pump, minimize any blockage.
6.Equipped with automatic centralized lubrication system, ensure the service life of the rotating part.
7. Electrical part adopts PLC control, which has the best handling characteristics.
8. The electrical box is equipped with wired remote control handle, easy to operation.
Technology Parameters
Model | -- | HW15-05-22 (piston) | HW20-08-33 (piston) | HW-04 (squeeze) |
Motor power | kw | 22 | 30 | 4 |
Maximum theoretical working pressure | Mpa | 5.3 | 8 | 5 |
Theoretical displacement | m³/h | 15 | 20 | 6 |
Maximum horizontal delivery distance | m | 200 | 350 | 180 |
Maximum vertical delivery distance | m | 80 | 140 | 180 |
Maximum grain size | mm | ≤20 | ≤25 | ≤6 |
Cylinder diameter and stroke | mm | Φ140×800 | Φ140×800 | Squeeze pipe Φ50×1400 |
Delivery hose diameter | mm | Φ80, Φ50 | Φ100,Φ80 | Φ38 |
Net weight | kg | 1580 | 2000 | 500 |
Dimension (L×W×H) | mm | 3400×1320×1480 | 4000×1500×1550 | 800×1100×1300 |
The real details photo
Good Cooperation Transaction history
Quality Certificate
Transport and shipping
