Home > Products > CMT-500 self loading concrete mixer truck for sale - LH

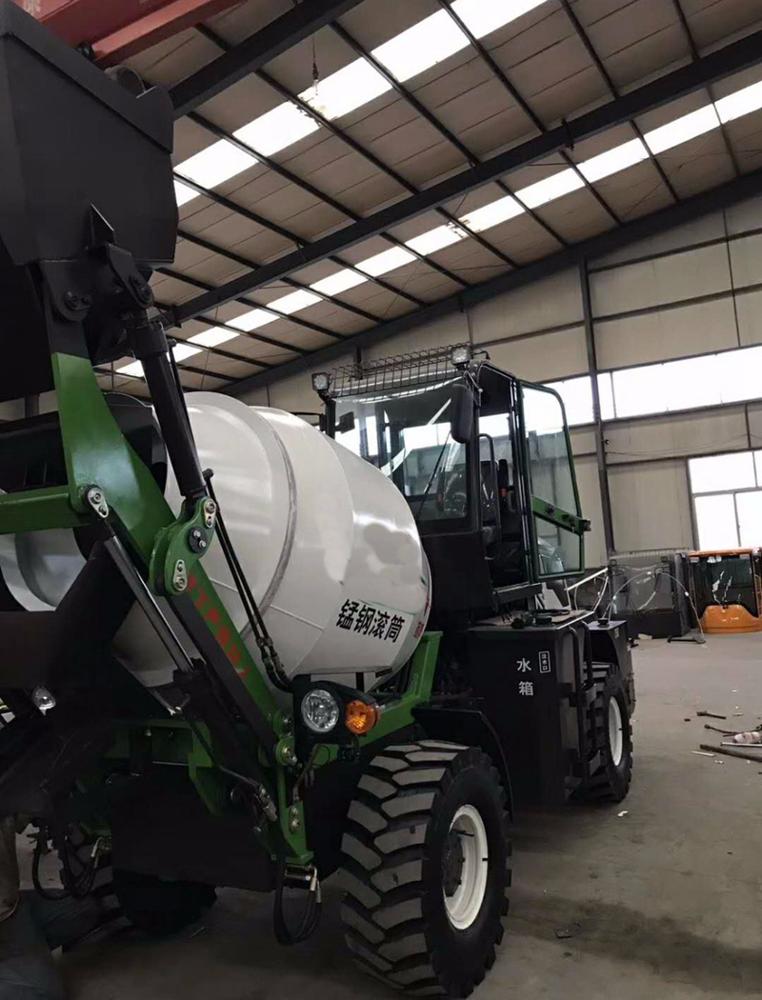

CMT-500 self loading concrete mixer truck for sale - LH

Click on the image to view the original image

Product：	views：9CMT-500 self loading concrete mixer truck for sale - LH
Branch：	LUHENG
Size：	50X40X30 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Power(W):: 82KW

Weight:: 7500KG

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: LUHENG

Dimension(L*W*H):: 7011x2441x3310

Certification:: ISO CE

Model:: mobile concrete mixer

Distance of Front:: 1905mm

Wheelbase:: 2155mm

speed:: 0~20KM/H

Min. Turning Radius:: 6.5m/R

Diesel Engine:: 4BTA3.9-C110

Rated Power/ rpm:: 82kW/2200rpm

Max. Torque/ rpm:: 460N.m/1400rpm

bores:: 102mm

Mame:: mobile concrete mixer

Packaging & Delivery

Selling Units:: Single item

Single package size:: 50X40X30 cm

Single gross weight:: 68.0 kg

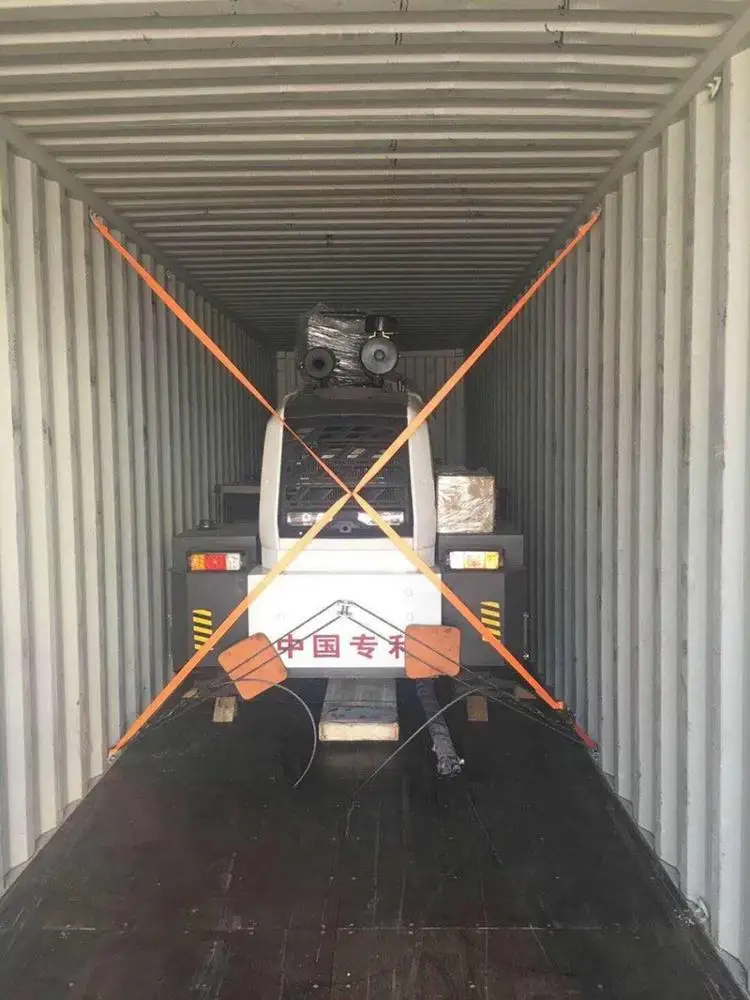

Package Type:: wooden case for mobile concrete mixer

Picture Example:

Lead Time:

Quantity(Set)	1 - 5	>5
Est. Time(days)	10	To be negotiated

CMT-500 self loading concrete mixer truck for sale - LH /whatsapp +8613665375638

concrete mixer truck mini t

Product Introduction

1.The vehicle size is small, suitable for limited site and widely used in new rural construction, urban

construction ,tunne l ,airport ,seaport ,high-speed rail site and so on.

2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability3.Small capacity

mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles ,

improve thedriving safety.

3. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.

4.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.

Technology Parameters

MIXING UNIT	Drum capacity 4.3 m3. Concrete output: 3.0 m3 per batch. The mixing unit is slewing hydraulically through 300°
PRODUCTIVITY	up to 4 batches per hour
ENGINE	YUCHAI YC4D85 water-cooled, 4cylinders. Rated power 60KW/2200rpm .
TRANSMISSION	4 wheels drive,4 wheels steering.
SPEED	Working speed from 0 to 9 km/h, road transfer from 0 to 20 km/h.
DRIVING SEAT	Front cab on side of loading shovel. ROPS-FOPS type complete with double closing door.
HYDRAULIC SYSTEM	Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 1 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
JOYMIX	All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
LOADING SHOVEL	Capacity 400 liters, complete with hydraulic opening gate.
CHUTE	Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.
WATER SYSTEM:	Self-contained. Hydraulic driven water pump, water meter. High pressure water pump & washing gun(on request).
BRAKES:	Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
TYRES	10.00-20-16
ELECTRIC SYSTEM	24 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
TANKS	Water: 2x300 liters. Diesel: 100 liters. Hydraulic oil: 125 liters.
CHASSIS	Steel profile specially engineered for off-road operations.
WEIGHT	About Kg.7500, equally distributed on both axles
OVERALL DIMENSIONS	Long: 6.715M Width 2.28M High: 3.23M
SAFETY	Machine equipped with checking and block valves for maximum safety of the operator.
