glow in the dark road marking paint Thermoplastic Road Marking Machine - LH
glow in the dark road marking paint Thermoplastic Road Marking Machine - LH glow in the dark road marking paint Thermoplastic Road Marking Machine - LH glow in the dark road marking paint Thermoplastic Road Marking Machine - LH
Product Introduction
1,Stable pressure
2,Large flow
3,Markings in appearance
4,Uniform thickness
5,Running light
6,Operation is simple and suitable for all types of marking places at room temperature.

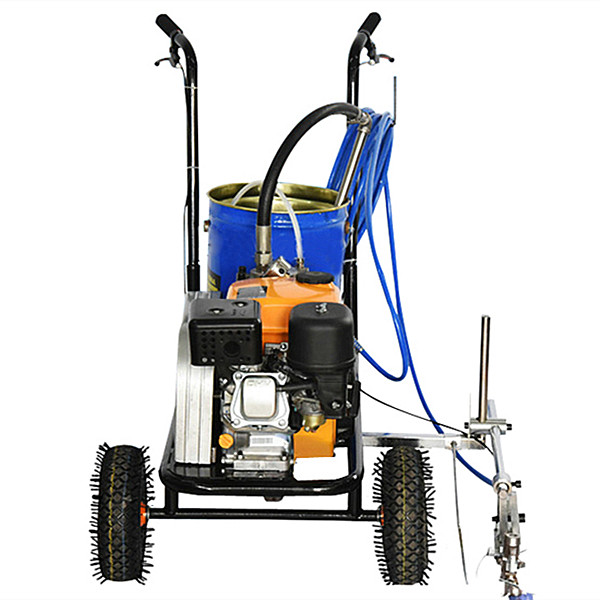

LH-HX8 Hand-push thermoplastic road marking machine will be poured into paint after burning through a pre-heater. It uses special high precision cast iron marking shoe to ensure that the marking line comes to uniform side and thickness, linear appearance. The glass beads spread complete with automatic speed control buffer devices. The positioner upon back wheel make sure the machine go straight. This machine has the advantage of high quality construction, fast, flexible operation, conveninet maintance and so on. It can be suitable for highway, municipal roads, village or town road, guiding arrows, words, parking lines, factories, etc.
Technology Parameters
Marking width 10 ~ 450mm (adjustable)
Spraying thickness of 0.2 ~ 0.4mm
Paint pump maximum flow : 8L/min
Max output pressure : 250Bar
Nozzle standard configuration : 0.019"
Max. Nozzle Size: 0.025"
High pressure pipe length : 15m
Tank capacity: 10L

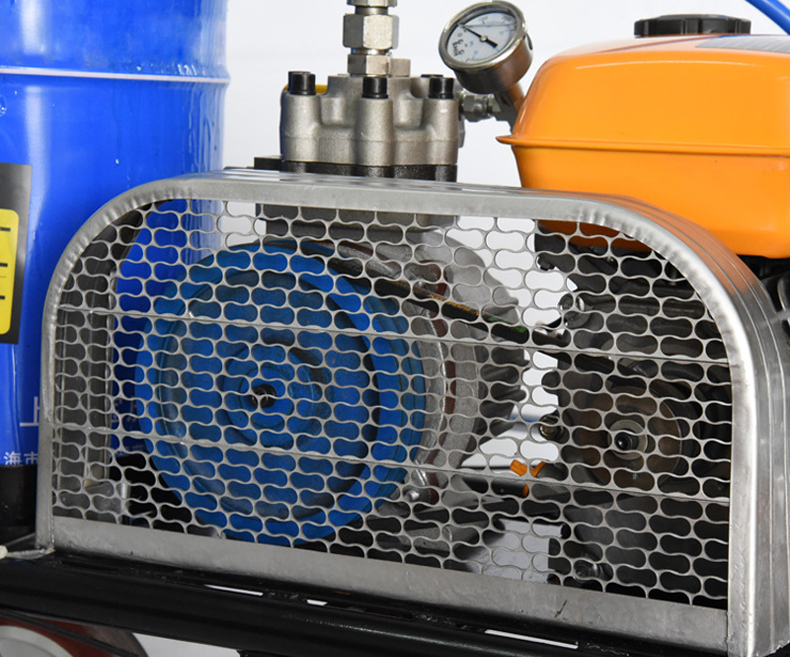

The real details photo
Good Cooperation
Transaction history
Quality Certificate
Transport and shipping
