3.5 m3 Diesel Concrete Mixer 4X4 Mixer Self Propelled Self Loading Mixing Small Concrete Mobile Truck for Sale

Click on the image to view the original image

Product：	views：83.5 m3 Diesel Concrete Mixer 4X4 Mixer Self Propelled Self Loading Mixing Small Concrete Mobile Truck for Sale
Branch：	HW
Size：	610X180X300 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Power(W):: 82KW

Weight:: 7500KG

Warranty:: 1 Year

After-sales Service Provided:: Video technical support

Applicable Industries:: Construction works

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Dimension(L*W*H):: 7011x2441x3310

Certification:: ISO

UNIQUE SELLING POINT:: High load Moment

Model:: mobile concrete mixer

Distance of Front:: 1905mm

Wheelbase:: 2155mm

speed:: 0~20KM/H

Min. Turning Radius:: 6.5m/R

Diesel Engine:: 4BTA3.9-C110

Rated Power/ rpm:: 82kW/2200rpm

Max. Torque/ rpm:: 460N.m/1400rpm

bores:: 102mm

Cooling Type:: Water cooling

Packaging & Delivery

Selling Units:: Single item

Single package size:: 610X180X300 cm

Single gross weight:: 7400.0 kg

Package Type:: wooden case

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	6	To be negotiated

3.5 m3 Diesel Concrete Mixer 4X4 Mixer Self Propelled Self Loading Mixing Small Concrete Mobile Truck for Sale

3.5 m3 Diesel Concrete Mixer 4X4 Mixer Self Propelled Self Loading Mixing Small Concrete Mobile Truck for Sale

Related Products

3.5 m3 Diesel Concrete Mixer 4X4 Mixer Self Propelled Self Loading Mixing Small Concrete Mobile Truck for Sale

Product Description

3.5 m3 Diesel Concrete Mixer 4X4 Mixer Self Propelled Self Loading Mixing Small Concrete Mobile Truck for Sale

1.The vehicle size is small, suitable for limited site and widely used in new rural construction, urban

construction ,tunne l ,airport ,seaport ,high-speed rail site and so on.

2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability3.Small capacity

mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles ,

improve thedriving safety.

3. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.

4.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.

Technology Parameter

3.5 m3 Diesel Concrete Mixer 4X4 Mixer Self Propelled Self Loading Mixing Small Concrete Mobile Truck for Sale

Actual mixing volume	1.2m3
Geometrical capacity	1.4m3
Angle of inclination	16o
Rotaring speed	0-14 r/min
Mixing drum blade	Two sets of spiral blades.and
Slump of concrete	70-260mm
Pump Model	CBGV-4025
Motor Model	BMSS-250
Reduction gear ratio	1:10
Drove type	4X4
Operating weight	4580kg
Max.loading weight	2800kg
Max.total weight	7380kg
Overall dimensions	610018503000mm
Gradeability	26%
Tire	23.5/70-16
Minimum turning radius	5000mm
Rated power	55KW/2400 78KW/2400KW/min

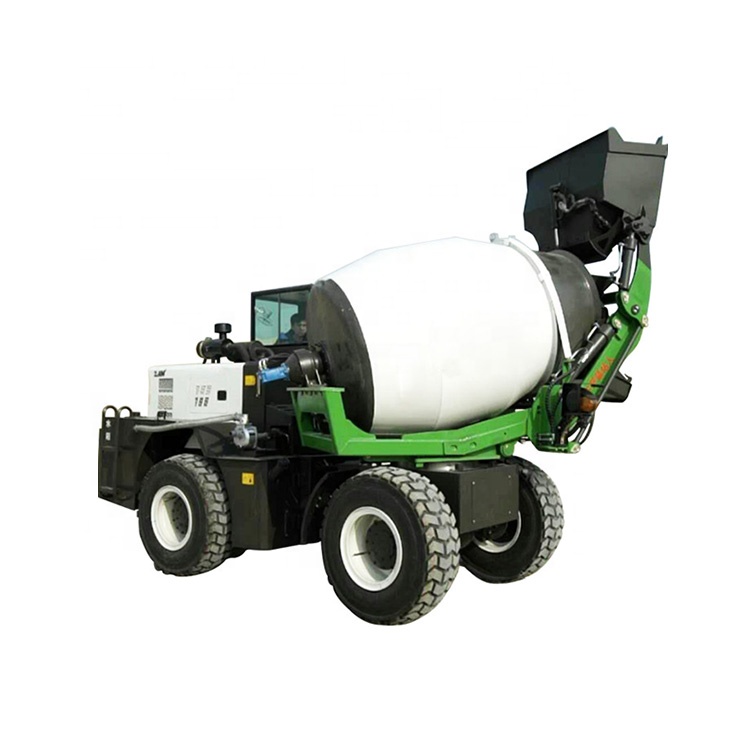

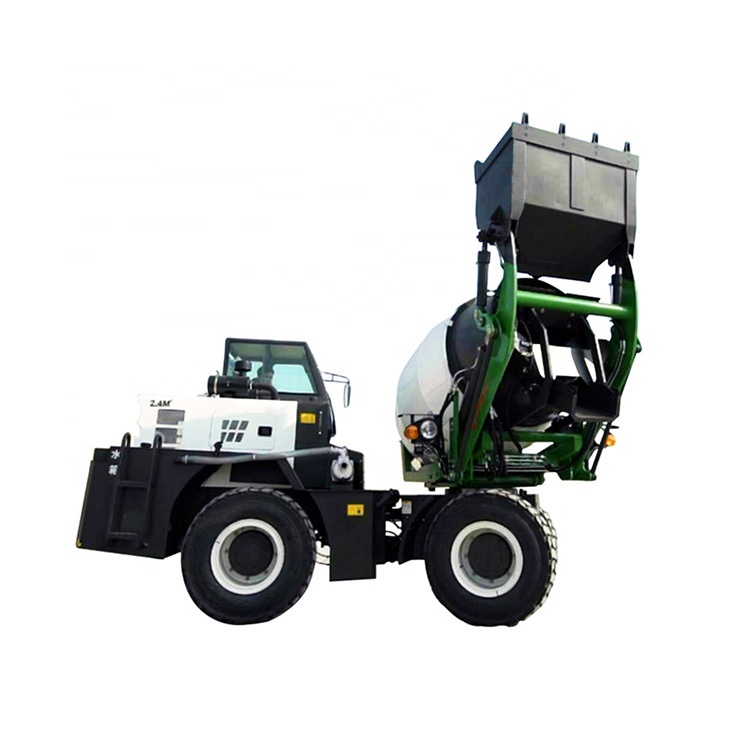

The photos
