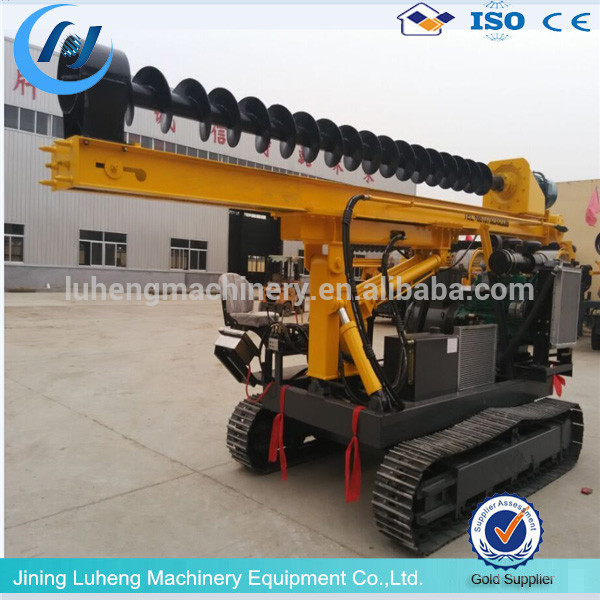

Factory price bore pile Long Auger Drill Machine used hammer vibratory hammer driver
Click on the image to view the original image
Product： views：9Factory price bore pile Long Auger Drill Machine used hammer vibratory hammer driver
Branch： HW
Size： 580X200X210 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:45
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
1-2m/min
Efficiency:
Day
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Warranty:
1 Year
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Weight:
7200kg
Dimension(L*W*H):
4370*2010*4290
Certification:
ISO
rated power:
55kw
rated speed:
2400r/min
starting voltage:
24v
min ground interspace:
380mm
Drilling diameter:
130-800mm
max drill depth:
3600mm
rod rotation speed:
71r/min
climb angle:
35
max travel speed:
5km/h

Packaging & Delivery

Selling Units:
Single item
Single package size:
580X200X210 cm
Single gross weight:
5000.0 kg
Lead Time:
Quantity(Set)1 - 2>2
Est. Time(days)3To be negotiated
Video Description

Factory price bore pile Long Auger Drill Machine/used pile hammer/vibratory hammer pile driver

Factory price bore pile Long Auger Drill Machine/used pile hammer/vibratory hammer pile driver

Product Introduction

This tool operation is simpel,variety size of device could be used for different ground screw. This driver is shipped completely assemble.When we push the reverser,the host machine will contrarotate,Then ground screw will be drilled out.When the ground screw work normally,the adjusting knob of control instrument can be adjusted to maximun.It can ensure the host machine output the biggest torque.

features:

1,high quality round screw electric-driver
2,Competitive price
3,easy and fast install

Technology Parameters

roted power55kw
rated speed2400r/min
starting voltage24v
dimension size4370*2010*4290
min ground interapzce380mm
track shoe width260mm
max upright rod height4370mm
drill diameter130-800mm
max drill depth3600mm
rod rotation speed71r/min
main pump rotation speed2000-2400l/min
main pump press20mpa
main valve flow100l/min
oil tank capacity200l
climb angle35
max travel speed5km/h

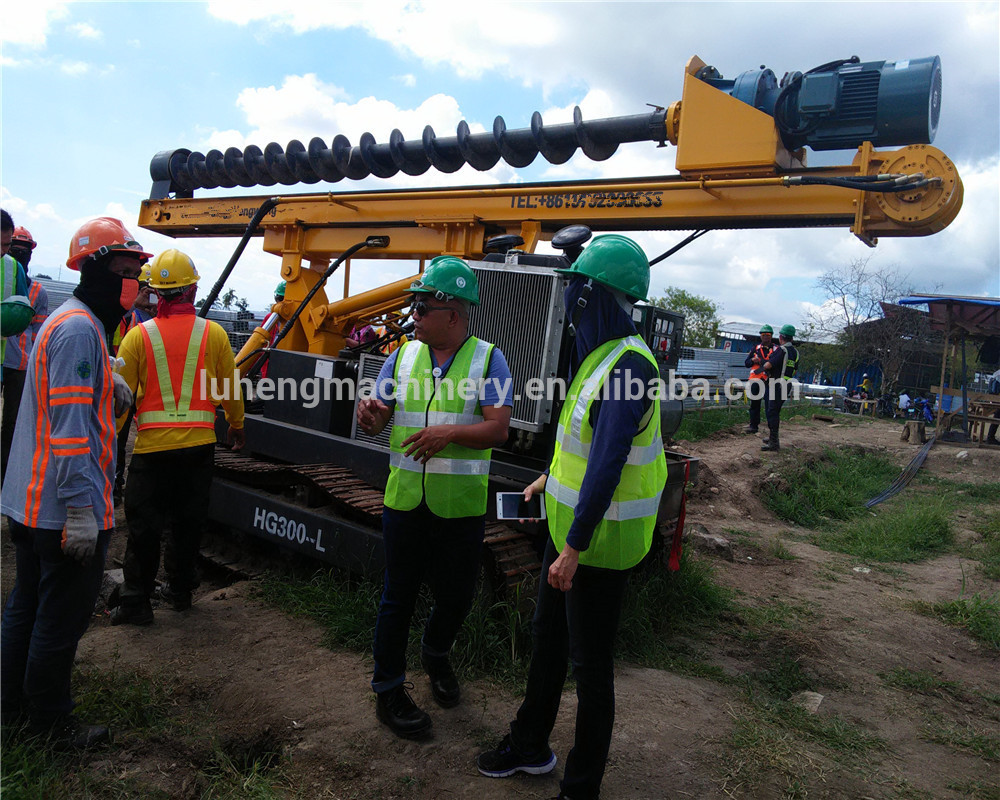

The real details photo
