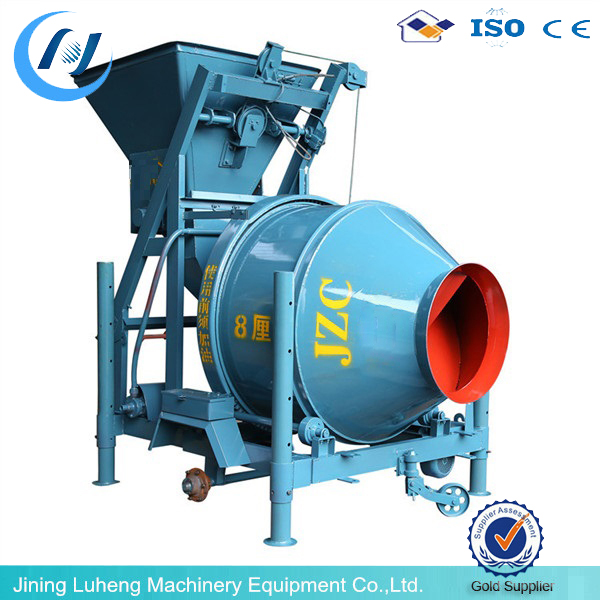

Indusrial used portable concrete mixer/concrete mixer with pump/concrete mixer pump
Indusrial used portable concrete mixer/concrete mixer with pump/concrete mixer pump
Product Introduction
Features:
1.The concrete mixer are self-loading which can mix plastic and half dry hard concrete.
The machine mixes when the double-cone mixer drum rotates clockwise and discharges when it rotates reversally.
The mixer drum is driven by the ring gear.
2.It has strong points such as reliable rotation, low noise and energy consumption, compact structure, smooth running. Moreover easy operation, high quality mix and production efficiency are also its advantages.
3.it is the ideal machines for construction sits, road, bridge project, hydroelectric power and small and medium concrete components factory.
This machine is used for mixing plastic and low-fluidity concrete, each time stirring 0.35 m³
to 1.5 m³ concrete (refer to the volume after tamping), applying to most small and medium construction projects, roads, bridges, water conservancy and the concrete plants.
This machine is a bipyramid reversal discharging self-loading concrete mixer, the mixing drum"s forward rotation is mixing, reverse rotation is discharging. The machine has the benefits of simple structure, reliable, good mixing quality, high efficiency, light weight, and easy manipulation of maintenance, so it is more advanced models of concrete mixers. Because outfitting with a diesel-powered engine, it is more applicable to the remote areas and the wild which have no electric power supply.
Technology Parameters
| Model | JCR350 | JCR500 | JCR750 |
| Discharge volume | 350L | 500L | 750L |
| Charging volume | 560L | 800L | 1200L |
| Capacity | 15 m3/h | 20 m3/h | 35 m3/h |
| Aggregate sizes | ≤60mm | ≤60mm | ≤80mm |
| Rotating speed | 14 r/min | 13 r/min | 12.26 r/min |
| Max. | 20km/h | 20km/h | 20km/h |
| drag speed | |||
| Mixing motor | 5.5kw | 7.5kw | 11kw |
| Lifting motor | 4.5KW | 5.5kw | 7.5kw |
| Pump motor | 0.55kw | 0.55kw | 0.75kw |
| Weight | 1980kg | 2420kg | 4100kg |
| Dimension | 2766x2140x3000(mm) | 3500x2200x3200 (mm) | 5650x2065x3535 (mm) |

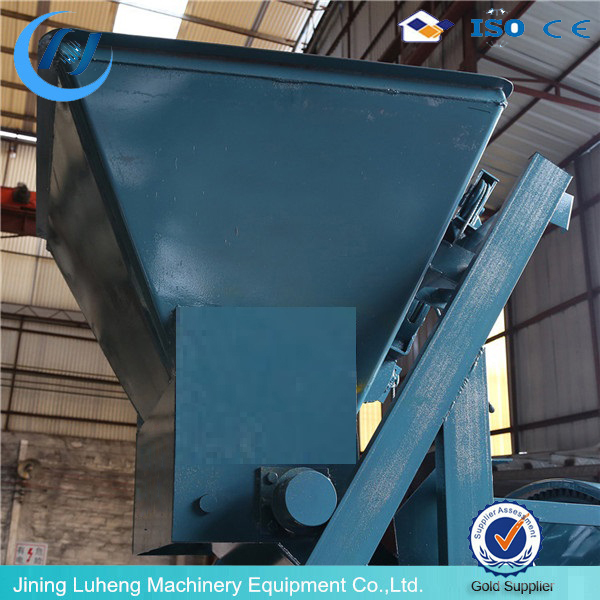

The real details photo
