Pile Driving Post anchor Ground Screw Driver
Pile Driving Post anchor Ground Screw Driver
Product Instruction
This tool operation is simpel,variety size of device could be used for different ground screw. This driver is shipped completely assemble.When we push the reverser,the host machine will contrarotate,Then ground screw will be drilled out.When the ground screw work normally,the adjusting knob of control instrument can be adjusted to maximun.It can ensure the host machine output the biggest torque.
features:
1,high quality round screw electric-driver
2,Competitive price
3,easy and fast install
Technology Parameters
| roted power | 55kw |
| rated speed | 2400r/min |
| starting voltage | 24v |
| dimension size | 4370*2010*4290 |
| min ground interapzce | 380mm |
| track shoe width | 260mm |
| max upright rod height | 4370mm |
| drill diameter | 130-800mm |
| max drill depth | 3600mm |
| rod rotation speed | 71r/min |
| main pump rotation speed | 2000-2400l/min |
| main pump press | 20mpa |
| main valve flow | 100l/min |
| oil tank capacity | 200l |
| climb angle | 35 |
| max travel speed | 5km/h |

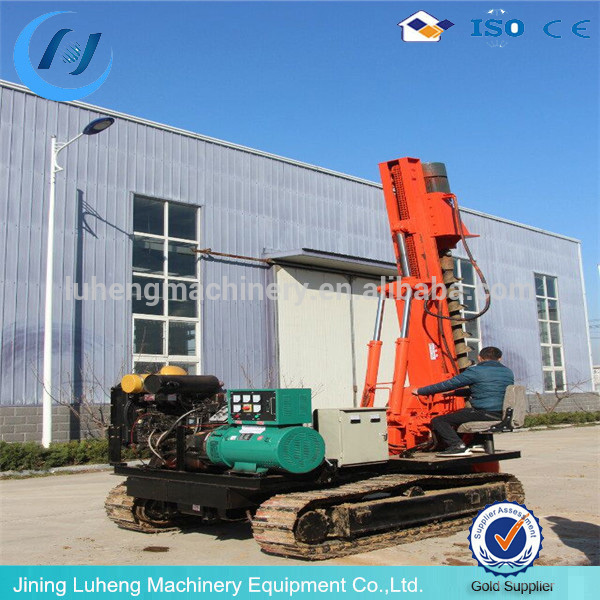

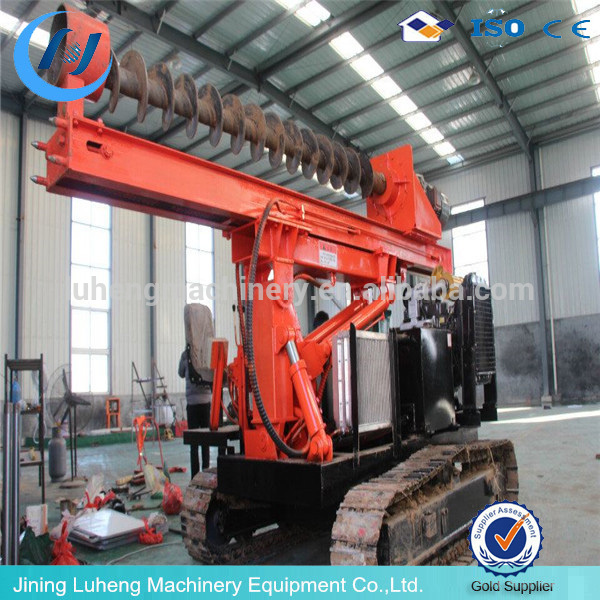

The real details photo
Good Cooperation
Transaction history
Quality Certificate
Transport and Shipping
