Home > Products > Right-hand mining rock bolts / fiberglass anchor rod

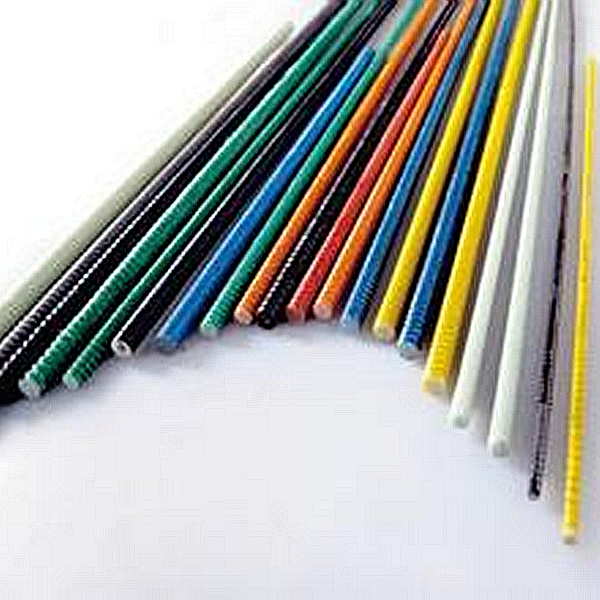

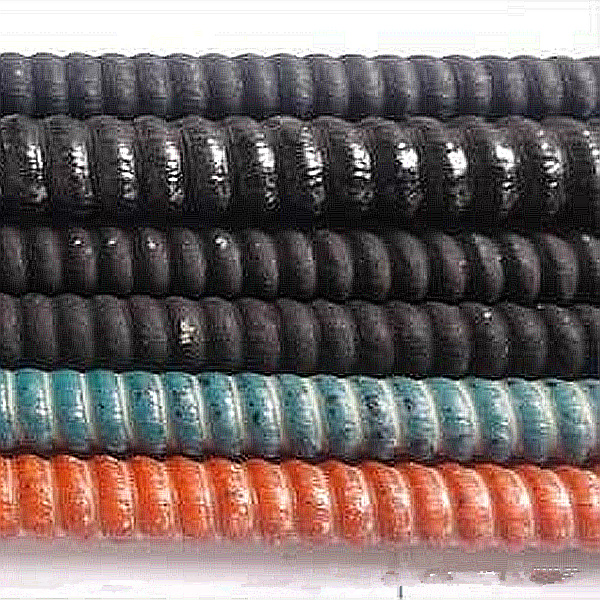

Right-hand mining rock bolts / fiberglass anchor rod

Click on the image to view the original image

Product：	views：8Right-hand mining rock bolts / fiberglass anchor rod
Branch：	LH anchor rod, LH
Type：	Anchor Bolt
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: LH anchor rod, LH

Model Number:: FRP anchor rod

Type:: Anchor Bolt

Material:: Steel

Capacity:: 230 KN

Standard:: ISO

Surface Treatment:: threaded

Technique:: pultrusion

Size:: customized

certificate:: ISO , CE

durability:: Unaffected by acid rain

color:: green,yellow,black

usage:: coal mine

Yield load capacity:: 230 KN

Name:: anchor rod

Diameter:: as your Required

Length:: as your Required

Supply Ability

Supply Ability:: 1000 Set/Sets per Month anchor rod

Packaging & Delivery

Packaging Details: wooden case

Port: QINGDAO

Right-hand mining rock bolts / fiberglass anchor rod

Right-hand mining rock bolts / fiberglass anchor rod Right-hand mining rock bolts / fiberglass anchor rod Right-hand mining rock bolts / fiberglass anchor rod Right-hand mining rock bolts / fiberglass anchor rod

Feature

· Rod density 1.6 - 2.1g / m³

· high specific strength , tensile strength higher than 20% of the steel bars of the same specifications

· light weight , convenient work surface artificial transportation

· corrosion

· flame retardant , antistatic

· easy to cut and will not produce sparks

· bond strength and anchorage strong reinforcement

Technology Parameters

Diameter	Length	Plate size	Tensile strenth	Ultimate load	Working Load
(mm)	(mm)	(mm)	(MPa)	(KN)	(KN)
16	1000~1800	120×120×6	≥500	80	≥49
18	1200~2000	120×120×10	≥500	100	≥58.8
20	1400~2000	150×150×8	≥500	120	≥78.6
22	1600~2100	150×150×10	≥500	140	≥80
24	1800~2200	150×150×10	≥500	160	≥88.2
