Water wells Drilling machine, deep well drilling machine
Features:
1. Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.
2. Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.
3. Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.
4. 24V electric-strat diesel engine reduces the operator`s labor intensity.
5. Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.
6. Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs
Water Well Drilling machine application:
1. This drilling rig adopts advanced topdrive technic, vibration technology, Fully hydraulic controlling, saving 50% of energy compared to the same drilling machine.
2. No complicated mechanical operation handles, the drilling machine structure is compact, strong and durable,no need to disassemble when being transported.
3. It is fast at drilling speed, strong stability,high vertical precision of boreholes.
4. Power head uses the gear reducer combined of vabration,strong torque;when meeting with hard rock, can use the vibration function to improve the drilling speed,it is the ideal drilling equipment for users at home and abroad.
5. This machine is suitable for the soil, sand, rock, gravel, weathering rock, construction precipitation, geothermal heat, industrial and agricultural water wells, family use well drilling projects and so on.
Water Well Drilling machine parameter:
Drilling depth | 100-2500m |
Maximum open hole caliber | 100-360mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90~75 |
Drill weight (No include power) | 510 560kg |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
Spindle | |
spindle speed | 142,285,570r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 960kg |
Single line lifting speed | 0.41,0.82,1.64m/s |
Tightrope caliber | 27m |
Mud pump of HZ-130YY model drilling rig | |
Type | Horizontal single urn twin-action |
Displacement | 95/77L/min |
Diesle engine | Model s1110 18HP |
Electric motor | 11kw 1440r/min |
Water inlet caliber | 30mm |
Water to exit caliber | 25mm |
Triangle conveyor belt | B1575mm |

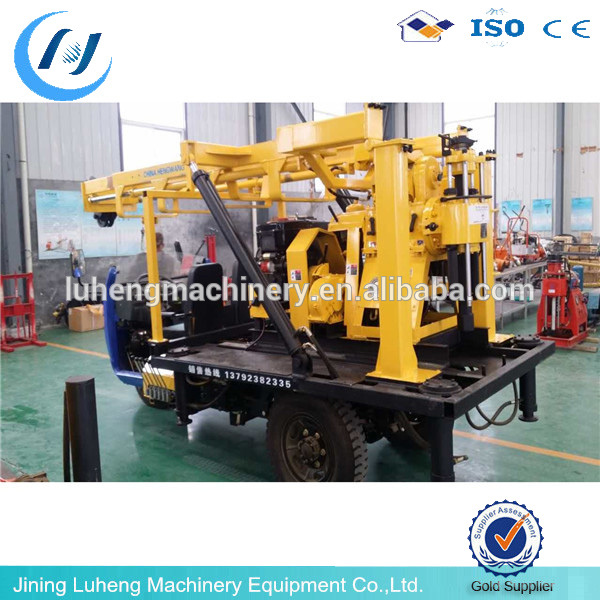

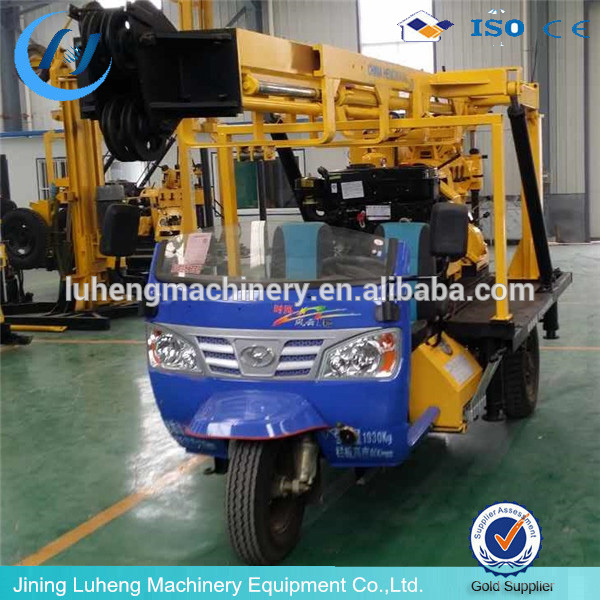

Water Well Drilling machine pictures:
