200meters water wells drill machine Electric motor or diesel engine water well drilling rig

Click on the image to view the original image

Product：	views：9200meters water wells drill machine Electric motor or diesel engine water well drilling rig
Branch：	luheng
Type：	Rotary Drilling Rig
Size：	230X260X160 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: luheng

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 3500*1550*2200mm

Weight:: 2000 kg

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support

tightrope caliber:: 27m

end hole caliber:: 75mm

Product name:: diesel engine water well drilling rig

spindle speed:: 142,285,570 r/min

maximum open hole caliber:: 260mm

max.single line hoisting capacity:: 960kg

drill rod caliber:: 50mm

spindle stroke:: 450mm

Hydraulic motor:: 16pa

drilling depth:: 100~250m

Packaging & Delivery

Selling Units:: Single item

Single package size:: 230X260X160 cm

Single gross weight:: 2000.0 kg

Lead Time:

Quantity(Set)	1 - 5	>5
Est. Time(days)	5	To be negotiated

Product Description

1. Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.

2. Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.

3. Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.

4. 24V electric-strat diesel engine reduces the operator`s labor intensity.

5. Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.

6. Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.

Technology Parameter

Whole machine parameters	Model	HW-160S	HW-190S	HW-230S
	Drilling depth(m)	160	190	230
	Open hole dia. (mm)	500,220	500,220	500,273
	End hole dia. (mm)	75	75	75
	Drill rod dia. (mm)	42,50	42,50	42,50,60
	drill angle (°)	90-75	90-75	90-75
	Matching power (kW)	11	13.2	15
	Weight (kg)	2750	2800	3000
	Dimension(LWH) (m)	41. 72. 3	41. 72. 3	41. 72. 3
Spindle	Speed (r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Spindle	Stroke (mm)	450	450	450
Tricycle chassis	Model	wuzheng	wuzheng	wuzheng
	Model	7YP-1475D1	7YP-1475D1	7YP-1475D1
	Emission standard	GB19756-2005 (Ⅱ)	GB19756-2005 (Ⅱ)	GB19756-2005 (Ⅱ)
	Rated power (kW)	18. 3	18. 3	18. 3
	Rated speed (r/min)	2200	2200	2200
Drill Tower	Rated load (ton)	18	18	18
Drill Tower	Effective height (m)	6.5	6.5	6.5
Mud pump	Flow (L/min)	160	160	160
	Max. pressure (Mpa)	1. 3	1.3	1.3
	reciprocal times /mi n	165	165	165
	Inlet hose dia. (mm)	51	51	51
	Outlet hose dia. (mm)	32	32	32

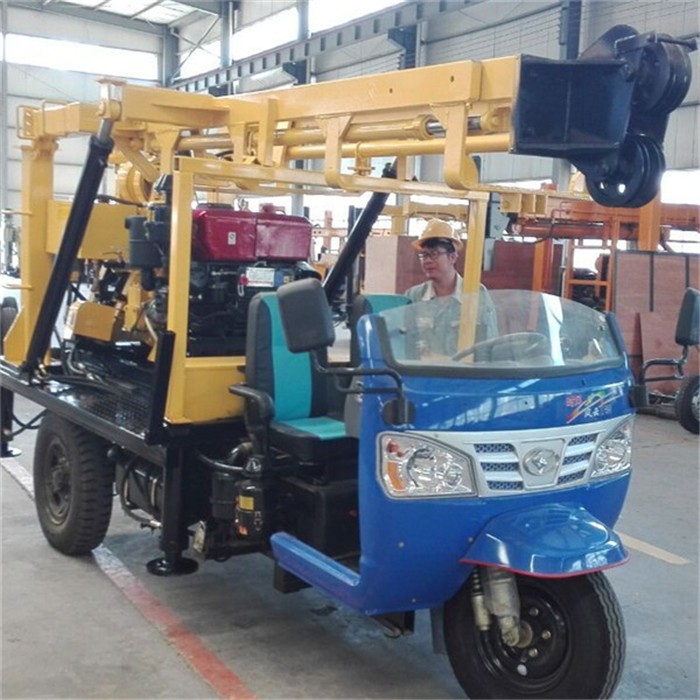

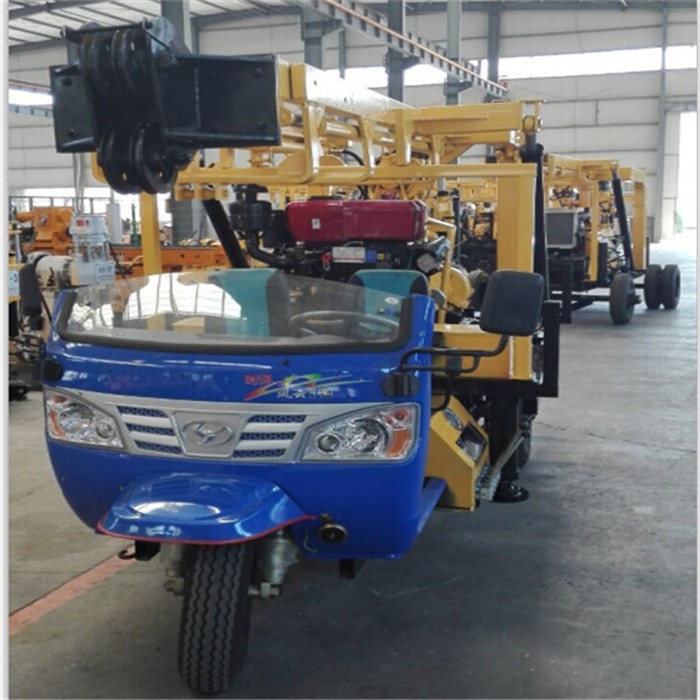

The photos
