Diesel mobile concrete mixer truck
Features:
Mobile concrete mixing station feature combines self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.
Concrete mixer truck description:
Mobile concrete mixing station is an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station. This cutting edge machine will lead the concrete industry in next decade.
Put cement, sand and gravel into the drum and let the mobile concrete mixing station do the rest.
Concrete mixer truck parameter:
Vehicle | Net | 7500kg | |
| Gross | 15000kg | |
| Transmission | Hydraulic | |
|
| 4*4 | |
| Brake | Hydraulic Brake | |
| Wheelbase | 2155mm | |
| Loader | Capacity | 0.6m³ |
|
| Control | Hydraulic |
| Speed | High | 0-20km/h |
|
| Low | 0-9km/h |
| Min.Turning Radius | 6.5m/R | |
| Dimensions(L*W*H) | 7011*2441*3310(MM) | |
Disel Engine | Type | 4BTA3.9-C110 | |
| Rated Power/rpm | 82KW/2200rpm | |
| Cylinder | 4-cylinder/3.9L | |
| Bores | 102mm | |
| Cooling Type | Water cooling | |
| Fuel Consumption | 207g/kw.h | |
| Starter | Electric | |
| Emission Standard | China II | |
Mixing Drum | Drum Capacity | 3.5m³,14m³/hr. | |
| Bank Angle | 16° | |
| Rotation Speed | 10-16r/min | |
| Angle of Drum Rotation | no less than270° | |
Chute | Swing Angle | no less than 60° | |
| Angle Control | Hydraulic | |
| Size | Long:106cm | |
|
| Short:40cm | |

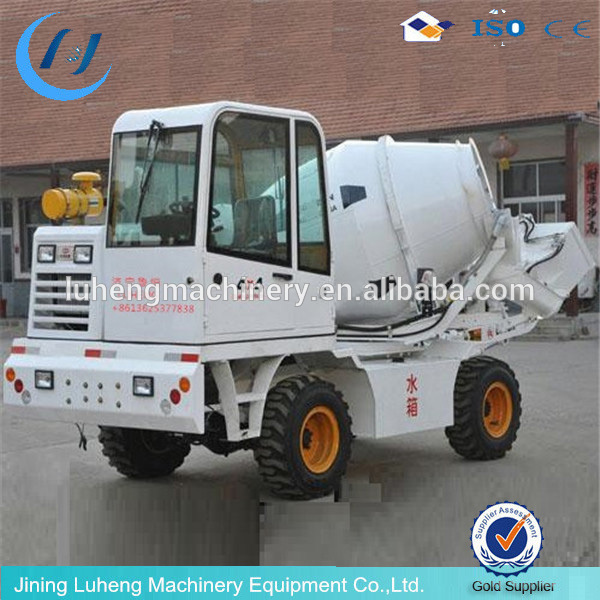

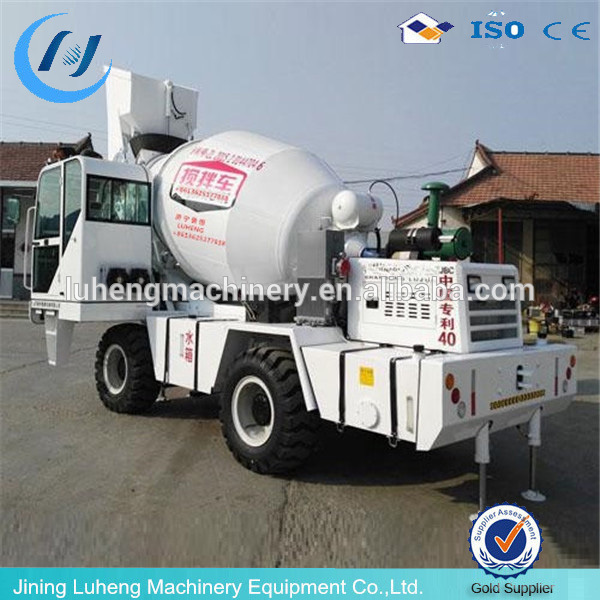

Concrete mixer truck pictures:
