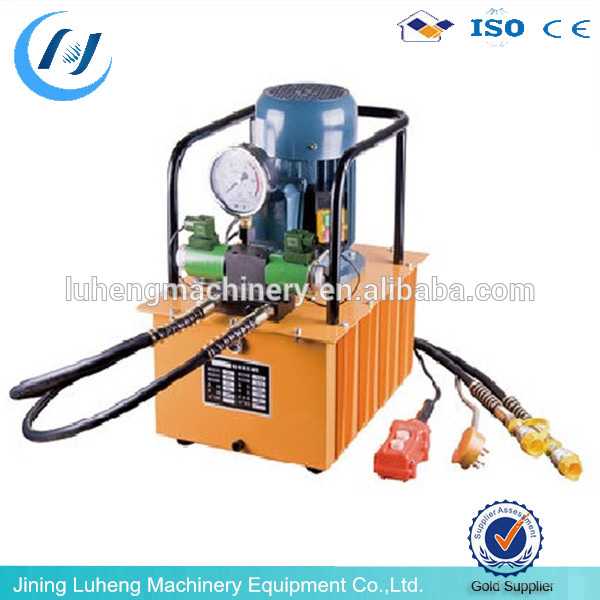

700 bar high pressure 3 acting hydraulic pump station
700 bar high pressure 3 acting hydraulic pump station
Product Introduction
Features:
1. 220V electric hydraulic pump
2. Electromagnetic valve controlto pull back piston at any position
3. High and low speed for quick oil output.Turbine oil absorption to ensure max. effective oil volume.
4. Overpressure unit of pressure safety valve to avoid over pressure damage or extremely pressured. At 700kg/cm2,pressure releaseautomatically.
5. High pressure is for driving piston, low pressure is for piston reset
6. Oil pipe fitted with quick coupling can be ordered at any length.
7. Oil pipe coupling is fitted with PT3/8” thread.
Technology Parameters
| Model | BS-DCS2A6 | BS-DCD1A6 | BS-SD1A6 | BS-SV2A6 |
| Working pressure | 63mpa | 63mpa | 63mpa | 63mpa |
| Max flow | 0.6L/Min | 0.6L/Min | 0.6L/Min | 0.6L/Min |
| Input voltage | 380/220V | 380/220V | 380/220V | 380/220V |
| Motor power | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Oil capacity | 8L | 8L | 8L | 8L |
| Weight | 25kg | 25kg | 24kg | 26kg |
| Size | 37*29*49cm | 37*29*49cm | 37*29*49cm | 37*29*49cm |
| Material | Copper motor | Copper motor | Copper motor | Copper motor |
| Control Valve | Manual control | Manual control | Manual control | Solenoid valve |
| Oil pipe | Single loop | Double loop | Double loop | Double loop |
The real details photo
The real details photo
