Walking-type pile foundation, truck mounted automatic pile driver
Features:
1 Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.
2 Parts for repairs are readily available.
3 Interchangeablity of parts is supported by all models.
4 Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.
5 Supplying power and fuel to these system is very feasible at construction sites.
Auger Piling Rig description:
The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
Auger Piling Rig parameter:
| Engine | 4108 Diesel Engine (High Confirguration Weichai) |
| Dimension | 4370 x 2010 x 4290 mm |
| Crawler plate width | 260mm |
| Highest pole | 4370mm |
| Scope of operation parameters of borehole diameter | 100-500mm |
| Maximum drilling depth | 15m |
| Drill pipe rotation speed | 71 r/min |
| Hydraulic system of main pump model | CBG1 - F032/032 |
| The main pump speed | 2000-2400L/min |
| The main pump pressure | 25Mpa |
| The main valve flow | 100 L/min |
| Hydraulic tank volume | 260L |
| Rotary Angle | 360° |
| The performance parameters of gradability | degrees 30 |
| Maximum speed | 5 KM/h |

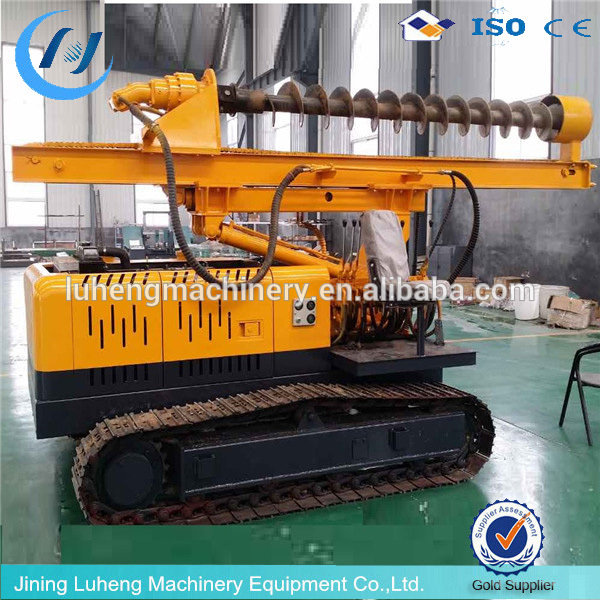

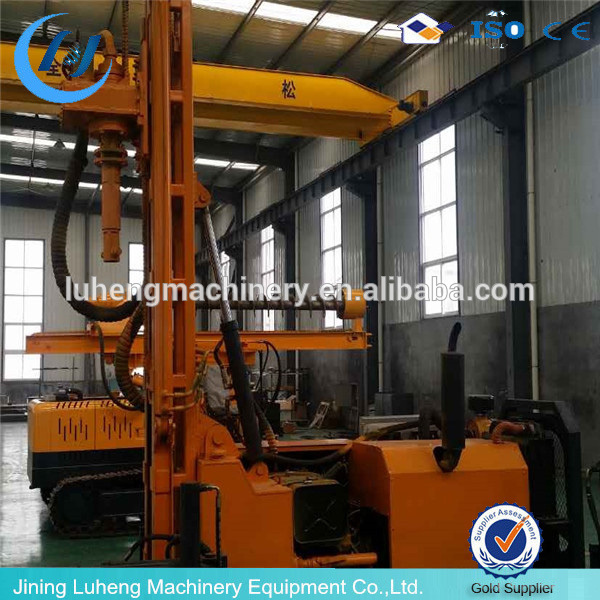

Auger Piling Rig pictures:
