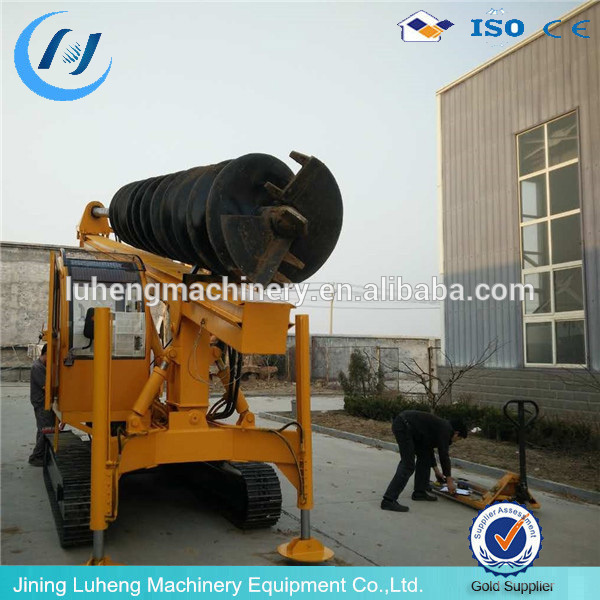

small screw pile driver for solar power system/Ground Screw Installation Manual Pile Driver

Click on the image to view the original image

Product：	views：30small screw pile driver for solar power system/Ground Screw Installation Manual Pile Driver
Branch：	LH
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Piling Speed(m/min):: 3 - 4M/min

Efficiency:: High Efficiency

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: LH

Model Number:: LH

Weight:: 7200kg

Dimension(L*W*H):: 4370*2010*4290

Certification:: ISO

min ground interspace:: 380mm

rod rotation speed:: 71r/min

main valve flow:: 100l/min

Drilling diameter:: 130-800mm

climb angle:: 35

rated speed:: 2400r/min

starting voltage:: 24v

max drill depth:: 3600mm

max travel speed:: 5km/h

Name:: pile driver

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 100 Set/Sets per Month pile driver

Packaging & Delivery

Packaging Details: on steel pallet ,in carton or as your asking

Port: Qingdao

small screw pile driver for solar power system/Ground Screw Installation Manual Pile Driver

small screw pile driver for solar power system/Ground Screw Installation Manual Pile Driver small screw pile driver for solar power system/Ground Screw Installation Manual Pile Driver

Product Introduction

This tool operation is simpel,variety size of device could be used for different ground screw. This driver is shipped completely assemble.When we push the reverser,the host machine will contrarotate,Then ground screw will be drilled out.When the ground screw work normally,the adjusting knob of control instrument can be adjusted to maximun.It can ensure the host machine output the biggest torque.

features:

1,high quality round screw electric-driver
2,Competitive price
3,easy and fast install

Technology Parameters

roted power	55kw
rated speed	2400r/min
starting voltage	24v
dimension size	437020104290
min ground interapzce	380mm
track shoe width	260mm
max upright rod height	4370mm
drill diameter	130-800mm
max drill depth	3600mm
rod rotation speed	71r/min
main pump rotation speed	2000-2400l/min
main pump press	20mpa
main valve flow	100l/min
oil tank capacity	200l
climb angle	35
max travel speed	5km/h
