Hydraulic saw lathe, hydraulic automatic lathe
Features:
1. Chromized treatment on surface of column that are uniform in size;
2. synchronous double cylinders for lift and drop of saw beam, so constant in sawing performance;
3. hydraulic or manual way optional for holding the work-piece;
4. both front and rear vice clamps for fastening work-piece and saw blade running inside;
5. adjustable tungsten-steel block as the direction guide that guarantees the sawing precision;
6. easy to operate, narrow in kerf, material and energy-saving, scientific in structure,nice in look, and high in productivity
Hydraulic saw lathe description:
This Double-Column & Double-Cylinder Horizontal Band Sawing Machine is designed and
manufactured independently by our company. It"s combination of mechanism, electrics
and hydraulic system. It"s the sawing and cutting equipment of heavy-duty
or medium-duty with high productivity.
Hydraulic saw lathe parameter:
Item | Unit | LH-GX4025 | LH-GX4028 | LH-GX4038 |
Cutting capacity | mm | 250 250W*200H | 280 300W*220H | 380 400W*250H |
Blade speed | m/min | 20/45/90 | 20/45/90 | 30/50/70 |
Blade size | Mm | 27*0.9*3152 | 27*0.9*3350 | 34*1.1*4115 |
Main motor power | kw | 1.8(4P) | 1.8(4P) | 3(4P) |
Hydraulic motor | kw | 0.37 | 0.37 | 0.75 |
Coolant pump | kw | 0.075 | 0.075 | 0.075 |
Workpiece clamping |
| Hydraulic Vice | Hydraulic Vice | Hydraulic Vice |
Blade tensioning |
| Manual | Manual | Manual |
Working feeding |
| Auxiliary roller table | ||
Table height | mm | 620 | 620 | 620 |
Overall size(L*W*H) | mm | 1550*800*1200 | 1510*830*1200 | 2000*1160*1310 |

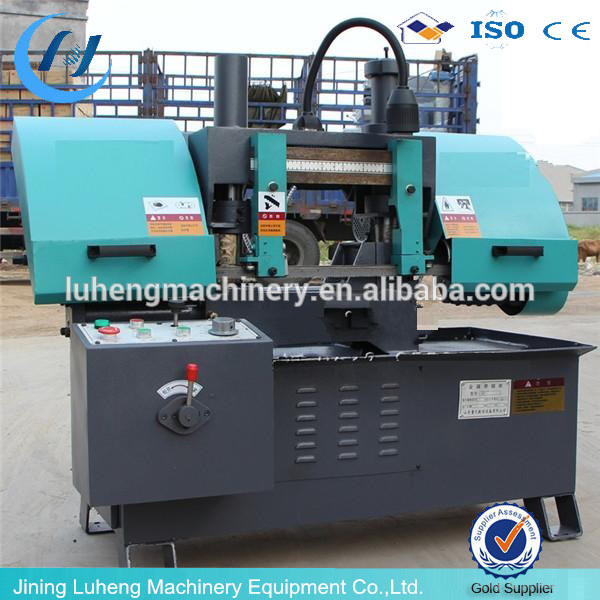

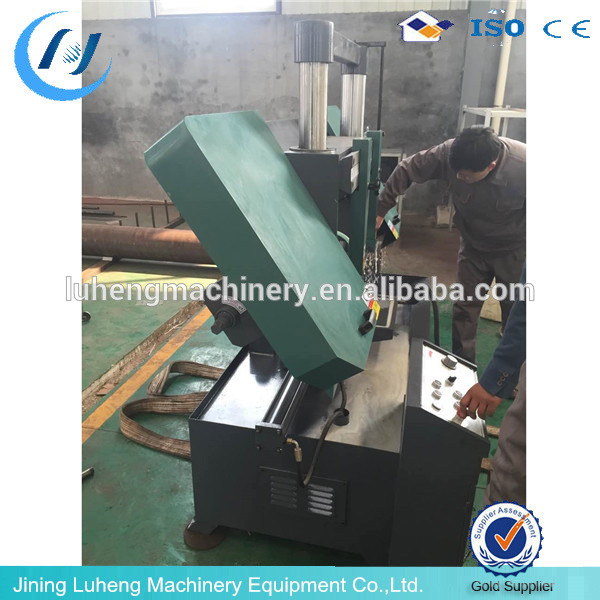

Hydraulic saw lathe pictures:
