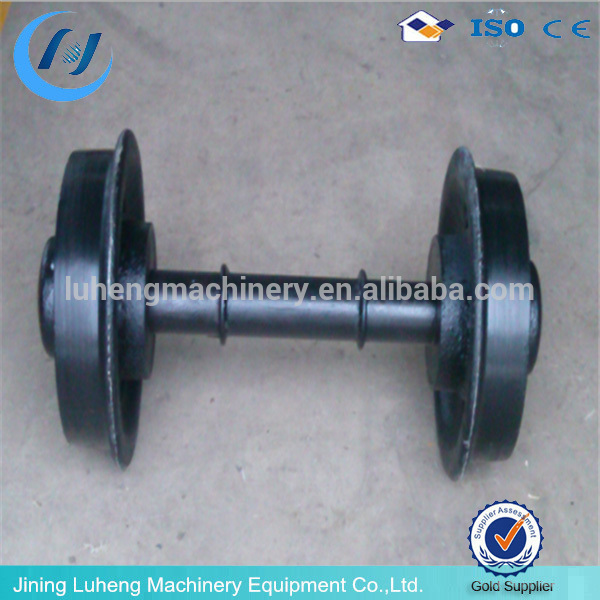

Stainless Steel railway wheel set for mine car
Stainless Steel railway wheel set for mine car
Product Instruction
Railway Wheel Set:
1. material: cast steel or cast iron
2. constitute: two wheels, one axle, four bearings, and other parts.
3. loading capacity: 1-25tons, each one is ok.
4. wheel sets gauge: 600mm, 762mm, 900mm, and etc.
5. the type of the wheels: hollow wheel sets and solid wheel sets.
6.the diameter of the wheels: 300mm, 350mm, 400mm, 450mm
7.the material of the axle: 45# steel, or Q235
8.the quantity of each wheel"s bearing: two
9.the material of the bearing: LYC32212, conical roller bearing, deep groove ball bearing
10. weight: 70kg
Technology Parameters
| Model | Mine Car Weight kg | Track mm | Wheel Diameter | Max Axle Distance of wheels | Mindistance of covers | Axle diameter |
| LH600/300 | ≤2400 | 600 | 300 | 808 | 510 | 60 |
| LH762/300 | 762 | 970 | 672 | |||
| LH900/300 | 900 | 1108 | 810 | |||
| LH600/350 | ≤6700 | 600 | 350 | 850 | 490 | 80 |
| LH762/350 | 762 | 1012 | 652 | |||
| LH900/350 | 900 | 1150 | 790 | |||
| LH600/400 | ≤9000 | 600 | 400 | 870 | 476 | 95 |
| LH762/400 | 762 | 1032 | 638 | |||
| LH900/400 | 900 | 1170 | 776 |
The real details photo
Good Cooperation
Transaction history
Quality Certificate
Transport and Shipping
