solar pump controller/high pressure solar water pump/dc solar water pump system
solar pump controller/high pressure solar water pump/dc solar water pump system solar pump controller/high pressure solar water pump/dc solar water pump system
Submersible Solar Pump for Irrigation Feature:
a:This kind of machine is designed for block secondary splitting or squaring specially,
b:it can be instead of the dynamite blasting or traditional manual splitting device completely.
c:It can be widely used for reinforced concrete breaking or removing, such as the construction
d:building part demolition, bridge dismantling, demolishing underwater etc.
e:One complete machine including a pneumatic hammer and one set of forge plug and feathers
Technology Parameters
Model | Impeller | voltage (V) | Power (kW) | Max Flow (M3/H) | Solar panel power | Max Head (M) | Outlet (IN) | Outer Diameter (MM) | Weight (KG) |
3LH0.9/32-D12/100 | Screw | 11--18 | 80--220 | 0.9 | 200w | 32 | 0.75" | 76*460 | 6.7 |
3LH1.0/30-D24/80 |
| 22-36 | 45-150 | 1 | 150w | 30 | 0.75" |
| 7 |
3LH1.3/50-D24/140 |
| 22-36 | 80-200 | 1.3 | 200w | 50 | 0.75" |
| 7.2 |
3LH1.5/80-D24/210 |
| 22-36 | 100-270 | 1.5 | 270w | 80 | 0.75" |
| 7.5 |
3LH1.5/100-D24/270 |
| 22-36 | 140-350 | 1.5 | 360w | 100 | 0.75" |
| 8 |
3LH1.5/120-D36/500 |
| 32-54 | 320-800 | 1.5 | 800w | 120 | 0.75" |
| 9 |
3LH2.3/80-D48/500 |
| 42-72 | 480-950 | 2.3 | 1000w | 140 | 0.75" |
| 9 |
3LH2.3/110-D48/750 |
| 42-88 | 600-1200 | 2.3 | 1200w | 160 | 0.75" |
| 9.5 |
3LH2.3/125-D72/1000 |
| 42-88 | 800-1500 | 2.3 | 1500w | 180 | 0.75" |
| 9.5 |
3LHI0.9/32-D12/100 | Screw | 11--18 | 80--220 | 0.9 | 220w | 32 | 0.75" |
| 6.7 |
3LHI1.5/50-D24/140 |
| 22-36 | 80-200 | 1.3 | 200w | 50 | 0.75" |
| 7.2 |
3LHI1.5/80-D24/210 |
| 22-36 | 100-270 | 1.5 | 280w | 80 | 0.75" |
| 7.5 |
3LHI1.5/100-D24/270 |
| 22-36 | 140-350 | 1.5 | 360w | 100 | 0.75" |
| 8 |
4LH2.5/50-D24/270 | Screw | 22-36 | 140-350 | 2.5 | 360w | 50 | 1" | 100*480 | 9.5 |
4LH3/60-D36/500 |
| 32-54 | 300-700 | 3 | 700w | 60 | 1" |
| 10 |
4LH3.6/80-D48/750 |
| 42-72 | 450-1000 | 3.6 | 1000w | 80 | 1" |
| 10.5 |
4LH4/100-D72/1000 |
| 42-88 | 600-1300 | 4 | 1200w | 100 | 1" | 100*550 | 13.5 |
4LH3/120-D72/1000 |
| 42-88 | 800-1550 | 3 | 1600w | 120 | 1" |

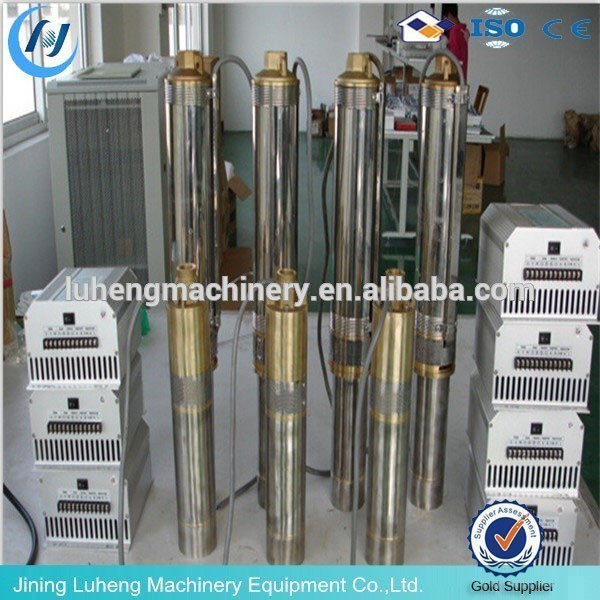

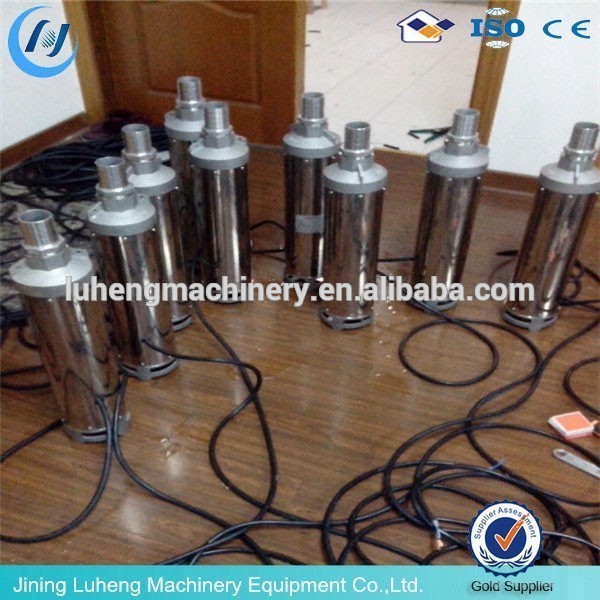

The real details photo
