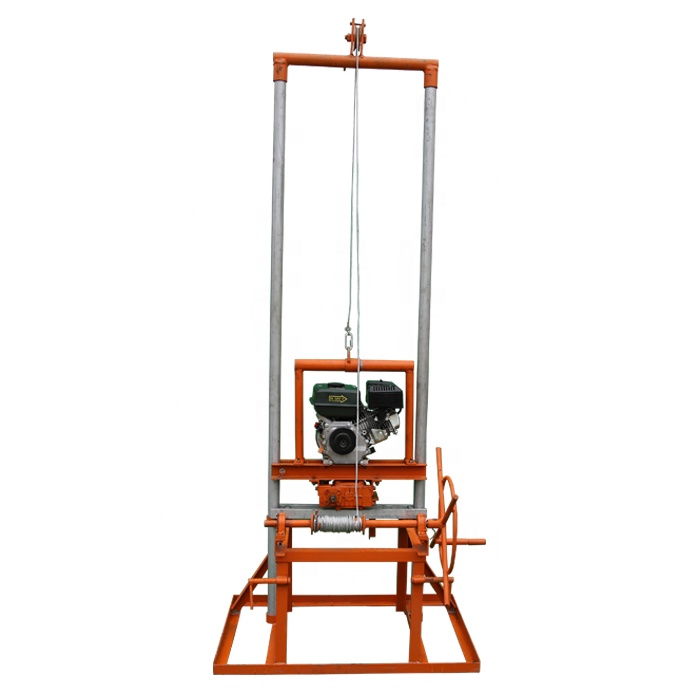

Water Well Drilling Rig
Features :
1. Light weight. The main engine is only weighted 140kg
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .
This machine is mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m.
It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 80m.
Well Drilling Rig Description:
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.
Well Drilling Rig Parameter:
Type | HW-80 |
Max. Drilling Diameter | 100-300mm |
Max. Drilling Depth | 60-80m |
Total Power | 10.2 kw |
Engine Power | 2.1kw |
Lifting Power | 1.5kw |
Pump | 2.2kw,220V(flow head 46m) |
Capacity of hoist | 1.0t |
Height of tower | 3.2m |
Total Weight | 150kgs |
Drilling Rod Length | 2m/piece |
Diameter of Drilling Rod | 42mm |
Well Drilling Rig Pictures :
1.What is drilling tip?
-----It is the drilling bit at the end of the drilling pipe,it can decide the diameter of the well.
The material is diamond three-wing rock drills,the diameter of tip is 100mm and 160mm,200mm or make as your need ,
we can customize the diammeter according to your requirement.
2 What is drilling Pipe(rod)?
-------It deccides how deep you can drill a well,the material is galvanized steel.
Its 1 inch diameter and 1.5m length /pcs.
We can use rotary drill rod to drill the hole,also can use circle tube probing .
3What kind of engine can we use ?
We can use gasoline engine and single phase electricity and 3 phases electricity motor.
4 where can we use this machine?
it can be used in the wild and outdoors.
for family/air condition/garden water well.
5 What is the suction water pump?
------With the high pressure,It is used to draw the sand,soil and other residues out of the well,and can clean the well after the well is finished.
