Portable Gasoline Generator
Features:
1. PERMANENT MAGNETIC ALTERNATOR:We choose permanent magnetic alternator which is brushless with inverter electronic control system.
2. DIGITAL INVERTER SYSTEM: Pure sine wave and THD less than 1%.High voltage multiphase AC power generated by the alternator and the AC power is then converted to DC. Finally the DC power is converted back to AC by the inverter unit. The inverter unit also smoothes and cleans the power.
3. HIGH QUALITY POWER OUTPUT: A sinewave inverter that guarantees commercial-quality electricity – making it ideal for use with frequency sensitive electrical equipment such as computers, TV sets, air condition and so on.
4. HIGH FUEL EFFICIENCY: As coupled with the inovation of alternator,this digital inverter generator can save 20% fuel consumption than other home use genset.
5. POWERFUL 4-STROKE OHV GASOLINE ENGINE: Compact size, high power, simple mechanism and easy starting.
The generator specification:
1. Portable compact open structure
2. Long run time - up to 12.5 hours
3. AVR to automatically regulate voltage
4. Oil alert to shut down engine automatically when low oil is detected
5. Circuit breaker to stop engine automatically when overloaded
6. Powers fridge, furnace, lights, TV, and much more
7. Light and easy to carry, provide electric power quietly
The generator parameter:
| Generador | Model | LH5500 | Engine | Model | LH170F |
| Type | AC Single-phase | MOQ | 1 set | ||
| Voltage regulate | AVR | Type | OHV, air-cooled, 4-stroke | ||
| Frequency | 50HZ | Displacement | 389CC | ||
| AC Voltage | 230V | Max. output (HP/rpm) | 5kw/3600rpm | ||
| Rated Power | 5000 watts | Ignition system | T.C.I | ||
| Max. Power | 5500 watts | Starting system | Manual or electric start | ||
| Power factor | COS φ=1 | Oil capacity | 0.6L | ||
| Fuel Capacity | 4.0 Galones (15L) | Noise 7m | <73dB | ||
| Run time 100% load | 8.5h | Optional | 12Volts DC | ||
| Run time 50% load | 13.5h | Electric start with recoil back-up | |||
| Package | Dimensiones L*W*H (mm) | 686×526×550 | 8"" rubber wheels & 2 handles | ||
| Net weight | 80Kgs | 7AH battery or 9AH battery | |||
| Loading Q"ty (20GP/40HQ) | 128/260 Units | Warranty | One year or 500 hours | ||

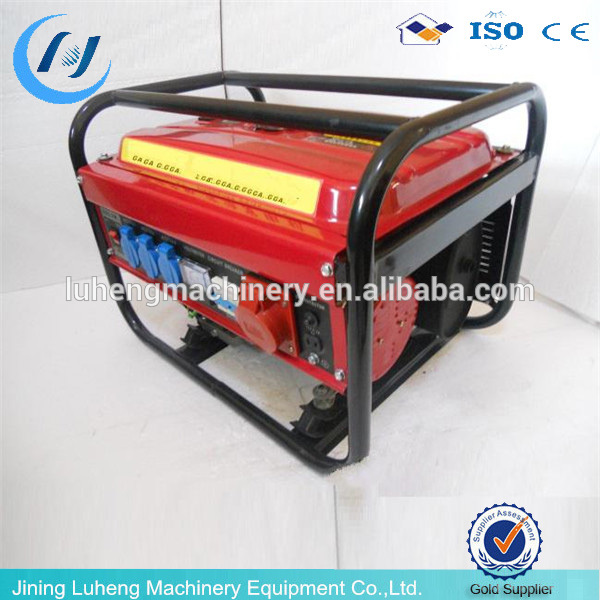

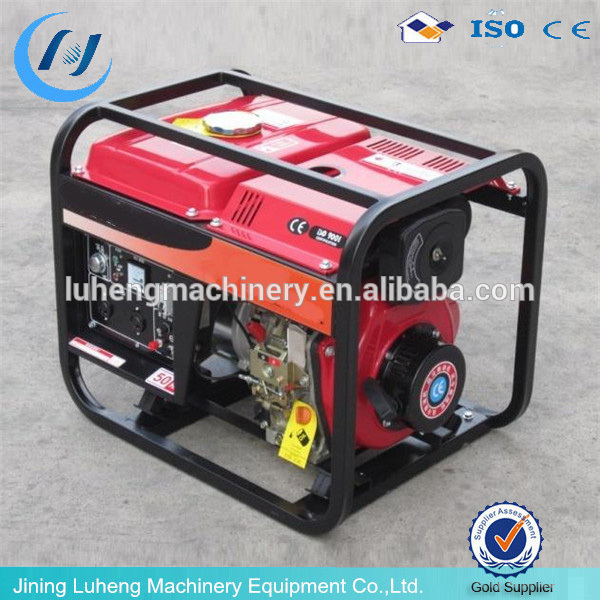

The generator picture:
