Water Well Drilling Rig
Features :
1. Light weight. The main engine is only weighted 140kg
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .
Well Drilling Rig Description:
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.
Well Drilling Rig Parameter:
Type | HW-80 |
Max. Drilling Diameter | 100-300mm |
Max. Drilling Depth | 60-80m |
Total Power | 10.2 kw |
Engine Power | 2.1kw |
Lifting Power | 1.5kw |
Pump | 2.2kw,220V(flow head 46m) |
Capacity of hoist | 1.0t |
Height of tower | 3.2m |
Total Weight | 150kgs |
Drilling Rod Length | 2m/piece |
Diameter of Drilling Rod | 42mm |

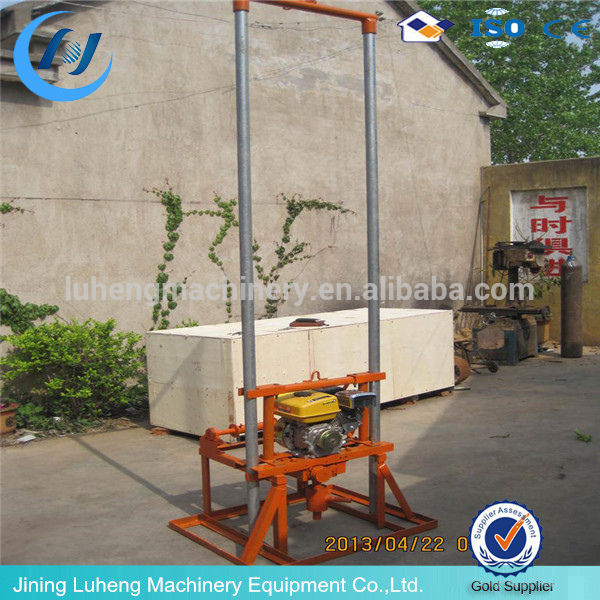

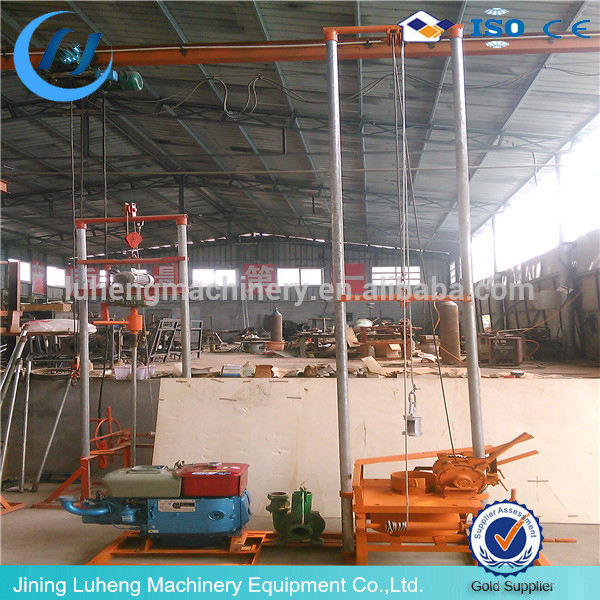

Well Drilling Rig Pictures :
