Home > Products > Wacker type gasoline/ diesel /electric vibratory earth soil hand held vibrating plate compactor

Wacker type gasoline/ diesel /electric vibratory earth soil hand held vibrating plate compactor

Click on the image to view the original image

Product：	views：6Wacker type gasoline/ diesel /electric vibratory earth soil hand held vibrating plate compactor
Branch：	LH
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:45

Product Details

Overview

Quick Details

Power(W):: 5.5HP

Weight:: 85kgs, 75-160kgs

Dimension(L*W*H):: 750*460*700mm

Condition:: New

Application:: road Machinery

Power Type:: gasoline,diesel, Gasoline/diesel

Brand Name:: LH

Model Number:: WPH90

Place of Origin:: Shandong, China

Certification:: CE

Max. Climbing angle:: 30°

Product name:: earth vibrating plate compactor

Engine type:: Customer can choose

Vibration frequency:: 70 HZ

working size:: 450X500,500X690

Compacting force:: 30KN

walking direction:: bothway

Working height of handle:: 680 mm

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1year

Supply Ability

Supply Ability:: 1000 Set/Sets per Month earth vibrating plate compactor

Packaging & Delivery

Packaging Details: regular packaging

Port: qingdao/dalian/shenzhen/ningbo

Mini road compactor, earth vibrating plate compactor

Features:

Shock absorber made of nature rubber ,has better absorption, which protects the engine and user friendly.

Can modify machine for different purpose upon client"s request

a. Add PU plate for use on fragile surface, it"s absorb impact to the surface.

b. Add water tank for use on asphalt surface, anti-stick.

c. Add wheels for easier transportation

Many power source options to choose from, such as Honda, Robin and Loncin.

Electric power source also available.

Product Description

Plate compactor description :

1. Ductile steel base plate provides better durability

2. Open plate provides self cleaning

3. Centrally located lifting bar allows easy transportation

4. Sealed belt cover to prevent sand and soil in

5.Built-in wheel for easy transportation

6.Optional engines:Honda,Robin,Loncin,Lifan gasolien engines and diesel engines

Plate compactor description:

Model	LH-20	LH-30	LH-30G	LH-30C
Engine	GX160	GX160	GX160	CF170
Power	5.5HP	5.5HP	5.5HP	5HP
Working area	430*550mm	420*690mm	500*690mm	500*690mm
Walking mode	One-way	Hydraulic double-way	Machinery double-way	Machinery double-way
Vibrating force	20KN	30KN	30KN	30KN
Frequency	70HZ	70HZ	70HZ	70HZ
Grade ability	25%	25%	25%	25%
Starting mode	Hand	Hand	Hand	Hand/electric
Packing size	760520700mm	7805601060mm	7805601060mm	7805601060mm
weight	85kg	140kg	160kg	160kg

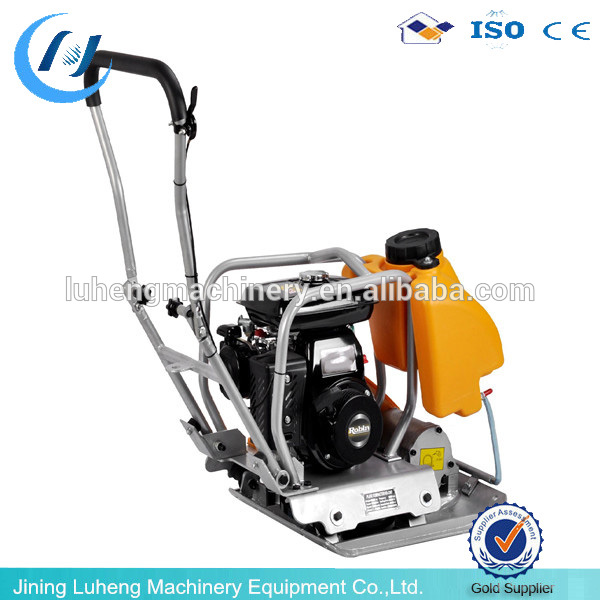

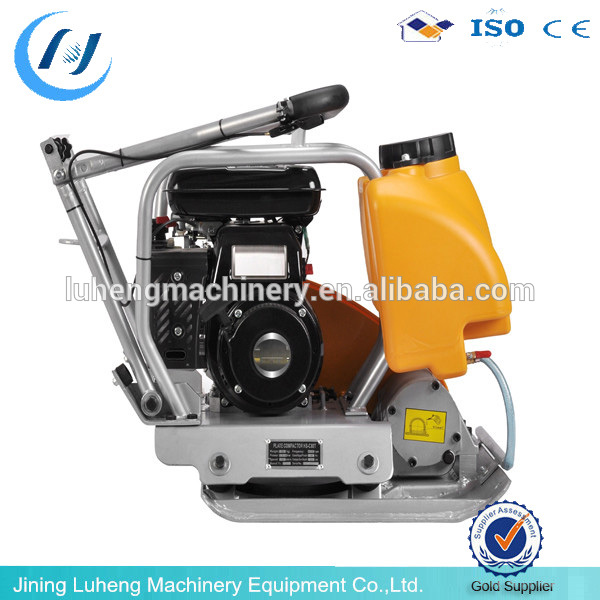

Plate compactor pictures:
