Centrifugal thermal oil pump , Screw Rotor Pump
Application:
1. To handle industrial and domestic wasterwater, and muddy water containing solid particles and short fibre;To handle mediums such as oil remains in oil tankers,oil water,oil residue and etc.;
2. To handle thick paste ,emulsified paste,unguent cosmetics and etc.;
3. To handle adhesive starch ,cooking oil ,honey, pulpy sugar, mashed fruit,cream and other leftovers;
4. To handle paste in the industries of brewage,construction ,mining ,printing ,papermaking and etc.
Double screw pump description:
1. 3G high temperature double insulation jacket asphalt pump three screw bitumen pump is small pressure fluctuation, stable capacity.
2. It’s special designed for bitumen and heavy oil by RONDA.
3. Pump is with double jacket casing which can be heated by hot steam, thermal oil, etc to reduce the viscosity of fluids with easy solidification.
4. Pump can be made of special material, such as bronze, for liquid with low flashing-point like gasoline
Double screw pump parameter:
| Model | Flow(m3/h) | Head(m) | Suction Dia(mm) | Input Dia(mm) | Motor power(KW) | Speed(r/min) | Efficiency (%) |
| 25FSB-10L | 1.5 | 10 | 25 | 20 | 1.5 | 2900 | 32 |
| 25FSB-18L | 3.6 | 18 | 2.2 | 2900 | 25 | ||
| 40FSB-15L | 5 | 15 | 40 | 32 | 1.5 | 1450 | 44 |
| 40FSB-20L | 10 | 20 | 3 | 2900 | 39 | ||
| 40FSB-30L | 30 | 4 | 32 | ||||
| 50FSB-20L | 15 | 20 | 50 | 40 | 3 | 51 | |
| 50FSB-25L | 25 | 3 | 48 | ||||
| 50FSB-30L | 30 | 4 | 42 | ||||
| 50FSB-50L | 15 | 50 | 50 | 32 | 11 | 33 | |
| 65FSB-32L | 29 | 32 | 65 | 50 | 7.5 | 45 | |
| 80FSB-20L | 50 | 20 | 80 | 65 | 5.5 | 66 | |
| 80FSB-30L | 30 | 7.5 | 63 | ||||
| 80FSB-34L | 34 | 11 | 63 | ||||
| 100FSB-40L | 100 | 40 | 100 | 80 | 18.5 | 70 | |
| 100FSB-50L | 100 | 50 | 100 | 65 | 30 | 62 |

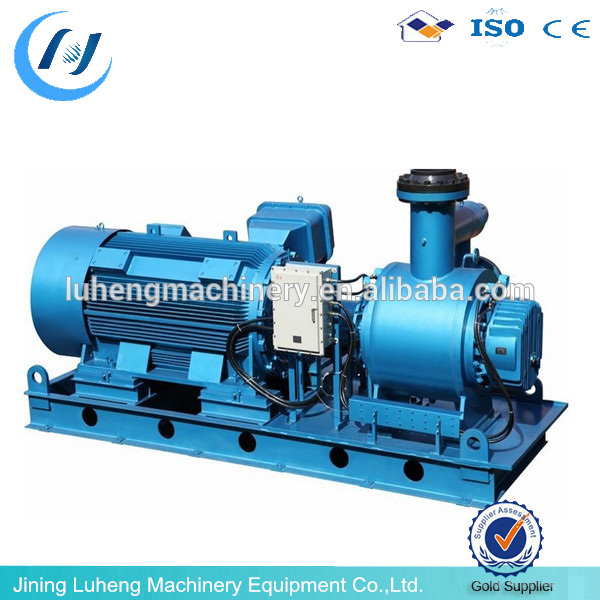

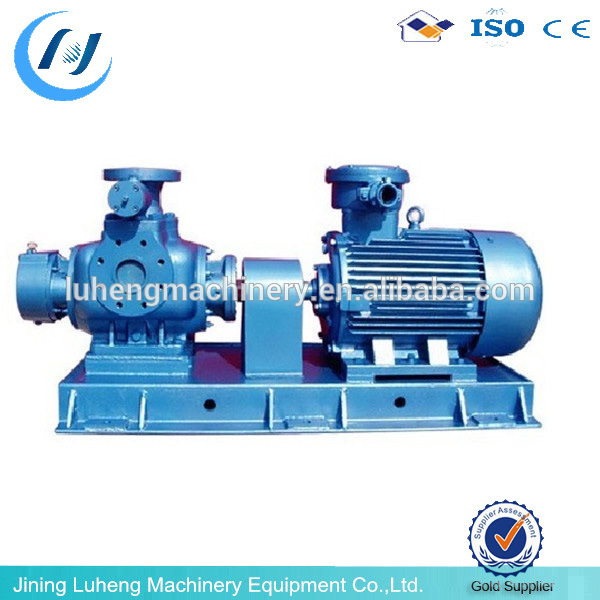

Double screw pump pictures:
