PVC Hollow brick board
Features:
1. High strength resistance
2. High temperature resistance
3. Impact resistance
4. Earthquake resistance
5. Non-absorbent
6. No defornation
7. No cracking
8. Long life-more than 6 years
9. To steam curing
10. It Can be recycled
11. excellent designment
12. Good brand=high quality + low price
PVC board description:
PVC pallet is the best material in block making industry as the carrier of the green blocks, it has the advantages of highest strength with smooth surface, moisture proof and heat-resistant, it can maintain stable performance under high temperature. Waterproof,anticorrosive,ametabolic and recyclable,moisture resistant,lightweight.
PVC board parameter:
Main Technical Data of LH PVC Brick Pallets
Item | Specifications |
Density | 1800kg/m3 |
Bending Strength | more than 70 N/mm ² |
Flexural Modulus | more than 4.5×10³Mpa |
Impact Strength | more than 60 KJ/m² |
Absorption | less than 0.5% |
N/mm² | more than 40 |
Temperature tolerance | 100 degree |
Surface wear | less than 0.04g/100r |
Aging | More than 6 years |
Data reference of different size of LH PVC blocks pallets
Item | Specification (mm) | Weight | QTY load in 20GP |
(Kg/pcs) | (Net weight About 20 T) | ||
1 | 485 *400*18mm | 6.3kg | 3175 Pcs |
2 | 608 * 530 *21mm | 12.2kg | 1640 Pcs |
3 | 850*680*17mm | 17.7kg | 1130 Pcs |
4 | 850*780*17mm | 20.3kg | 985 Pcs |
5 | 850*780*20mm | 23.9kg | 835 Pcs |
6 | 760*760 * 25mm | 26kg | 770 Pcs |
7 | 1100*680*20mm | 27kg | 740 Pcs |
8 | 1100*680*25mm | 33.7kg | 590 Pcs |
9 | 1200*850*20mm | 36.7kg | 545 Pcs |
10 | 1100*700*30mm | 41.6kg | 480 Pcs |

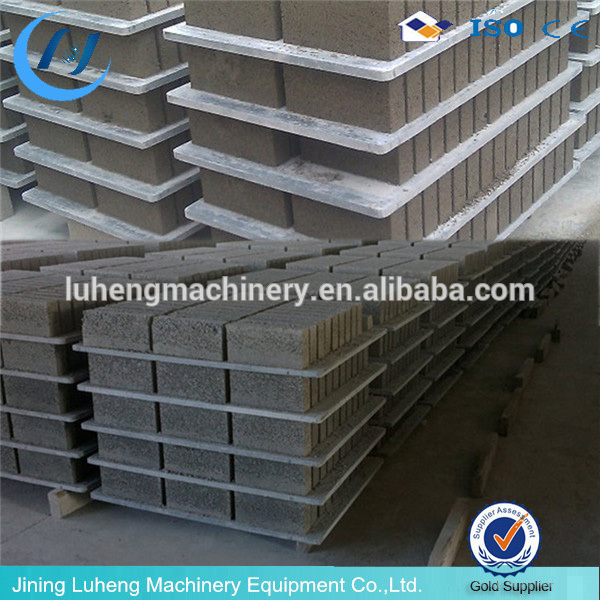

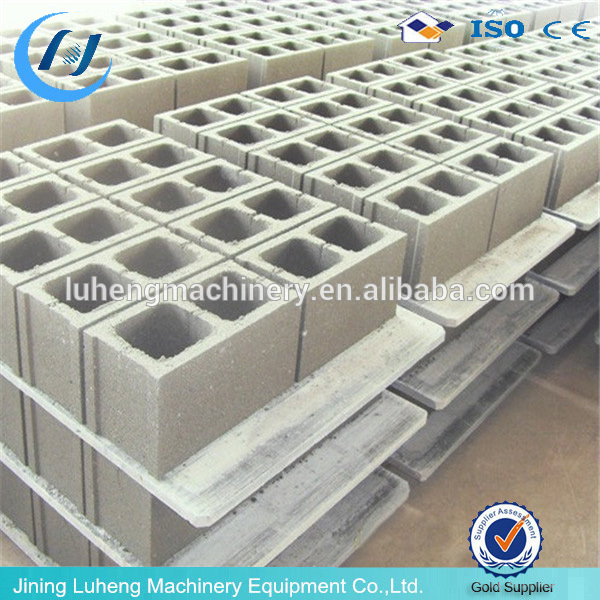

PVC board pictures:
