Railway Flat Transfer Car
Features:
1.Load:2-18ton
2.Track gauge:600mm,900mm
3.Wheel base:550/600/750/1000/1100
Product Description
Flat Mine Car Description:
LH-PB mining flat deck car is suitable for underground mining, mining, along the underground tunnel and surface industrial site transportation equipment or other items.
2ton, 3ton,5ton,10ton,15ton,18ton,20ton,25ton,26ton,30ton,35ton, 40ton, 45ton load are available for your choice.we can also manufacture the mine flat car according to your order
Flat Mine Car Parameter:
| Model | loading (kg) | L(mm) | W(mm) | H(mm) | Rail gauge (mm) | Wheel Dia.(mm) | Pulling Height (mm) | Weight (kg) |
| LH-PB5-9 | 5000 | 3450 | 1320 | 480 | 900 | 350 | 320 | 910 |
| LH-PB10-6 | 10000 | 3460 | 1300 | 304 | 600 | 250 | 230 | 910 |
| LH-PB10-9 | 10000 | 3460 | 1300 | 304 | 900 | 250 | 230 | 1030 |
| LH-PB13-6 | 13000 | 3350 | 1400 | 342 | 600 | 300 | 270 | 1015 |
| LH-PB15-6 | 15000 | 3460 | 1300 | 357 | 600 | 300 | 320 | 1160 |
| LH-PB15-9 | 15000 | 3460 | 1300 | 357 | 900 | 300 | 320 | 1240 |
| LH-PB18-6 | 18000 | 3350 | 1400 | 346 | 600 | 300 | 270 | 1132 |

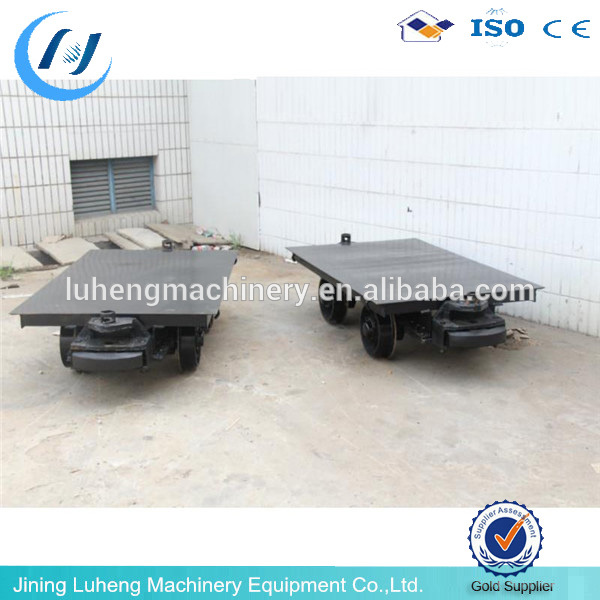

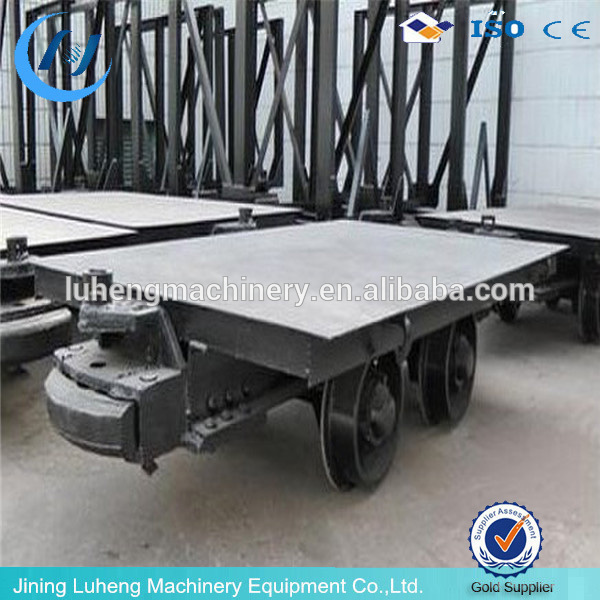

Flat Mine Car Pictures:
