Overview
Quick Details
- Place of Origin:
- Shandong, China
- Brand Name:
- LH
- Model Number:
- LH
- Power Source:
- Electric
- Application:
- Auto, Cranes
- Capacity:
- 300kg~4500kg
- The rope:
- Wire Rope
- Hook type:
- Single type/double hooks
- Product name:
- Electric Winch with certification
- IP grade:
- IP65
- The hooks:
- Forged
- Controller:
- With cable or remote control
Supply Ability
- Supply Ability:
- 3500 Set/Sets per Week Electric Winch with certification
Packaging & Delivery
- Packaging Details
- regular packaging
- Port
- qingdao/dalian/shenzhen/ningbo

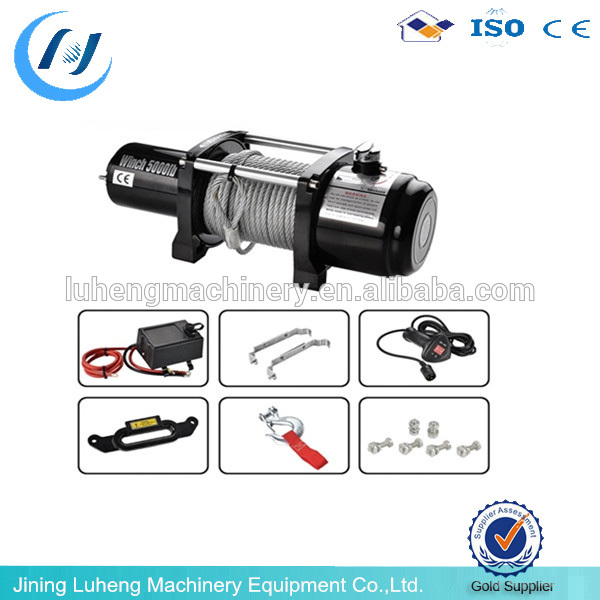

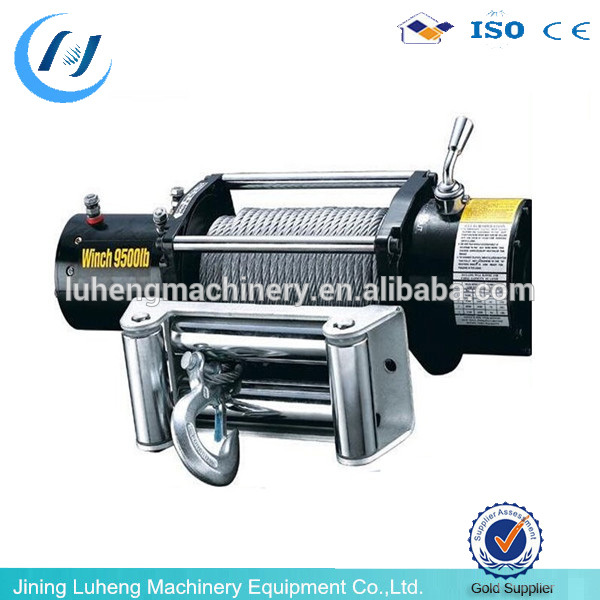

Electric Winch with certification
Features:
1. It is generally installed in the middle of the front car and connected with
the car frame, exposed or hidden in the bumper.
2. Winch traction is valued by pound which can be converted to ton or kilogram.
3. The more cycles of winch wire rope on the reel, the less pull the outer cycle to bear.
4. The best advantage is that it can be normally used in condition of vehicle switch off while others can not.
5. Easy and multi-position installed, fast movable.
6. High density & high strength wire rope, durable and firm.
Product Description
| Suitable tonnage | 0.5T | 0.8T | 1.5T | 2T | 2.3T | 3T | 3.2T | 3.6T | 4.1T | 5T |
| Motor(KW) | 0.7 | 1.1 | 1.3 | 4.0 | 4.1 | 4.8/5.0 | 4.0/4.8 | 4.2/4.6 | 4.2/4.6 | 5.5/4.8 |
| HP | 0.9 | 1.47 | 1.7 | 5.5 | 5.5 | 6.6/6.7 | 5.5/6.6 | 5.6/6.2 | 5.6/6.2 | 7.3/6.4 |
| gear reduction ratio | 153:1 | 153:1 | 218:1 | 195.8:1 | 195.4:1 | 187.2:1 | 218.4:1 | 312.4:1 | 312.4:1 | |
| overall size | 285* | 345* | 450* | 537* | 537* | 537* | 540* | 547* | 547* | 565* |
| 105* | 118* | 125* | 218* | 218* | 218* | 218* | 180* | 180* | 310* | |
| 105 | 121 | 215 | 165 | 165 | 165 | 165 | 247 | 247 | 280 | |
| Packing size | 49* | 57* | 57* | 57* | 57* | 60* | 60* | 60* | ||
| 19* | 19* | 19* | 19* | 19* | 23* | 23* | 38* | |||
| 34.5 | 34.5 | 34.5 | 34.5 | 34.5 | 38.5 | 38.5 | 40 | |||
| Installation size | 45* | 114* | 114* | 114* | 114* | 114* | 114* | 114* | 114.3* | |
| 124 | 166.5 | 254 | 254 | 254 | 254 | 254 | 254 | 254 | ||
| current | 465A | 475A | ||||||||
| gross weight(kg) | 7/8 | 12/13 | 26/28 | 35/37 | 36/38 | 37/39 | 38/40 | 53/55 | 54/56 | 78/80 |
| Diameter of wire rope | 4mm | 5.4mm | 6.4mm | 8.1mm | 8.3mm | 9.1mm | 9.5mm | 11mm | 11.5mm | 13.5mm |
| The length of the wire rope | 15m | 15m | 20m | 28m | 28m | 28m | 26m | 28m | 28m | 30m |
| 12V | 12V/24V | |||||||||
Electric winch parameter:
