Earth boring machine, Garden Earth Auger
Features:
1. The power earth auger is going to make boring boles easier and faster for fence installation,tree and bulb planting and other outdoor needs.
2. The engine provides powerful,efficient performance
3. Large manual recoil startup provides reliability and allows for quick starting ability.
4. Anti-vibration foam grip handles that reduce fatigue.
5. Translucent fuel tank allow you easily keed an eye on fuel levels
6. Works with angers from 3 in. to 14 in. in diameter for versatile auger uses
Earth boring machine application:
(1)The ground auger is widely used for planting digging in the seedling garden greening projects on slope, sand, and hard land, the peripheral unearthed of digging up big trees, digging holes of fence buried pile, fertilization burrowed of fruit trees, intertilling and weeding of landscaping projects, etc.
(2)The ground auger digs not less than 80 pits/h, and can dig 640 pits one day counted by 8 working hours, that is, it works more than 30 times as much as manual work.
(3)For intertilling and weeding, the digging width is greater than 50 centimeters, and the area is not less than 800 square meters/h, really accomplishing full automatic operation process.
Earth boring machine parameter:
Item No. | LHW698 |
Engine Model | 1E48F |
Engine Type | Air cooled, 2 stroke,single cylinder |
Displacement | 68cc |
Engine Power | 2.2kw/8000rpm |
Carburetor Type | Diaphragm Type |
Idling Speed | 2700-3000r/min |
Fuel Tank Capacity | 1200ml |
Gear Case Output rate | 40:1 |
Gear Case Type | Diagonal gear wheel |
Output Shaft Size | 20/22mm |
Handle Type | HY-S |
Operator | Single operator |
Drive Drill Bit Dia. Ability | 80/100/120/150/200/250/300-800/1000mm |
Recommend Drill Bit | 150/200/250-800/1000mm |
N.W/G.W | 8.2kg/9.8kg |
Notice : If you need more length, can be add extender | |

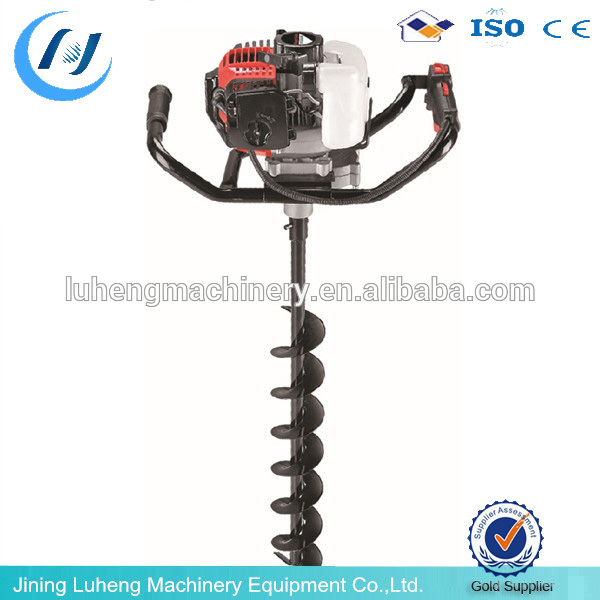

Earth boring machine pictures:
