Explosion proof junction box, Cross Type Junction Box
Features:
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spay.Shell compact structure,high density material strength
explosion-proof performance,the surface of plastic power adhesion ability with good
anti-orrosion,the surface smooth,elegant appearance.
2.Inlet or outlet of the Circular Explosion-proof Junction Box has many kinds of modes and specifications.
3.Thread specification can be specially designed.
4.Wiring with steel tube or cable.
5.Circular design,more space saving.
Junction box application:
1.Hazardous:division 1&2,or 20.21&22.
2.Explosive gas atmospheres:class IIA.IIB.IIC or inflammable dust environment.
3.Indoor or outdoor (IP65.IP66.IP67*)
4.Temperature class :T1-T4/T5/T6.
5.The Circular Explosion-proof Junction Box can be widely uesd in the fields of oil ,chemical industry, spaceflight ,war industry and so on.
Junction box parameter:
| Voltage(V) | 380 |
| Current(A) | 20 |
| Ex-mark | Exd II BT6,CT6 |
| Erosion proof classe | W,WF1,WF2 |
| Protective class | IP65 |
| Cable diameter(mm) | 8~26 |
| Thread(G") | Length(mm) | Depth(mm) |
| 1/2 | 170 | 66 |
| 3/4 | 180 | 66 |
| 1 | 195 | 66 |
| 1 1/4 | 200 | 87 |
| 1 1/2 | 215 | 87 |

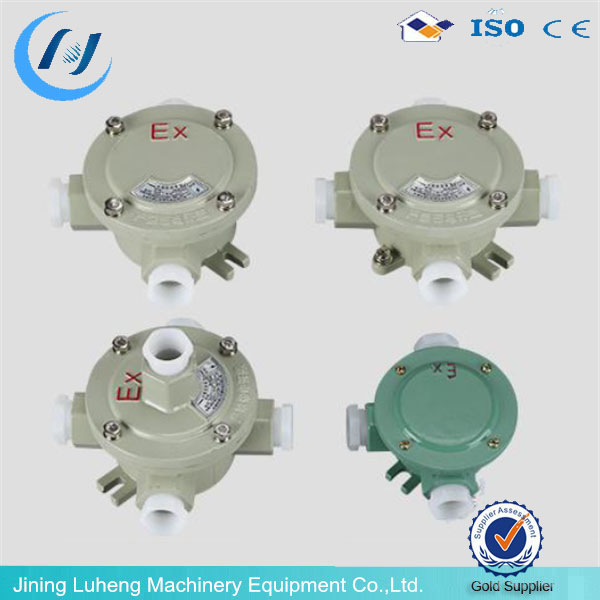

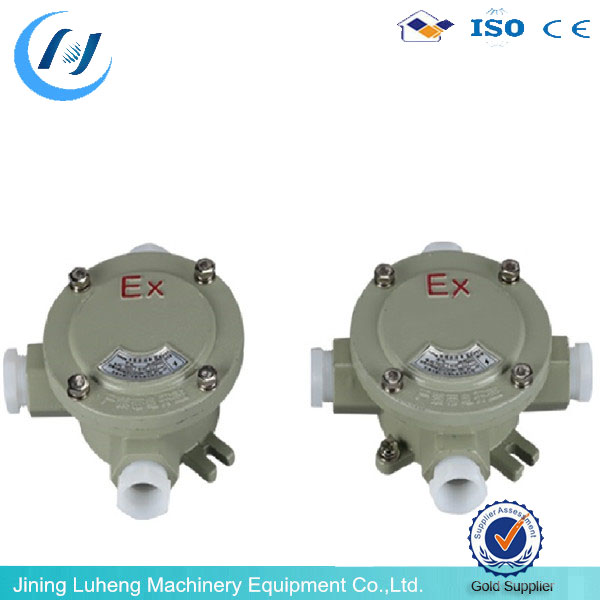

Junction box pictures:
