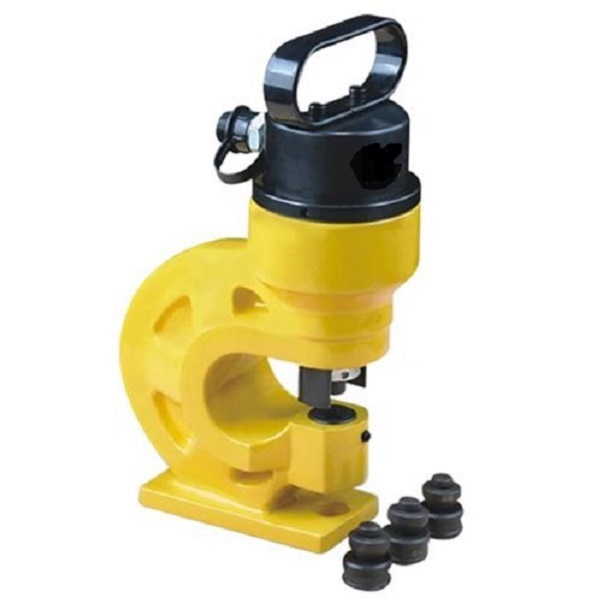

Hydraulic steel sheet metal plate punching hole machine for leather and foam
Product Introduction
CH -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Technology Parameters
Type | Output | Thickness iron | Thickness copper | Throat Depth | Weight | Model(mm) |
| CH-60 | 31T | 6mm | 10mm | 95mm | 19kg | 10.5,13.8,17.5,20.5 |
| CH-70 | 35T | 10mm | 12mm | 110mm | 38kg | 10.5,13.8,17.5,20.5 |
| CH -80 | 50T | 16mm | 20mm | 115mm | 50kg | 16,18,22,25 |
The real details photo
