We can manufacture the pump according to your order
Farm irrigation submersible water pump, High flow submersible pump
Features:
1.long operating life
2.volume small ,light weight
3.operate simple
4.safe and reliable
Structure:
1. Submersible pump is a whole of motor and pump body. It’s the hydraulic machinery dives into water for pumping. Vertical, with diversion shell or guide vane. Centrigual or mixed flow impeller type.
2. Pump and submersible motor are direct connected or coaxial.
3. Seen from the driven direction, the shaft make clockwise rotation generally.
Parameter:
Model | Flow(m3/h) | Head(m) | Power (kw) | Rotate Speed (r/min) | Inner Diameter (mm) | Weight(kg) |
QS10-30/2-2.2 | 10 | 30 | 2.2 | 2850 | 45 | 43 |
QS10-60/2-4 | 10 | 60 | 4 | 2850 | 45 | 57 |
QS15-26/2-2.2 | 15 | 26 | 2.2 | 2850 | 45 | 45 |
QS15-52/2-4 | 15 | 52 | 4 | 2850 | 45 | 62 |
QS20-30/2-3 | 20 | 30 | 3 | 2850 | 65 | 48 |
QS20-54/4-5.5 | 20 | 54 | 5.5 | 2850 | 65 | 72 |
QS25-17/2-2.2 | 25 | 17 | 2.2 | 2850 | 76 | 43 |
QS25-34/2-4 | 25 | 34 | 4 | 2850 | 76 | 65 |
QS30-26/2-5.5 | 30 | 26 | 5.5 | 2850 | 76 | 78 |
QS40-40/2-7.5 | 40 | 40 | 7.5 | 2850 | 76 | 85 |
QS65-13-4 | 65 | 13 | 4 | 2850 | 102 | 67 |
QS100-17-7.5 | 100 | 17 | 7.5 | 2850 | 102 | 85 |

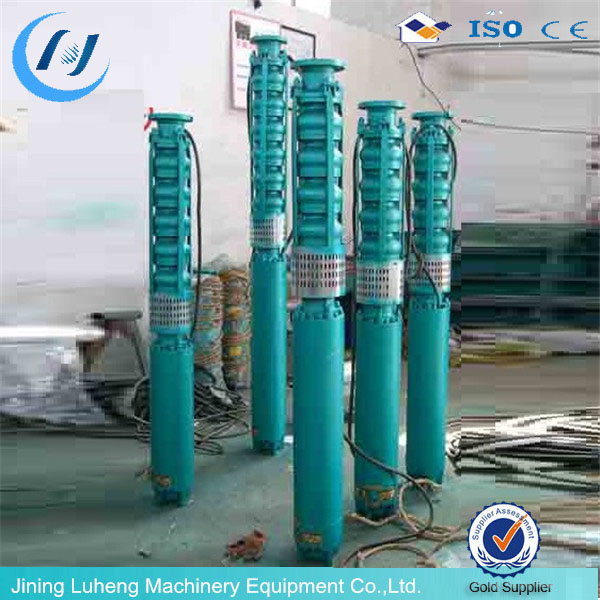

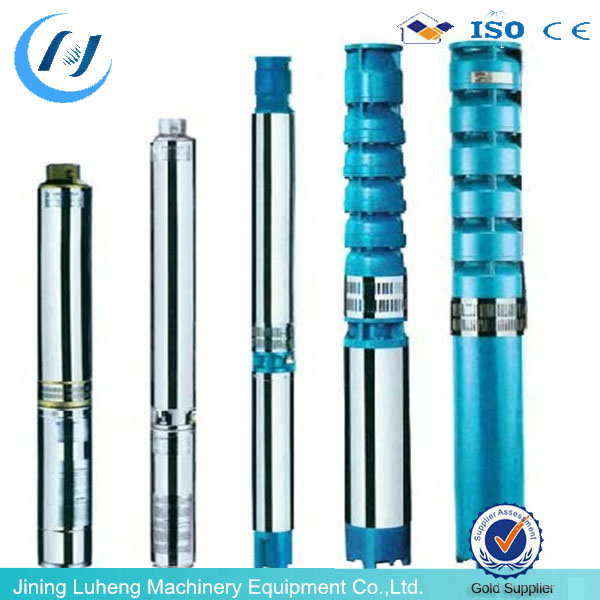

Pictures:
