Concrete Cover Meter,Rebar Locator,Steel Bar Position Detector
Concrete Cover Meter,Rebar Locator,Steel Bar Position Detector
Product Introduction
Features:
1. Multi function integrated rebar detector = rebar locator + rebar corrosion detector;
2. Store data in USB
3. This device can generate rebar distribution map and rebar corrosion potential contour graph;
4. Powerful professional analysis-process software allows for the automatic generation of test reports
HW-DX is a multi-functional integrated rebar detector for non-destructive measurement of concrete cover and rebar diameters and detection of rebar locations, as well as for detectionthe corrosion content of a rebar.
Technology Parameters
| Number | Item | SPEC | |
| 1 | Bar diameter application range(mm) | Φ6 – Φ50 | |
| 2 | maximum value permissible error of Bar diameter | ≤±1 | |
| 3 | Protective layer thickness measuring range | ||
| The first measuring range (mm) | 6 - 90 | ||
| The second measuring range (mm) | 7-180 | ||
| 4 | The maximum error of reinforced protective layer thickness test value | ||
| The first measuring range (mm) | The second measuring range (mm) | ||
| 6 - 59 | 7 - 79 | ≤±1 | |
| 60 - 69 | 80 - 119 | ≤±2 | |
| 70 -90 | 120 - 180 | ≤±4 | |
| 5 | Work environment condition | ||
| Work temperature ℃ | -50 | ||
| relative humidity RH | < 90% | ||
| 6 | power supply mode | Alkaline cell X 6 | |

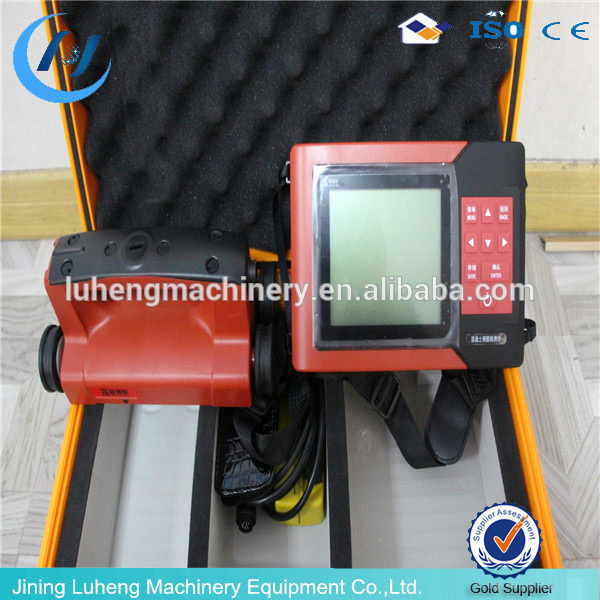

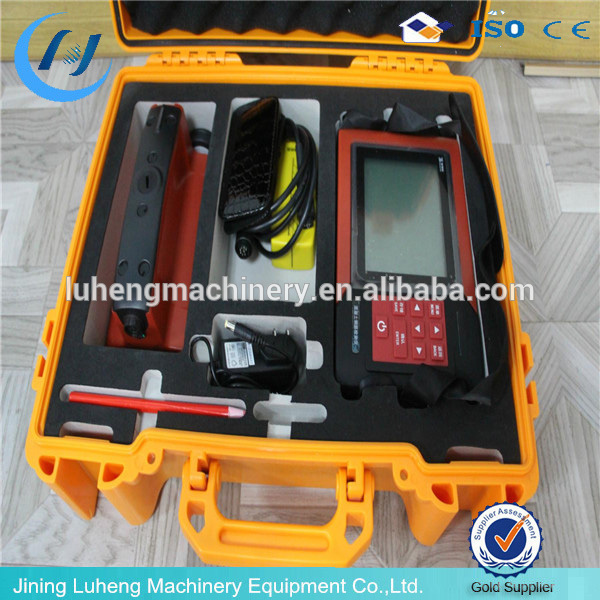

The real details photo
