Hydraulic breaker hammer
Features:
1. Easy to operate, just turn the handle to make it work.
2.Time and labor saving, drilling fast and high efficiency.
3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole(max depth 6) and and <45° upward hole.
5.Light drilling tools, it is easy to carry.
Rock Hammer Application
LH-200 Rock Drill is a very efficient machine,composed of gasoline engine, Air pump, rock drill. It adapts to these outside situations without water and electronic power. Meanwhile it is a hand- held drill, during operation,rock power is blown away by the compressed air produced by the machine itself. .Its suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipment, and especially suits the projects that the machine has to be carried at any time and in any area.
Rock Hammer Parameter
| Engine Type | 44mm, Single cylinder, air cooling, 2 stroke |
| Displacement | 40~70CC |
| Fuel | mixed oil 25(gasoline:1 two-stroke engine oil) |
| Fuel Tank Capacity | 1.5 L |
| Max power and speed | 1.8KW/6500r/min |
| Max torque and speed | 3.5N.M/5000r/min |
| Fuel Consumption Rate | ≤ 0.6L/h |
| Impact Frequency | 700-1500BPM |
| Impact Energy | 20~55J |
| Starter system | Hand pull start |
| Accessories | drill(tamping head),chisel,maintenance tool kit,oil can |
| Package | lined with foam +Master Carton |
Outside packing dimension (L x W x H) mm | 725×390×325mm/1pcs |
| Outside packing Net/Gross Weight(kgs) | 20.5/26.5kgs |

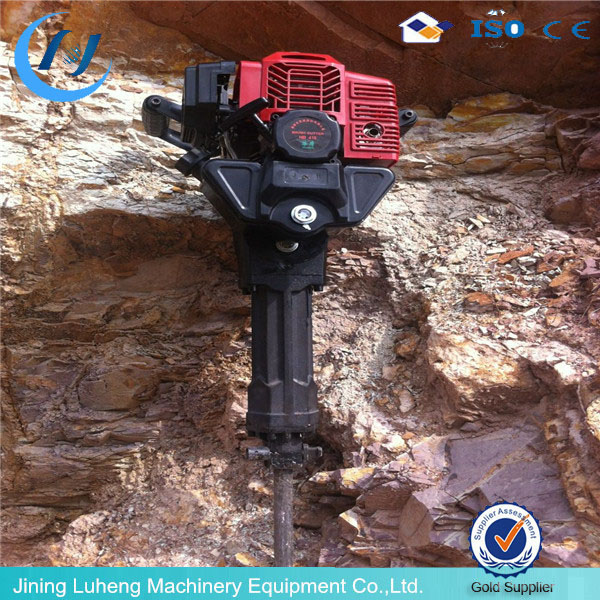

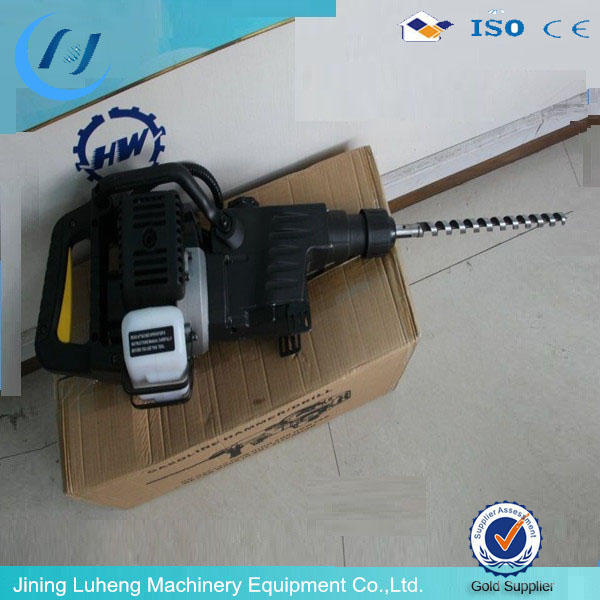

Rock Hammer Pictures
