- Power(W):
- 9.5HP/6.5KW
- Dimension(L*W*H):
- 750*420*650mm
- Weight:
- 90kg
- After-sales Service Provided:
- Video technical support, Online support
- Warranty:
- 1 Year
- Applicable Industries:
- Construction works
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- LH
- Features:
- Hand-Push
- Certification:
- ISO
- UNIQUE SELLING POINT:
- Low Maintenance Cost
- Product Name:

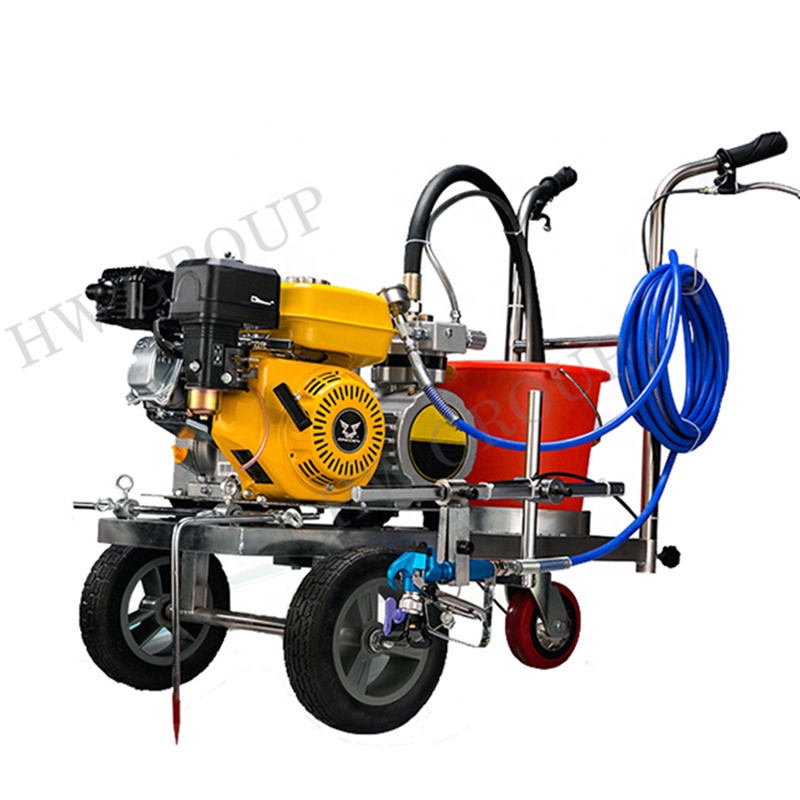

- Manual Road Line Marking Machine with Wide Marking Shoe for sale
- Marking rate:
- 0.5-3KM/H
- Name:
- Playground spraying marking machine
- Application:
- City Road Line Marking
- Marking width:
- 10 ~ 450mm (adjustable)
- Spraying thickness:
- 0.2 ~ 0.4mm
- Paint pump maximum flow:
- 8L/min
- Max output pressure:
- 250bar
- High pressure pipe length:
- 15m
- Tank capacity:
- 10L
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 75X42X65 cm
- Single gross weight:
- 90.0 kg
- Package Type:
- regular export wooden box packaging for manual Road Line Marking Machine with Wide Marking Shoe for sale ,Playground spraying marking machine
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 30 >30 Est. Time(days) 15 To be negotiated
Introduction for road marking machine:
The road marking machine, a road construction machine that is widely used on roads, highways, parking lots, plazas and runways to draw different restrictions, guidelines and warnings on the flat ground. The road marking machine has played a huge role in urban planning and road construction with its advantages of fastness, efficiency and accuracy, and road marking machine has saved the construction period and economic investment of the road construction to the greatest extent.

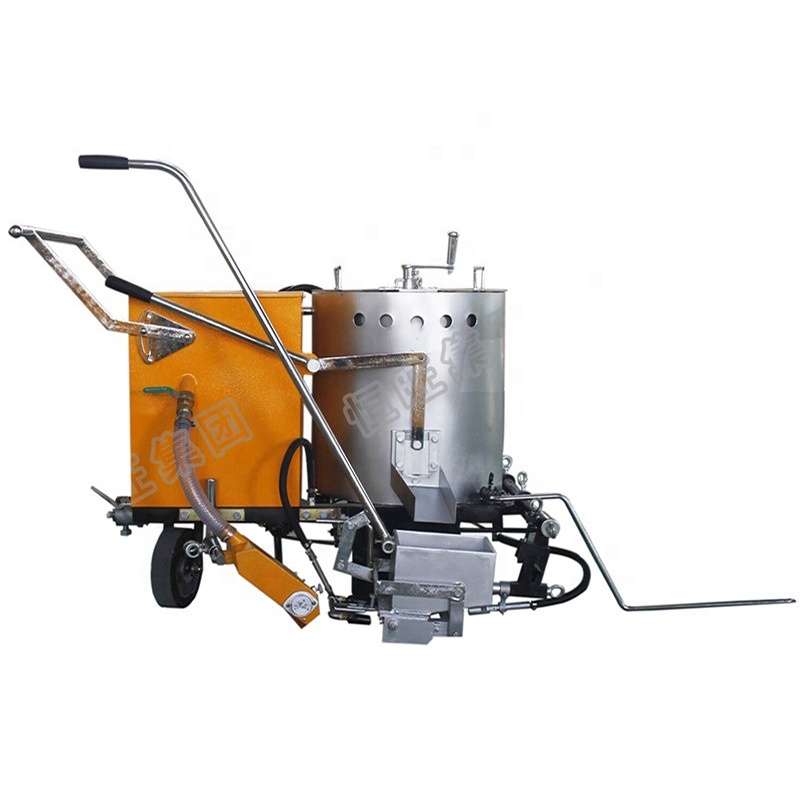

Introduction for hot melt road marking machine:
Hot melt road marking machine is gradually developed with the development of hot-melt coating, and it is a kind of machinery with high degree of automation. The construction requires a set of several sets of equipment to complete the construction functions from the melt to the scribing. The set of equipment is generally composed of a hot melt kettle, a scribing machine (including a zebra crossing machine), a pre-marking machine, and a lower coating machine. Of course, users can choose different models, different grades and different functions according to their own economic strength, engineering quantity and specialization degree. In the configuration, the hot melt road marking machine can be divided into three types: hot-melt scraping type, hot-melt extrusion type and hot-melt spraying type according to different scribe lines.
Introduction for cold paint road marking machine:
cold paint road marking machine is one of the oldest conventional type of markings. This type of road marking machine is generally completed by a normal temperature marking machine. According to the different way of scribing, the cold paint road marking machine can be divided into two types: high pressure airless type and low pressure air assist type; it is divided into normal temperature flux type, normal temperature water type and heating solvent type according to the type of applicable coating. Three types (generalized ambient temperature marking machinery also includes two-component type, especially two-component spraying type, which is a broad-spectrum marking machine with both conventional ambient temperature coating and two-component coating spraying function)
cold plastic road marking machine:
We will send cold plastic road marking machine picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .
Different machines" package will be different. We usually supply export wooden box ,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .
Road roller
91.8% Response Rate
Concrete screed
91.8% Response Rate
light tower
91.8% Response Rate
Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of road marking machine. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
Why choose us?
Q1. Are you manufacturer or trader?
A: We are manufacturer of road line marking machine, Actually, we produce most of the parts in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of B/L.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We"d like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Contact us for more details about price,packing,shipping and discount.
TUST YOU WILL LIKE OUR DESIGNS & PRICE.
