Auto Optical Level, Optical Level Instrument
Features:
1. superior telescope
2. precise reliable automatic compensator
3. quick collmation
4. horizontl angle measurement
5. Rapid, Easy Setup
6. Wholesell factory price, original producst
Optical Level Application
The optical level machine is designed for construction and engineering , it meets the demand of accurate leveling, these automatic levels set up fast and are easy to use. The magnetically-dampened, wire-hung compensator provides optimum range and accuracy. A compensator lock protects the instrument during transport or storage and also functions as a compensator checking tool. The top-mounted optical peep-sight provides quick reference.
Other features include a precise focusing knob, horizontal circle, right angle prism for easy bubble viewing, and fine motion knobs on the left and right sides with friction-braked rotation and endless horizontal drive. Water-resistant, sealed construction.
All models include a plumb bob, Allen wrench, adjusting pin, instruction manual, and hardshell carrying case.
Optical Level Specification
| Laser Level Model | LH10-22 | LH10-26 | LH10-28 | LH10-32 |
| Magnification | 22X | 26X | 28X | 32X |
| Image | Erect | Erect | Erect | Erect |
| Objective Aperture | 36mm | 36mm | 36mm | 36mm |
| Field of View | 1°20" | 1°20" | 1°20" | 1°20" |
| Minimum Focusing Distance | 1m | 1m | 1m | 1m |
| Stadia Ratio | 100 | 100 | 100 | 100 |
| Setting Accuracy | 0.5’’ | 0.5’’ | 0.5’’ | 0.5’’ |
| Compensating Range | ±15" | ±15" | ±15" | ±15" |
| Standard Deviation for 1Km Double Run Levelling | ±3.0mm | ±3.0mm | ±2.5mm | ±2.5mm |
| Circular Level Sensitivity | 8’/2mm | 8’/2mm | 8’/2mm | 8’/2mm |
| Horizontal Circle Graduating | 1° or 1gon | 1° or 1gon | 1° or 1gon | 1° or 1gon |
| Net Weight | 1.8kg | 1.8kg | 1.8kg | 1.8kg |

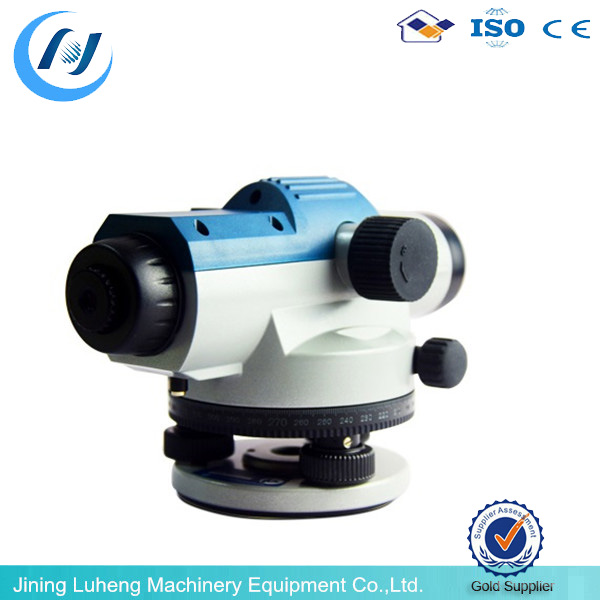

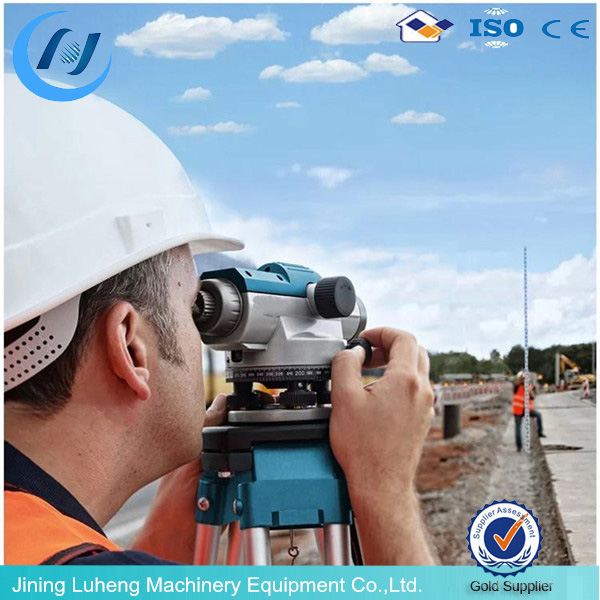

Optical Level pictures
