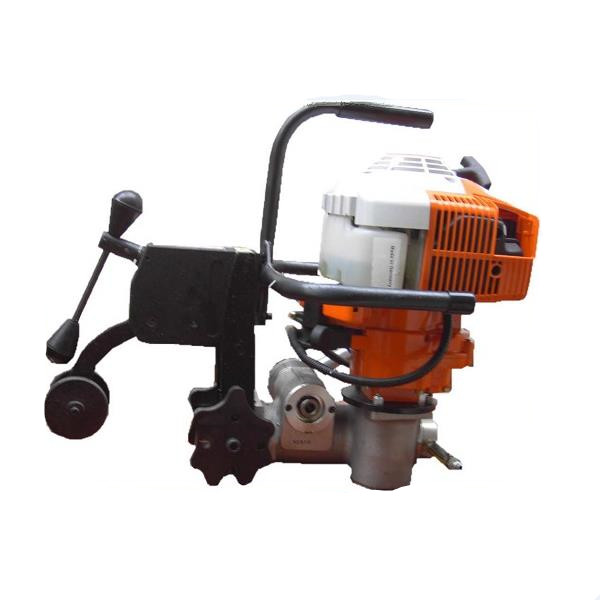

Light weight LQ-45 concrete rail sleeper bolt drilling machine
Product Introduction
Application:
LQ - 45 type concrete sleeper bolt drilled machine applicable to cutting concrete sleepers on vertical bolt, with need not sawing vertical bolt, and the advantages of direct can take out. Reduce the unnecessary waste and reduce the labor intensity of the workers, is the railway laying and maintenance of the ideal machine.
The company is ISO9001:2000 quality system authentication unit
Technology Parameters
Main Technical parameter:
1, motor power 1.4 kW
Komatsu two-stroke gasoline engine 1.42 kW
2, voltage: 220 v
3, motor speed: 2000 r/min
4, the largest hole diameter: 45 mm
5, bit type: diamond thin wall engineering bit phi 45 mm x 370 mm
6, stroke: 325 mm
7, drilling time: 50 s or less
8, the whole machine quality: 43 kg
The real details photo
