Home > Products > Good Condition 5 Ton Made Mini Rotating Jib Crane Prices For Lifting 10 Ton - LH

Good Condition 5 Ton Made Mini Rotating Jib Crane Prices For Lifting 10 Ton - LH

Click on the image to view the original image

Product：	views：10Good Condition 5 Ton Made Mini Rotating Jib Crane Prices For Lifting 10 Ton - LH
Branch：	LUHENG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:46

Product Details

Overview

Quick Details

Max. Lifting Height:: 2

Feature:: Truck Crane

Condition:: New

Application:: Workshop ports

Rated Loading Capacity:: 2~3T

Rated Lifting Moment:: 20T.M

Max. Lifting Load:: 5 Ton

Span:: 2

Place of Origin:: Shandong, China

Brand Name:: LUHENG

Model Number:: LH

Certification:: CE/ISO9001

Single line Lifting:: 500kg

Double-line Lifting:: 800kg

Rotation (continuous) with Brake:: 360° Manual

Line speed with No Load:: 3.6m/min single line

Power Requirements:: 12V DC 125 amps

Mounting Bolt Hole Pattern:: 170x170mms

Mounting Base:: 250x250x18mms

Switch Cable:: 4.2m

Net Weight of Crane:: 58.5KGS

Name:: Mini Crane

Warranty:: 1 Year

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 2000 Set/Sets per Month Mini Crane

Packaging & Delivery

Packaging Details: export standard package

Port: QINGDAO

Good Condition 5 Ton Made Mini Rotating Jib Crane Prices For Lifting 10 Ton - LH

Good Condition 5 Ton Made Mini Rotating Jib Crane Prices For Lifting 10 Ton - LH Good Condition 5 Ton Made Mini Rotating Jib Crane Prices For Lifting 10 Ton - LH Good Condition 5 Ton Made Mini Rotating Jib Crane Prices For Lifting 10 Ton - LH

Product Introduction

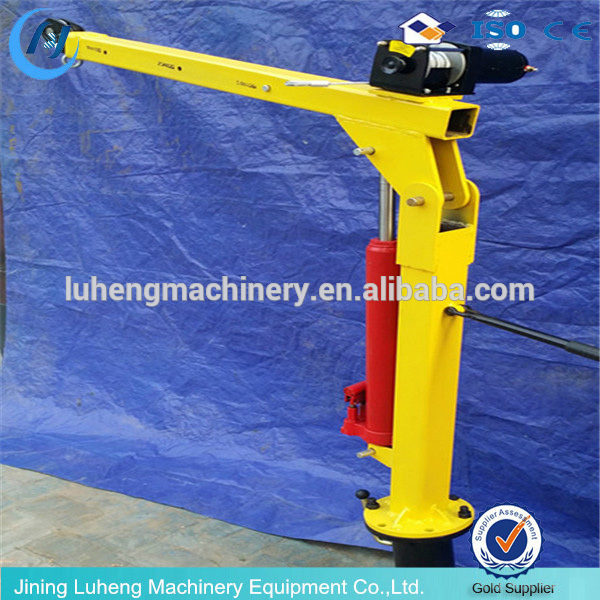

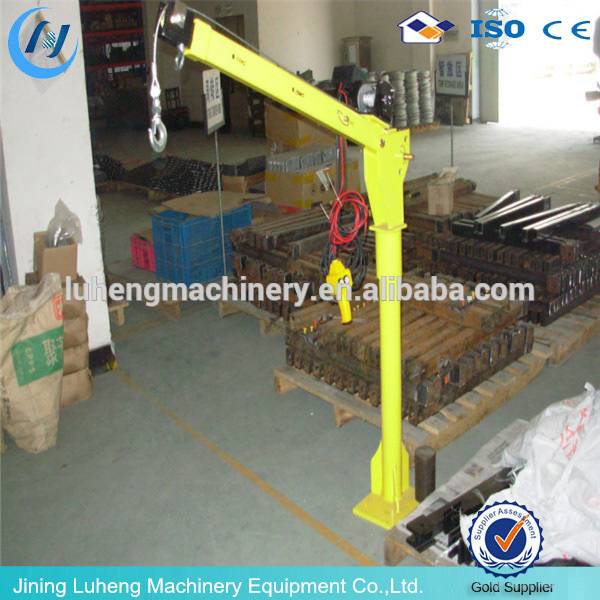

1. electric mini truck crane Features

Compact, easy to install

Max loading and unloading capacity:1000lbs

Simple to operate

360° Free manual rotation

All shafts and pins stainless steel

2. electric mini truck crane Appliance

1.vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place .

2.it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room .

3.HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object.

Technology Parameters

Single line Lifting Capacity(maximum)	500kg
Double-line Lifting Capacity(maximum)	800kg
Lifting Height Max.Std.(base to hook)	1940mm
Reach Max.(from center of rotation)	1490mm (see Figure 3)
Rotation (continuous) with Brake	360° Manual
Lifting Cable	4.8mm x 4.5m –1pc(for single-line lifting) 4.8mm x 5.5m—1pc(for double-line lifting)
Line speed with No Load	3.6m/min single line
Power Requirements	12V DC 125 amps
Switch Cable	4.2m
Mounting Base	250x250x18mms
Mounting Bolt Hole Pattern	170x170mms
Net Weight of Crane (LBS)	58.5KGS
