PZ-7 Dry Concrete Shotcrete Machine /20mm Aggregate Concrete Spraying Machine
Anti-explosion Dry Shotcrete Machine
Product Introduction
Used in shotcrete machine is widely used in engineering construction, mines, tunnels, culverts, subway, water and electricity engineering, underground
engineering and coal moors mine laneway shotcrete.
various types of industrial furnaces, lining refractory spraying forming or repair: all kinds of slope protection afforestation construction, soil and injection.
Through the rotor type is not binding material cavity, discharging unobstructed, efficient time-saving: elastic compensation compaction at four o "clock, good sealing effect, by little dust, parts, long service life: using high-speed low pressure vortex air transportation, overcome the bonding in the material conveying, blocking pipe and pulse from the problem such as folding, uniform material flow, continuous stable: new type of nozzle, the discharge elbow device, improve the effect of spray application of, less resilience, spray layer of high quality. Machine chassis can be assembled into tyred, slide rail wheel type and all kinds of gauge.
Technology Parameters
Model | PZ-3 | PZ-5 | PZ-6 | PZ-7 | PZ-9 | |
Production capacity | 3m3/h | 5m3/h | 6m3/h | 7m3/h | 9m3/h | |
The maximum transmission distance | 200m | 200m | 200m | 200m | 200m | |
Applicable material proportioning: cement/sand | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 | |
Applicable materials water-cement ratio | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | |
The biggest bone size | 10mm | 15mm | 15mm | 20mm | 20mm | |
Transporting pipe inner | 42 | 51 | 51 | 51/64 | 64 | |
Rotor block diameter | 350mm | 438mm | 438mm | 480mm | 480mm | |
Working pressure | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | |
blast consumption | 5-6m3/h | 7-8m3/h | 7-8m3/h | 9-10m3/h | 9-10m3/h | |
motor power | 4KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW | |
Level of voltage | 380V,440V,660V,1140, 50Hz/60Hz | |||||
The weight | 400Kg | 700Kg | 700Kg | 800Kg | 900Kg | |

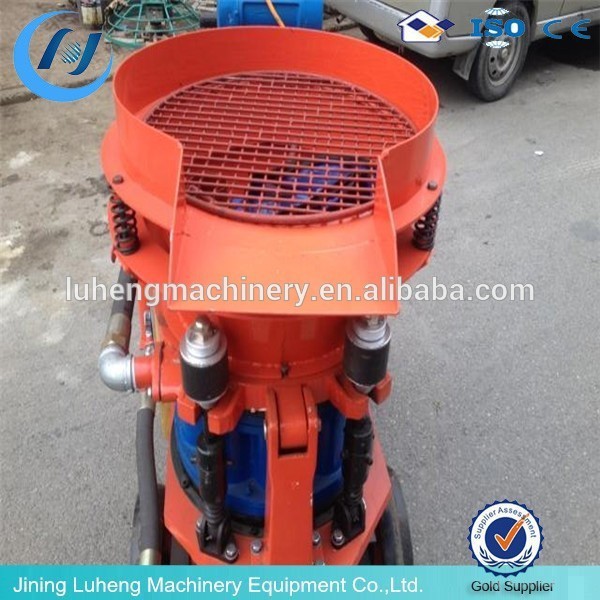

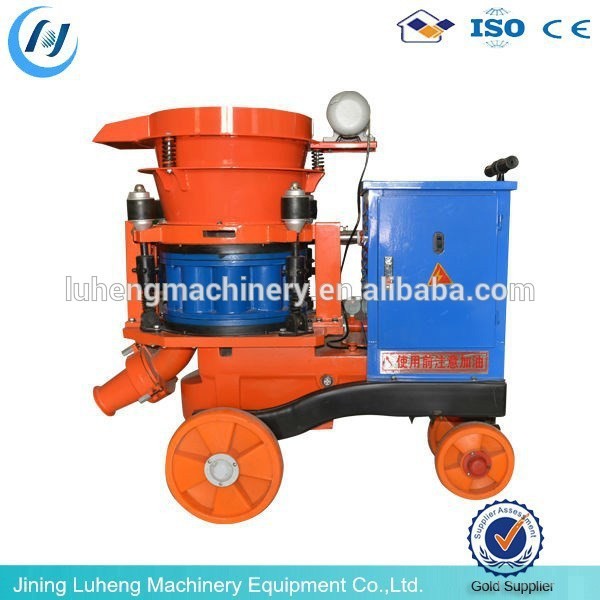

The real details photo
