Features:
1, no congestion, high efficiency.
2, significant energy saving, the international advanced level.
3, not winding, need specialist care.
4, a great deal of discharge power, motor automatic protection.
WQ Centrifugal Submersible portable Sewage Pump for sale//

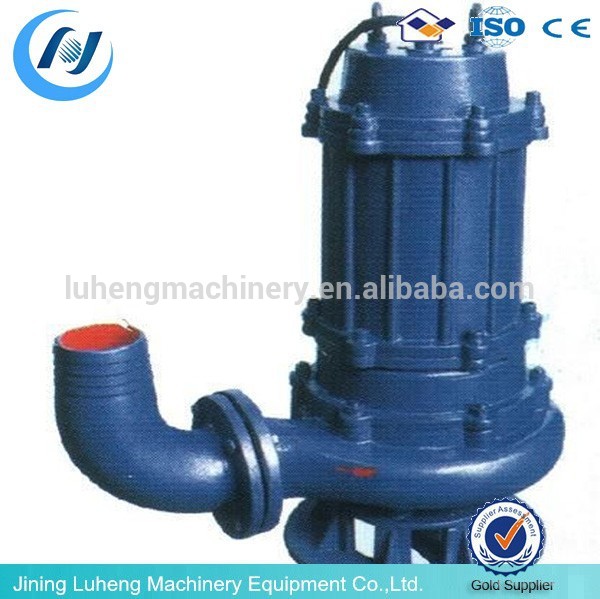

WQ Centrifugal Submersible Sewage Pump For Dirty water
Product Introduction
Products overview:
This pump is the introduction of high efficiency and energy saving, no foreign advanced experience of the blocked sewage pump, combined with the technology development of this unit, various performance indexes reached the level of national standard of similar products. Due to adopt unique single channel impeller, seal by using two sets of special material of carbide mechanical seal device.
The scope of application:
Apply to major advantage this pump can deliver a solid particles and sewage containing fiber materials, blockage, winding. Applicable to transmission of industrial wastewater and urban sewage, also can be used as a drain pump, paper pulp pump, a filter flush the cooling circulating pump, sewage treatment situation such as irrigation pump also can be used for pumping clean water. "ve diving type is particularly suited to often move or temporary urgent need, need not fixed installation, put on rubber hose, can be connected to the pipe will pump into the bottom straight. GW type pipe can make general high-rise buildings, transport the sewage pipe pressure, also applies to drain pump filter washing condenser circulating pump, etc. LW erect type can be mobile, can also be fixed installation, suitable for the construction of farmland irrigation and drainage, business process, sewage suction and lining, also can make paper pulp pump irrigation, etc.
Technology Parameters
| Model | rotate speed | Power | Rate | Model | rotate speed | Power | Rate |
| Calibre - flow - head | (r/min) | (kw) | (%) | Calibre - flow - head | (r/min) | (kw) | (%) |
| (mm)(m3/h)(m) | (mm)(m3/h)(m) | ||||||
| 25-8-22 -1.1 | 2825 | 1.1 | 38.1 | 150-200-30-37 | 1480 | 37 | 70 |
| 32-12-15 -1.1 | 2825 | 1.1 | 40 | 200- 300-7-11 | 970 | 11 | 73 |
| 40-15-15-1.5 | 2840 | 1.5 | 45.1 | 200- 250-11-15 | 970 | 15 | 74 |
| 40- 15-3-2 .2 | 2840 | 2.2 | 48 | 200- 400-10-22 | 1470 | 22 | 76 |
| 50- 20-7-0 .75 | 1390 | 0.75 | 54 | 200-400-13-30 | 1470 | 30 | 73 |
| 50-10-10 -0.75 | 1390 | 0.75 | 56 | 200-250-15-18.5 | 1470 | 18.5 | 72 |
| 50-20-15-1.5 | 2840 | 1.5 | 55 | 200-300-15-22 | 1470 | 22 | 73 |
| 50-15-25-2.2 | 2840 | 2.2 | 56 | 200-250-22-30 | 1470 | 30 | 71 |
| 50-18-30-3 | 2880 | 3 | 58 | 200-350-25-37 | 1480 | 37 | 75 |
| 50-25-32-5.5 | 2900 | 5.5 | 53 | 200-400-30-55 | 1480 | 55 | 70 |
| 50-20-40-7.5 | 2900 | 7.5 | 55 | 200-350-40-75 | 980 | 75 | 70 |
| 65-25-15-2.2 | 2840 | 2.2 | 52 | 250- 600-9-30 | 980 | 30 | 74 |
| 65-37-13-3 | 2880 | 3 | 55 | 250-600-12-37 | 1480 | 37 | 78 |
| 65-25-30-4 | 2890 | 4 | 58 | 250-600-15-45 | 1480 | 45 | 75 |
| 65-30-40-7.5 | 2900 | 7.5 | 56 | 250-600-20-55 | 1480 | 55 | 73 |
| 65-35-50-11 | 2930 | 11 | 60 | 250-600-25-75 | 1480 | 75 | 73 |
| 65-35-60-15 | 2930 | 15 | 63 | 250-800-12-45 | 1480 | 45 | 76 |
| 80- 40-7-2 .2 | 1420 | 2.2 | 52 | 300-500-15-45 | 980 | 45 | 70 |
| 80-43-13-3 | 2880 | 3 | 50 | 300-800-15-55 | 980 | 55 | 73 |
| 80-40-15-4 | 2890 | 4 | 57 | 300-600-20-55 | 680 | 55 | 75 |
| 80-65-25-7.5 | 2900 | 7.5 | 56 | 300-800-20-75 | 980 | 75 | 78 |
| 100- 80-10-4 | 1440 | 4 | 62 | 300-950-20-90 | 980 | 90 | 80 |
| 100- 110-10-5 .5 | 1440 | 5.5 | 66 | 300-1000-25-110 | 980 | 110 | 82 |
| 100-100-15-7.5 | 1440 | 7.5 | 67 | 350-1100-10-55 | 980 | 55 | 84.5 |
| 100-85-20-7.5 | 1440 | 7.5 | 68 | 350-1500-15-90 | 980 | 90 | 82.5 |
| 100-100-25-11 | 1460 | 11 | 65 | 350-1200-18-90 | 980 | 90 | 83.1 |
| 100-100-30-15 | 1460 | 15 | 66 | 350-1100-28-132 | 740 | 132 | 86.2 |
| 100-100-35-18.5 | 1470 | 18.5 | 65 | 350-1000-36-160 | 740 | 160 | 78.5 |
| 125-130-15-11 | 1460 | 11 | 62 | 400-1500-10-75 | 980 | 75 | 82.1 |
| 125-130-20-15 | 1460 | 15 | 63 | 400-2000-15-132 | 740 | 132 | 85.5 |
| 150- 145-9-7 .5 | 1440 | 7.5 | 63 | 400-1700-22-160 | 740 | 160 | 82.1 |
| 150-180-15-15 | 1460 | 15 | 65 | 400-1500-26-160 | 740 | 160 | 86.5 |
| 150-180-20-18.5 | 1470 | 18.5 | 75 | 400-1700-30-200 | 740 | 200 | 83.5 |
| 150-180-25-22 | 1470 | 22 | 76 | 400-1800-32-250 | 740 | 250 | 82.1 |
| 150-130-30-22 | 1470 | 22 | 75 | 400-1760-7.5-55 | 540 | 55 | 82.1 |
| 150-180-30-30 | 1470 | 30 | 73 | 500-2500-10-110 | 740 | 110 | 82 |

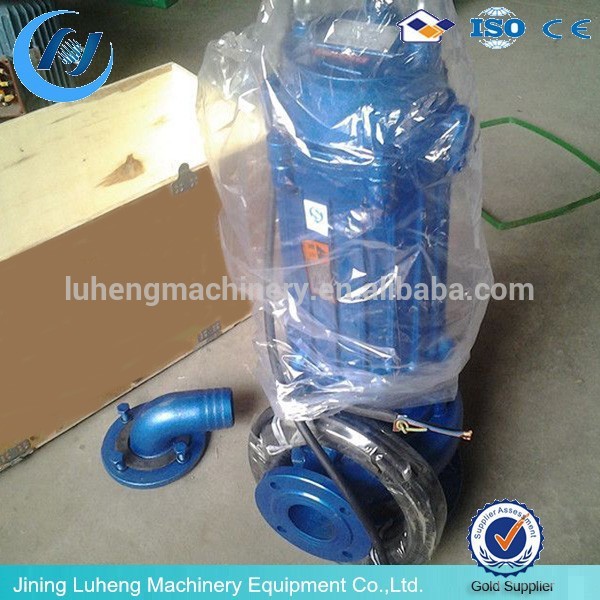

The real details photo
