High performance Liquefied Gas Pump Using for filling cylinders for sale

Click on the image to view the original image

Product：	views：8High performance Liquefied Gas Pump Using for filling cylinders for sale
Branch：	LUHENG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:46

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: LUHENG

Model Number:: YQB

Structure:: Gear Pump

Usage:: Oil

Application:: Metering, lpg gas

Power:: Electric

Fuel:: Diesel

Pressure:: High Pressure

Standard or Nonstandard:: Standard

Theory:: Rotary Pump

Inlet:: 1.5"

Outlet:: 1"

Power Of Motor:: 15KW

warranty:: 1year

Max./Min. Temperature:: -32°C~107°C

Max. Working Pressure:: 27.6 Bar(400PSI)

Speed:: 60Hz,3450 RPM or 50Hz 2880 RPM

Supply Ability

Supply Ability:: 1000 Set/Sets per Month

Packaging & Delivery

Packaging Details: standard export packing

Port: QINGDAO TIANJIN

High peformance Liquefied Gas Pump Using for filling cylinders for sale

promotion!!! Liquefied Gas Pump Using for filling cylinders with best price

Product Introduction

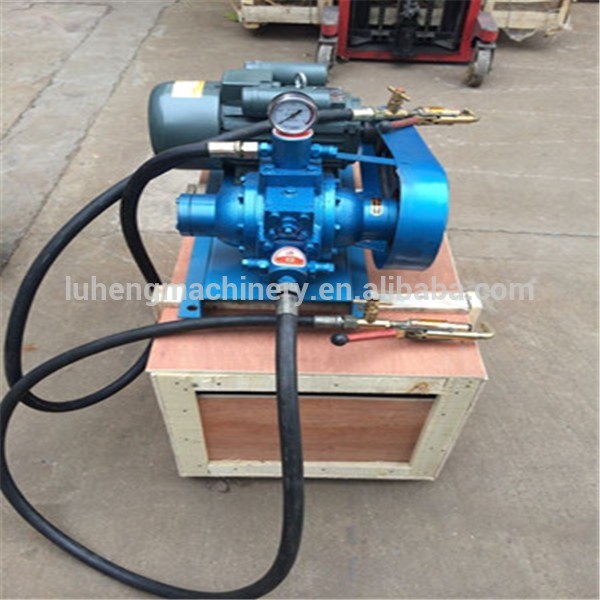

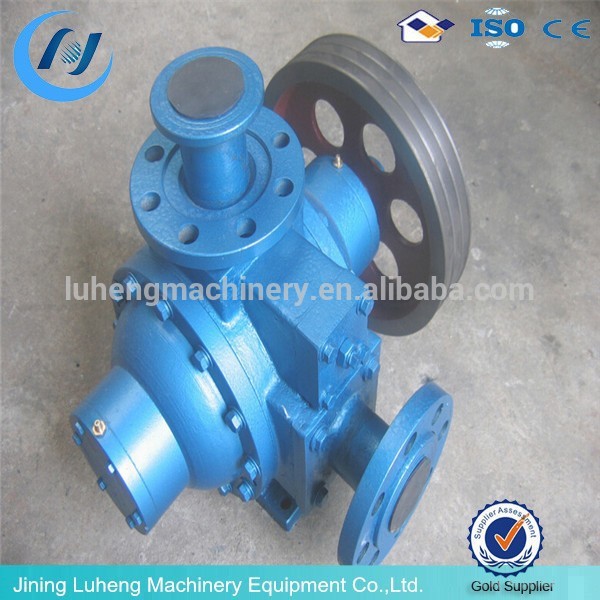

LPG Pump, for high differential pressure application using, for underground and aboveground tank application. Liquefied oil Pump LPG Pump

It is commonly found in the LPG industry because its high pumping efficiencies, Long life, ease of maintenance. It"s housing and rotors are constructed of ductile iron for high strength, the vanes are self-adjusting for wear.

It can handle small amounts of vapor formed at the pump suction. V-belt and direct-drive mounting available for choice

Technology Parameters

1. GB standard

2.semi-automatic device

3. transfer lpg from cylinder to cylinder

4.flow quantity: about 5-10L/min

5. differential pressure: 0.1-0.5Mpa

6. working pressure: 1.6Mpa

7.transfer speed: 900r/min

8.power: 3kw

9.voltage: 380V/220V/110V with three phase

10.Can be modified with more connectors to improve transfer efficiency
