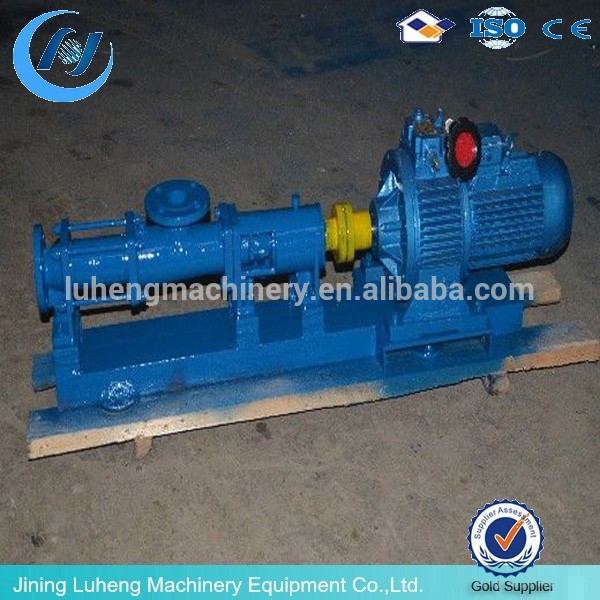

G type mono screw pump with no pulse/Mud pump/heavy oil pump
Single screw pump slurry pump sludge pump
Product Introduction
The series G of Single Screw Pump is a rotating mesh and positive displacement pump.
The main working parts are the Eccentric Screw ( Rotor ) and the Bush fixed ( Stator ).
With the special geometry of these two parts, dividing the cavity into two independent sealed chambers.Fluids flow to the direction of axis with low flow rate, and the volume and pressure remain stability, so it will not have swirl and stir inside.
Single Screw Pump of series G is a kind of Gerneral Pump. Its speed can be switched freely and its output ratedpressure can be increased by its level. The pumps can be widely used in many different areas.
Technology Parameters
| Model | caliber(mm) | Rotate speed(r/min) | Flow(t/h) | Power(kw) |
| G10-1 | 20 | 1400 | 0.5 | 0.37 |
| G15-1 | 25 | 960 | 1 | 0.55 |
| G20-1 | 32 | 960 | 1.5 | 0.75 |
| G25-1 | 32 | 960 | 2 | 1.1 |
| G30-1 | 40 | 960 | 3 | 1.5 |
| G35-1 | 50 | 960 | 5 | 2.2 |
| G40-1 | 50 | 960 | 7 | 3 |
| 50 | 720 | 5.5 | 2.2 | |
| G45-1 | 50 | 960 | 9 | 4 |
| 50 | 720 | 7 | 3 | |
| G50-1 | 65 | 960 | 13 | 5.5 |
| 65 | 720 | 10 | 4 | |
| G55-1 | 65 | 960 | 18 | 7.5 |
| 65 | 720 | 13 | 5.5 | |
| G65-1 | 80 | 720 | 30 | 11 |
| G85-1 | 100 | 720 | 60 | 16 |

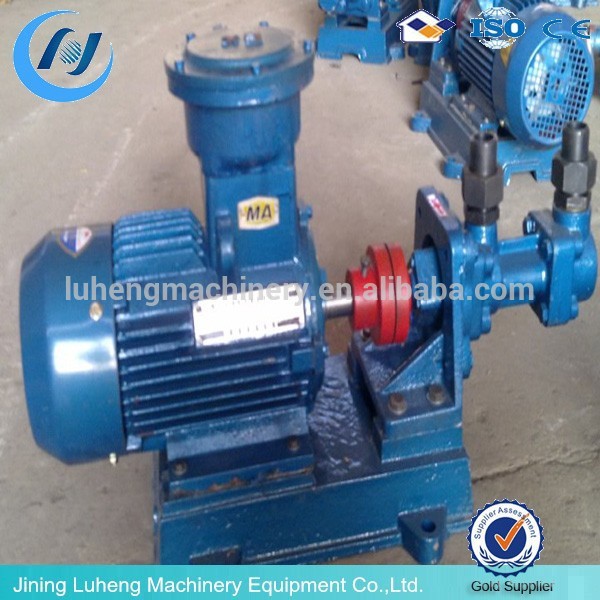

The real details photo
